10A 250VAC double pedal plastic foot switch

● Kinds of shell’s material for choice,such as engineering plastic,steel panel,aluminium alloy,etc;
● Metal shell use the stregenthening to reast the surfase,bears the impact,the wearability,thermostable;
● Cable lock-in jacket is made for the cable coming out and it is waterproof,grease proofing;
● Switch bottom is equipped with the rubber pad,for skidproof;
● Widely used for control in industrial automation equipments,transport,pressing,medical treatment,test and etc.

◆ Model & Meanings

◆Basic parameters

Contact resistance 25mΩ(initial value)
Insulation resistance 100MΩ(Above)DC500V
Withstand voltage ≥2000VAC
Mechanical Life 1,000,000above
Electrical Life 100,000above
Operating temperature -20~+70℃
Operating Humidity ≤85%

◆Contact Forms

◆Application attentions

● According to the difference of load and current value,rated load should be taken note.Current value of this serise is 10A and 15A;
● When transporting and moving,pls take note of the short circuit or open circuit may happen in internal wiring;
● Please take note of the level of protection when used in water,oil and bug dust.This series has protective type and unprotective type;
● The immediate cause for broken is stress and attack,please pay attention;
● Warning mark’Danger! High Voltage!’ and ’Take note!’ remind us pay attention to personnel safety and correctly operation.

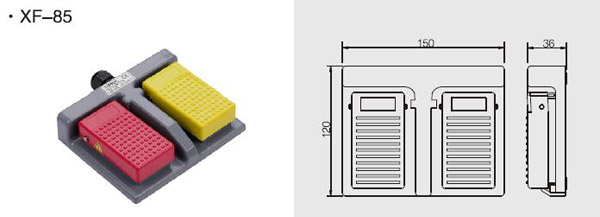

◆Dimensions/Specification

Material ABS(Plastic)
Inner Switch XV-15-1C25
Rating Load 10A/250VAC
Contact Form 1A×2
Outgoing Cable 0.5mm2×4(Wire)×0.25m
Protection Degree IP54
