XZ5 Limit Switch XZ-5/108
10A 250V adjustable roller arm type metal limit switch
● Strong Zinc cast outer shell,strong structure and high mechanical strength;
● Preventing oil,water and pressure;
● Double way switch,double spring inner switch;
● Variety of levers;
● Widely used in Mechanical equipment,automatic machine,and instrument,electro motion tool etc.
◆ Model & Meanings
◆Mounting Holes & Contact Form
◆Product Structure
◆Specification
| Item | Data | |
| Rating load | 10A/250VAC | |
| Operating speed | 1mm-50cm/s | |
| Operating frequency | Mechanical | 120times/min |
| Electrical | 30times/min | |
| Insulation resistance | 100MΩ(Above)DC500V | |
| Contact resistance | 25MΩ(initial value) | |
| Withstand voltage | Non-connection wire | 1000VAC |
| Every terminal | 1500VAC | |
| Vibration | Misoperation | 10-55Hz Amplitude 1.5mm |
| Impact | Durable | 1000m/s2 |
| Misoperation | 300m/s2 | |
| Life | Electrical | 100,000above |
| Mechanical | 1,000,000above | |
| Protection degree | IP66 | |
| Operating temperature | -10~+80℃ | |
| Operating humidity | ＜85% | |

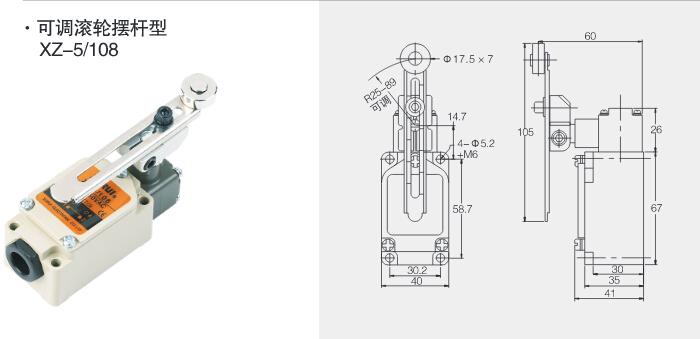

◆Dimensions/Operating Characteristics
| OF max. | 1400g(13.72N) |
| RF min. | 220g(2.13N) |
| PT max. | 30° |
| OT min. | 25° |
| MD max. | 20° |
| TT | 55° |
