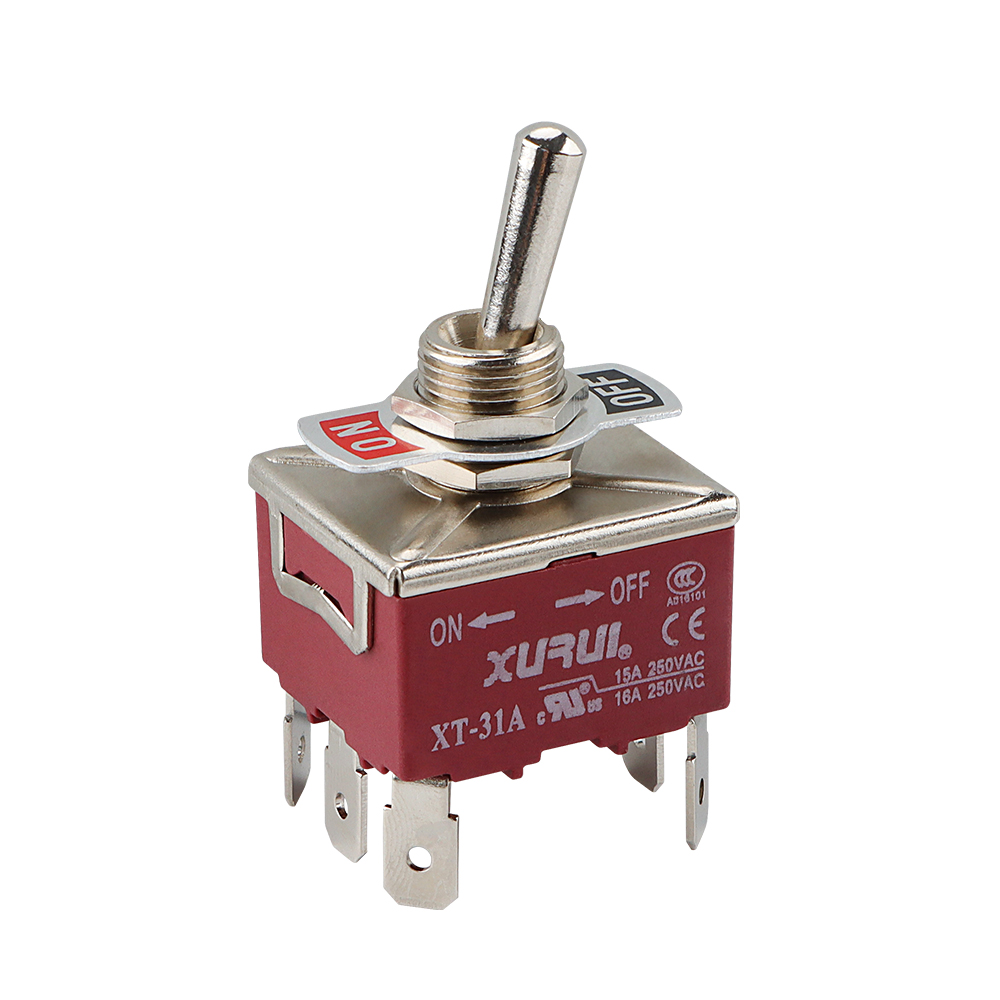

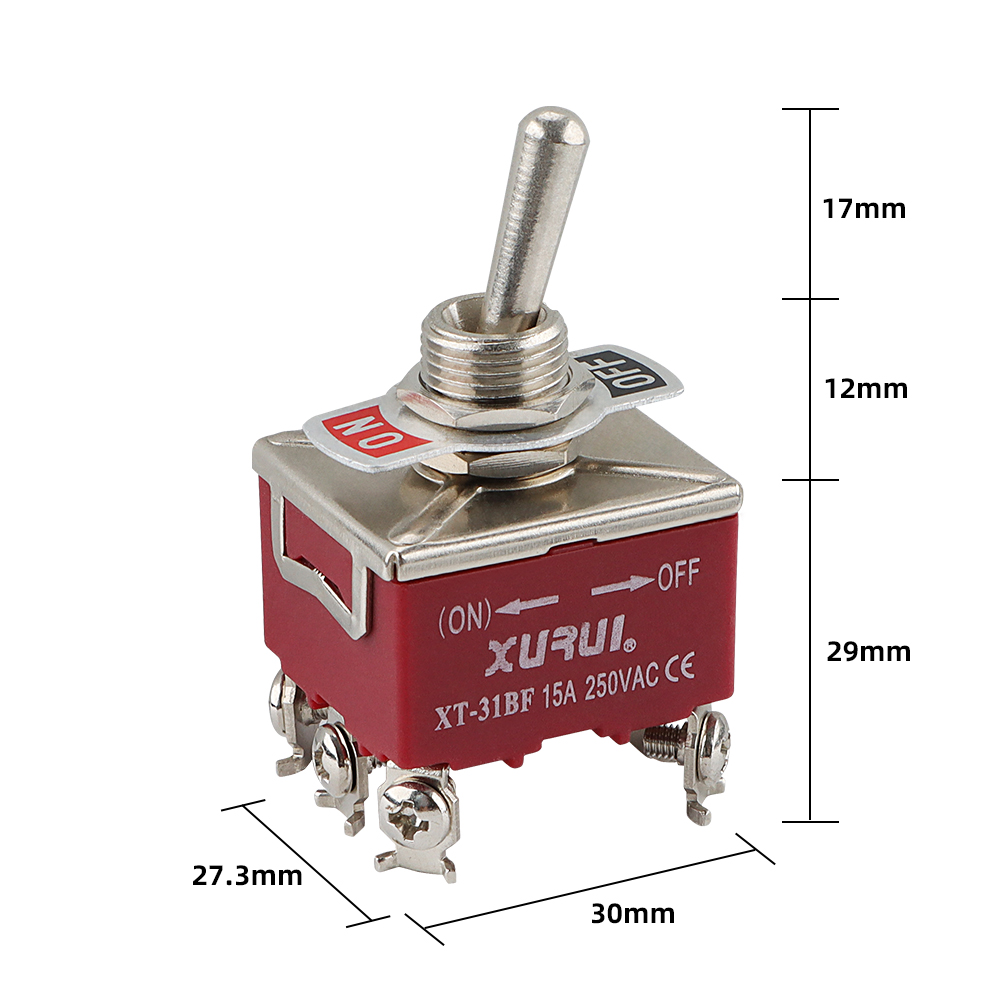

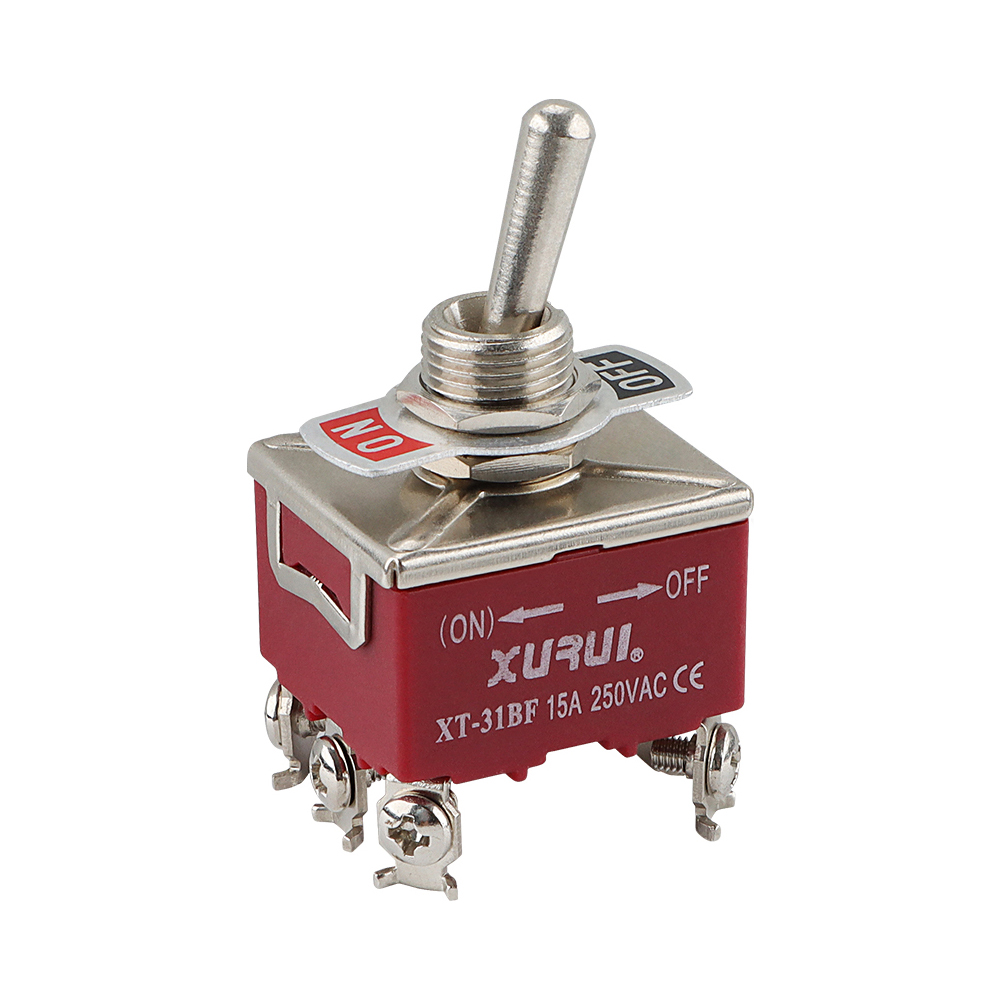

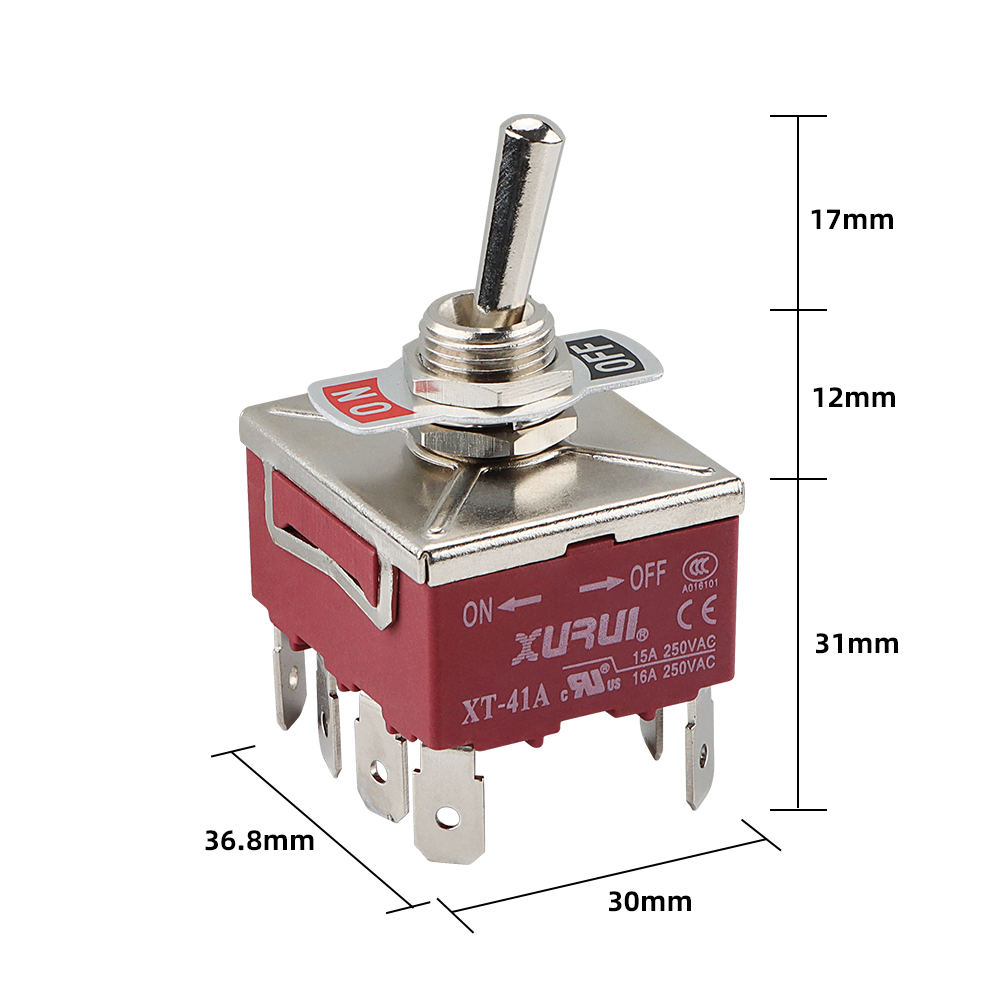

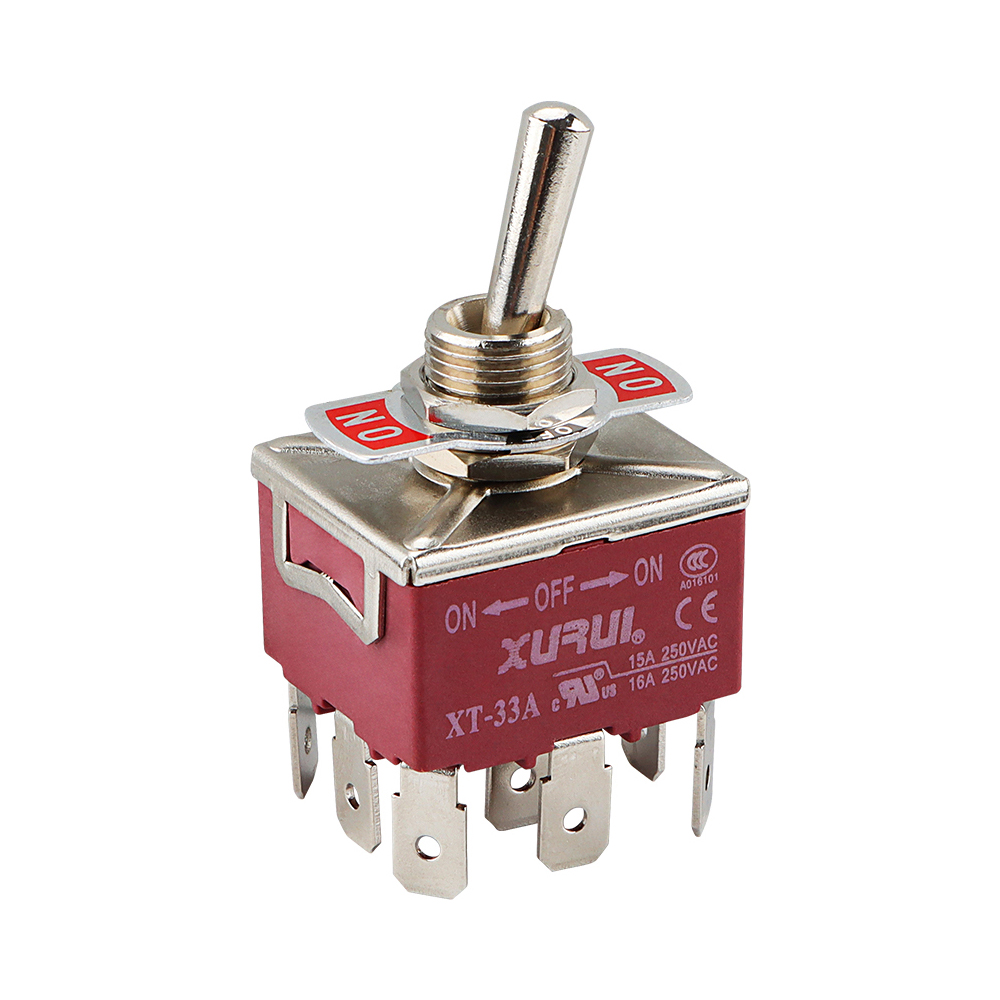

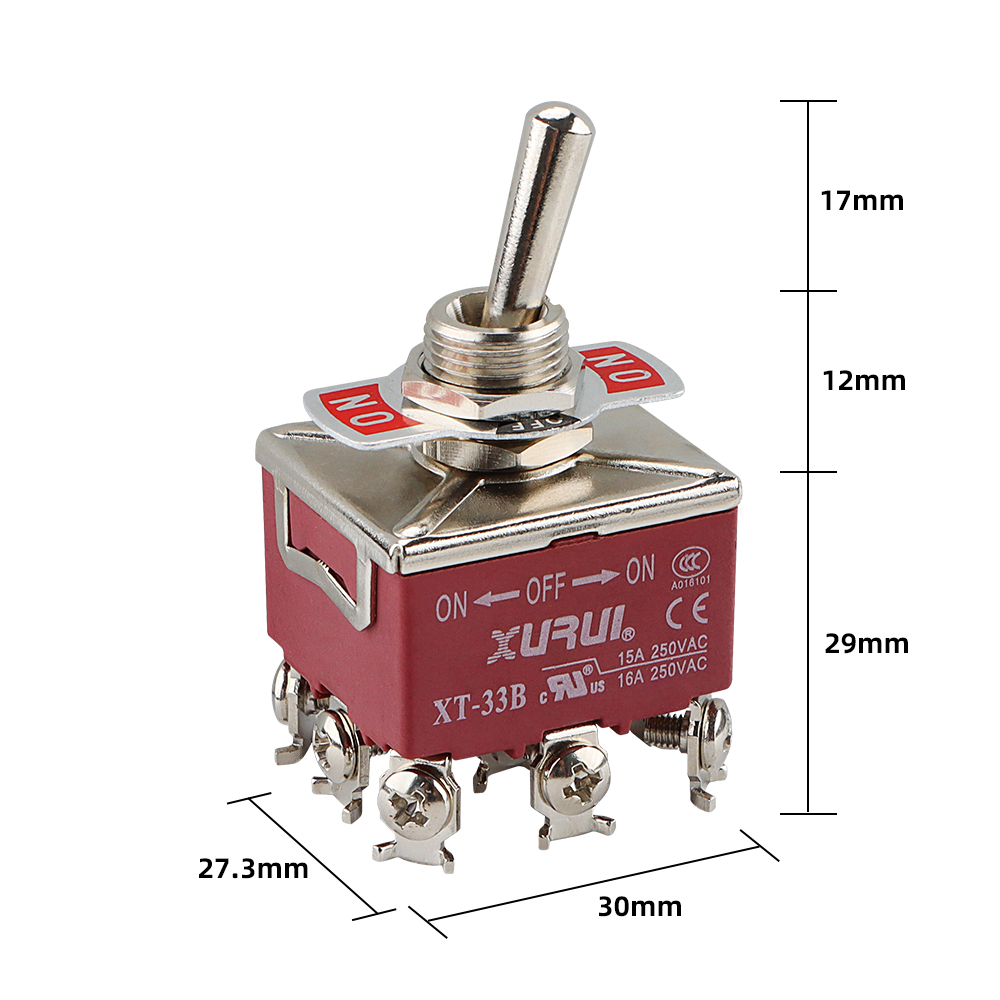

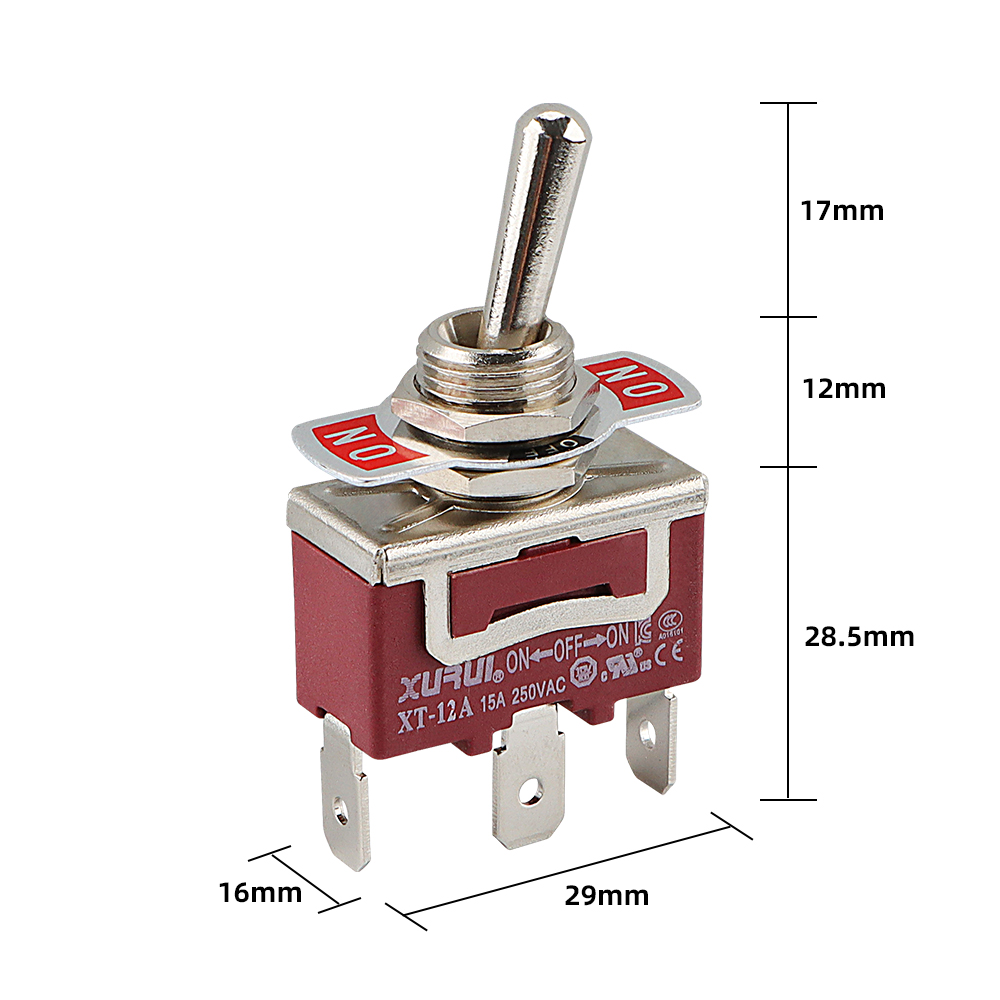

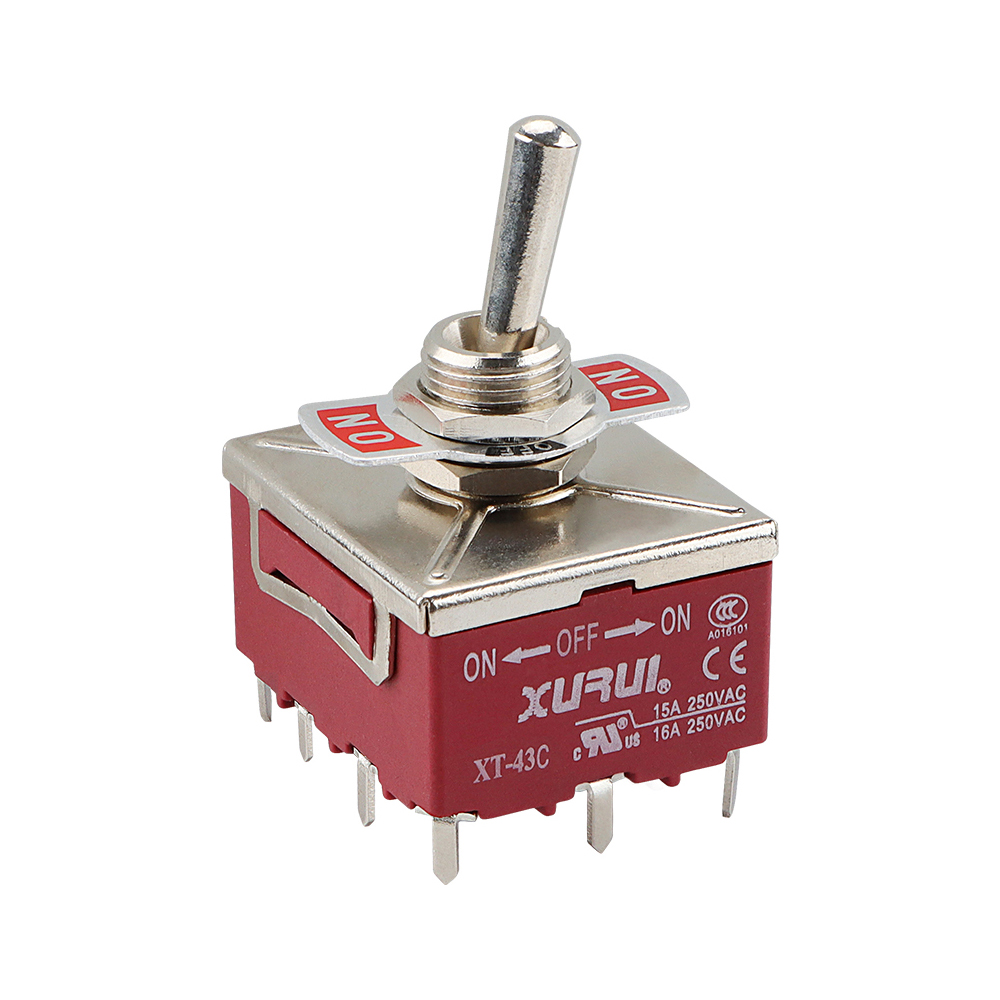

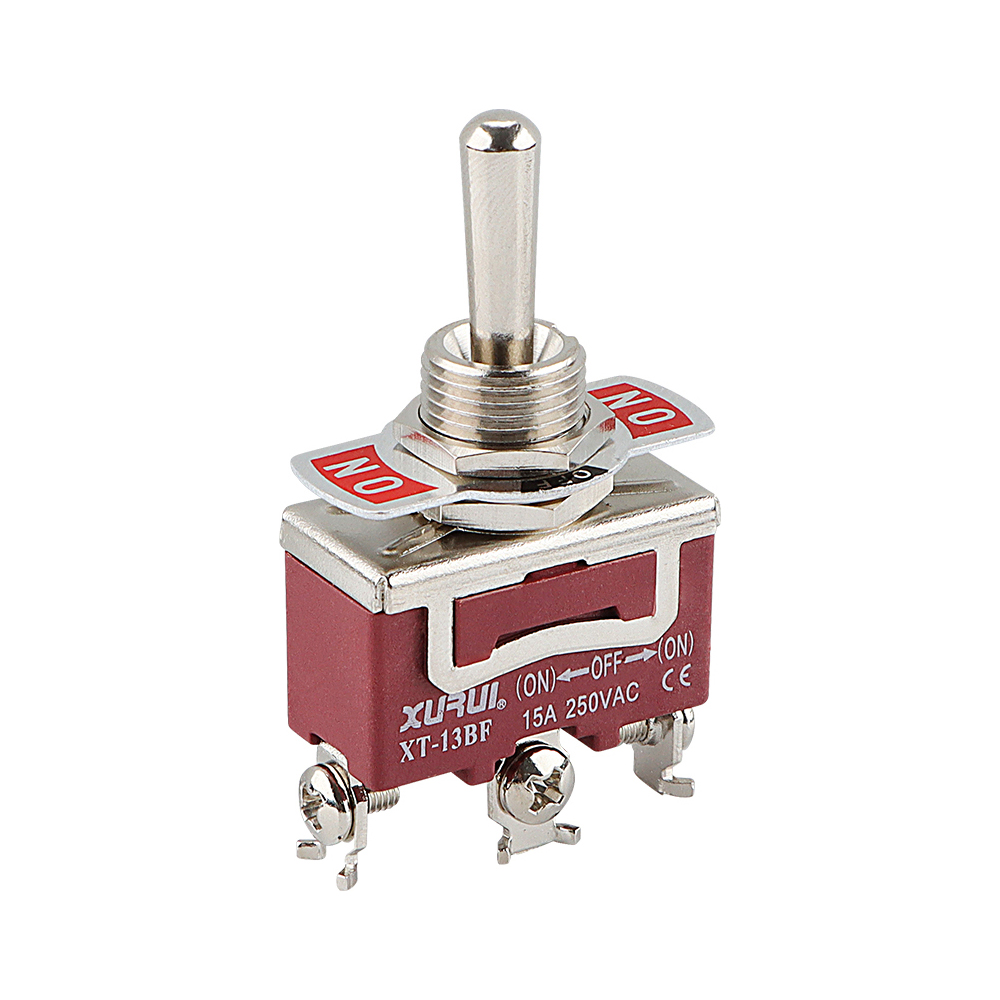

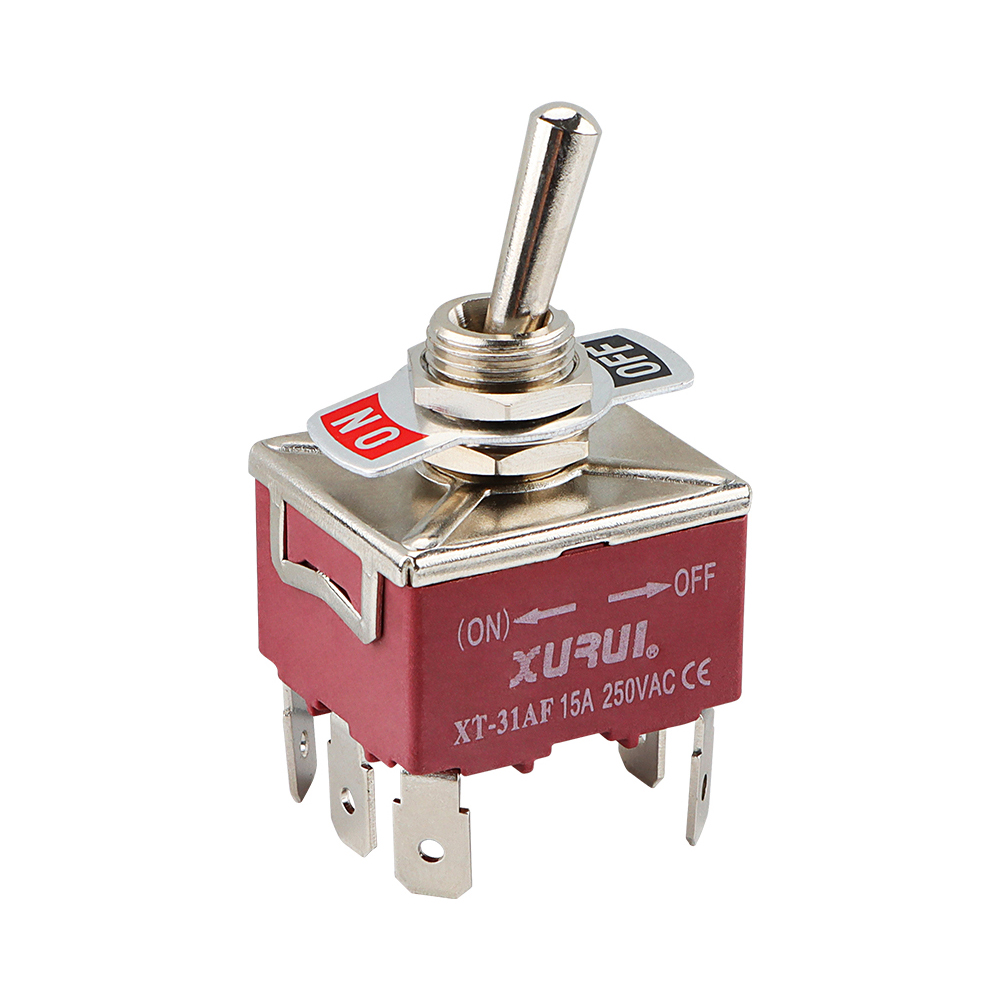

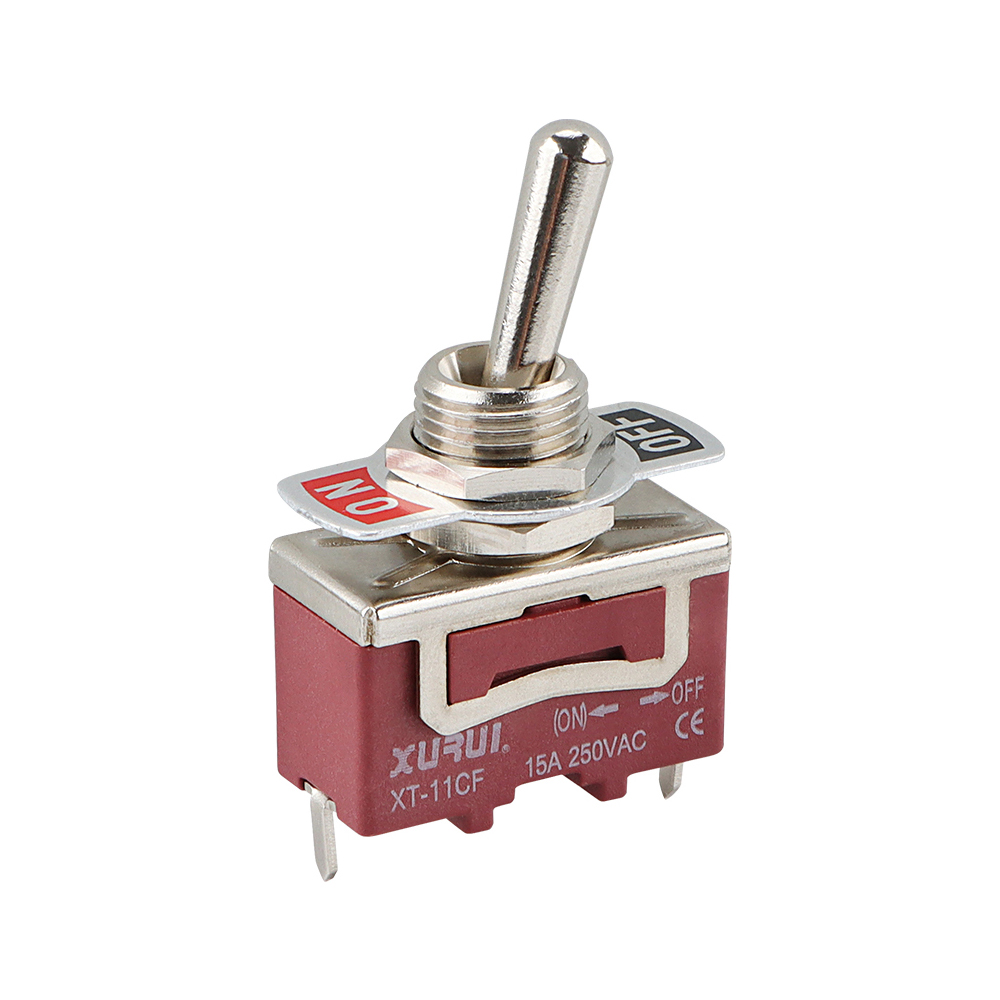

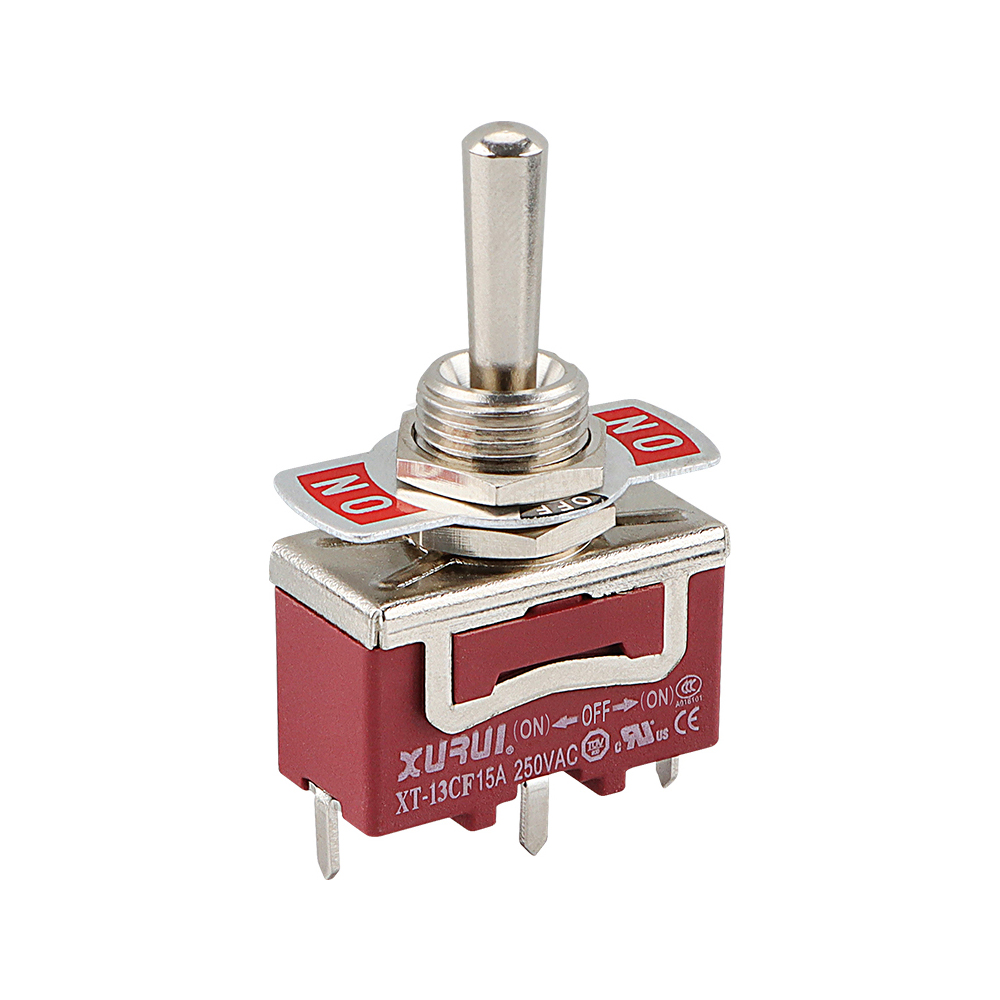

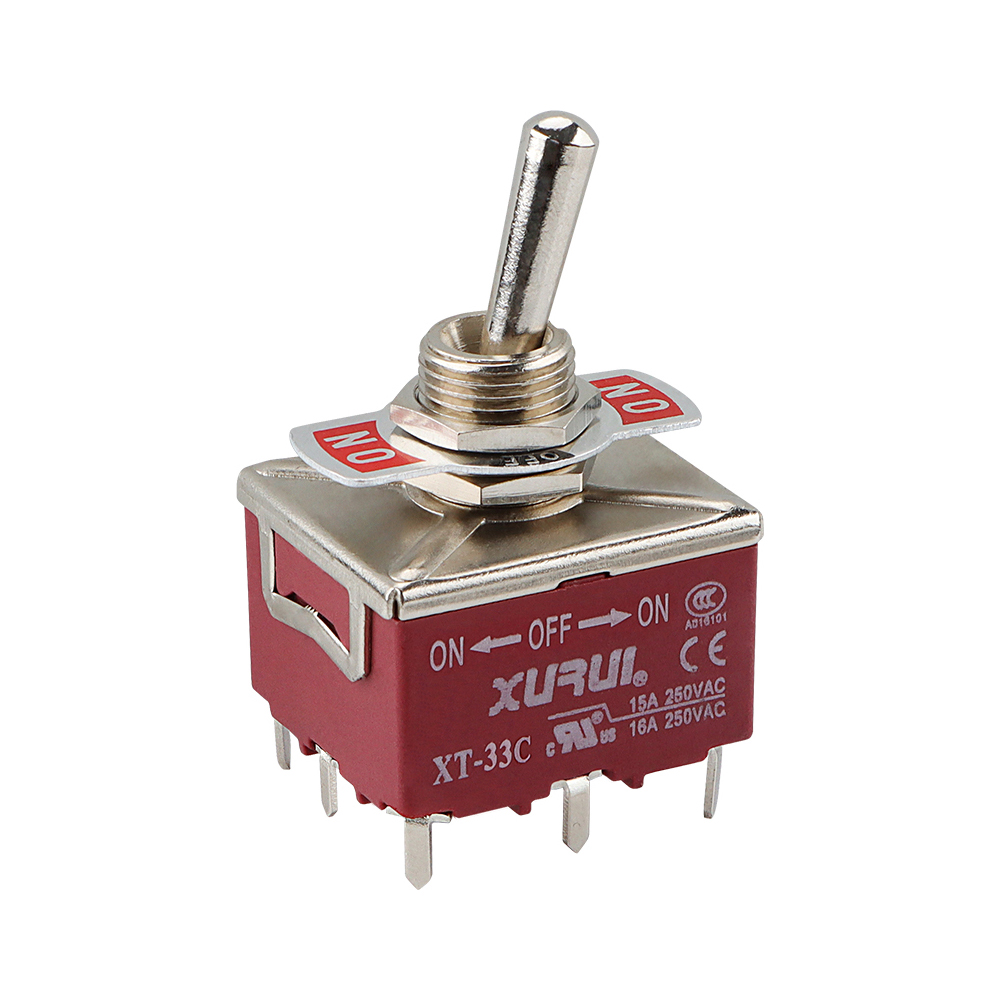

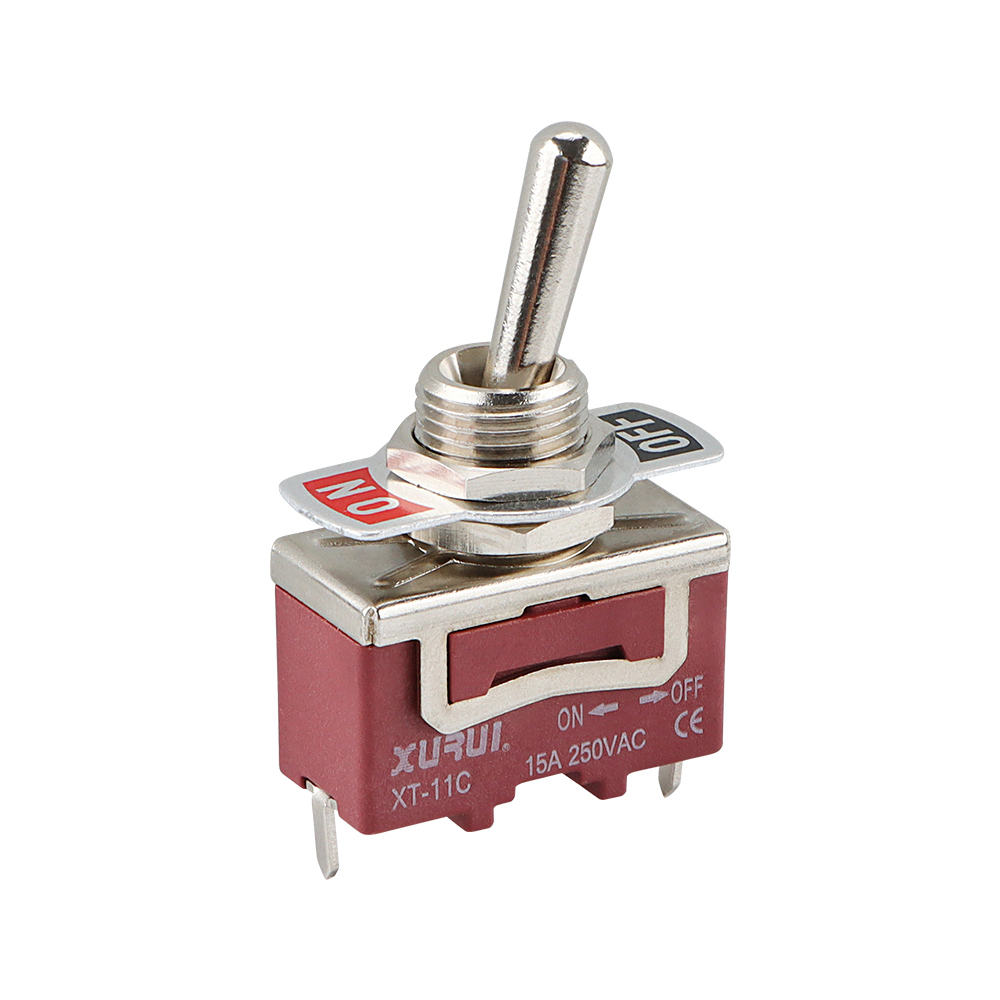

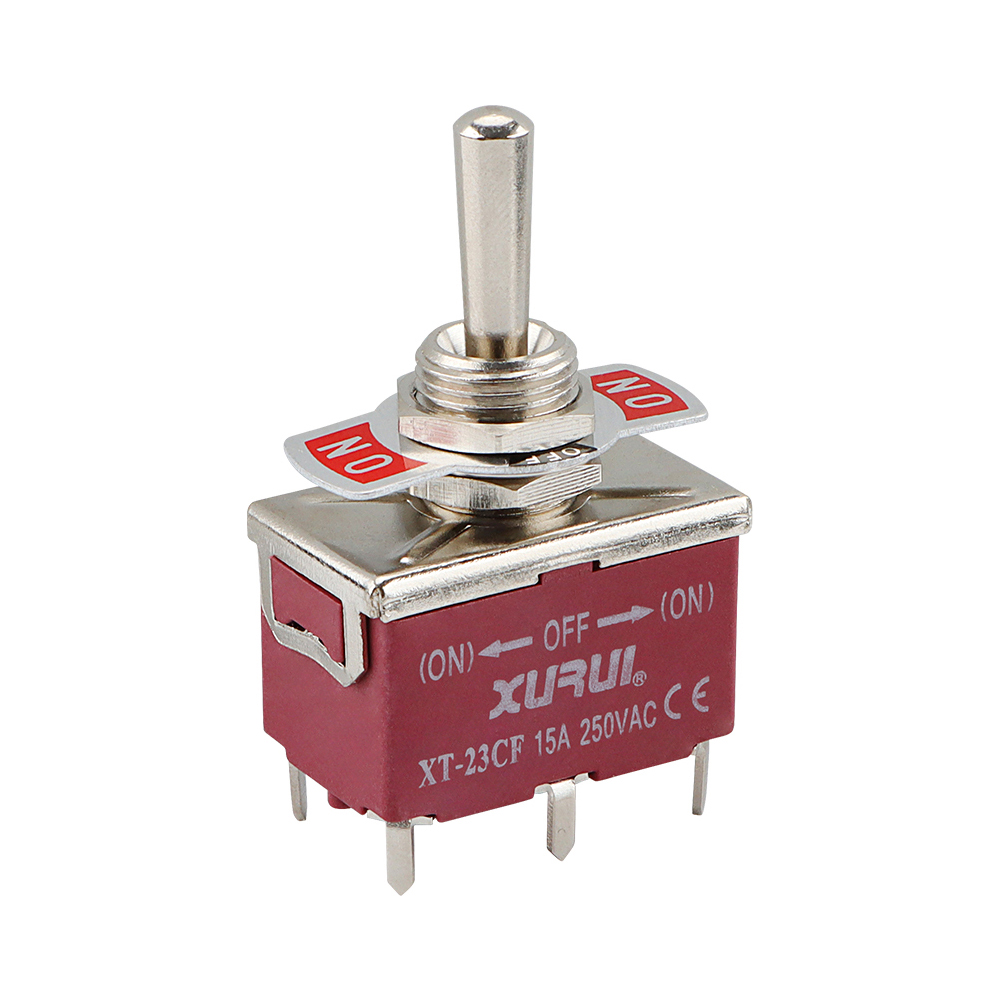

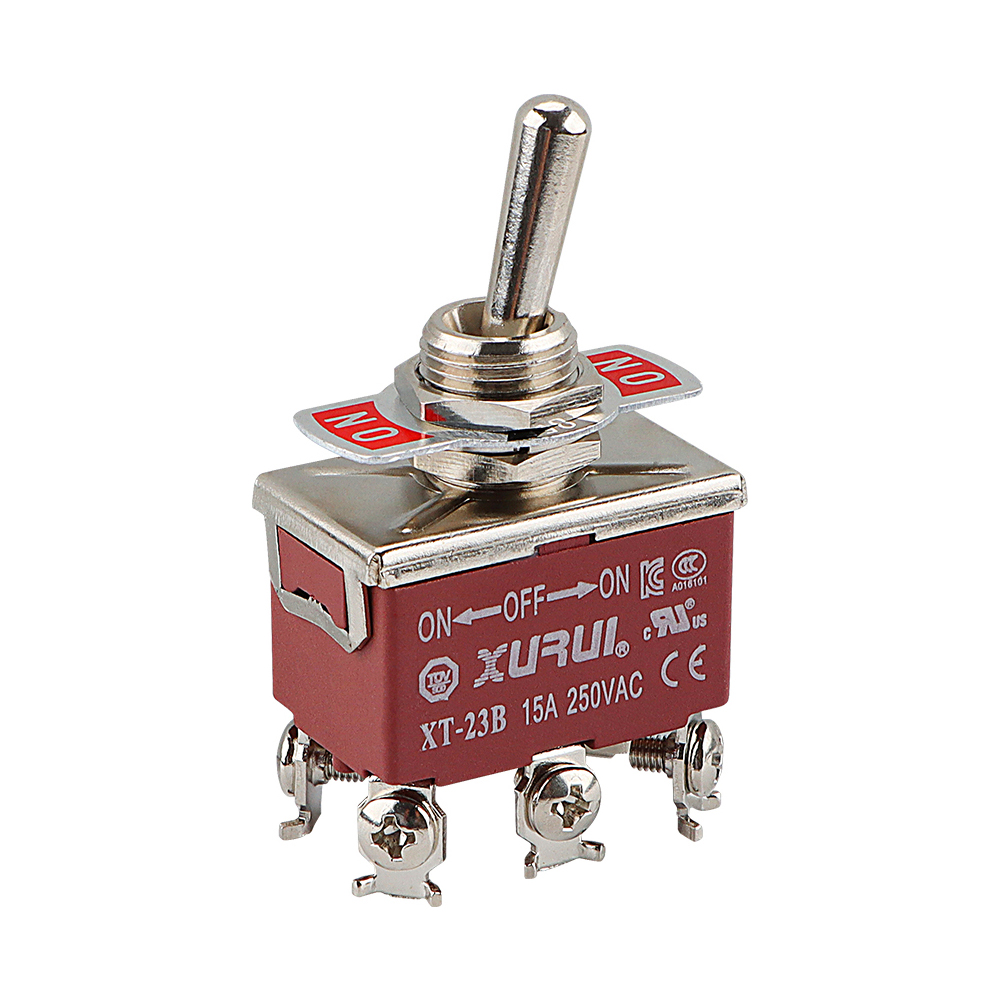

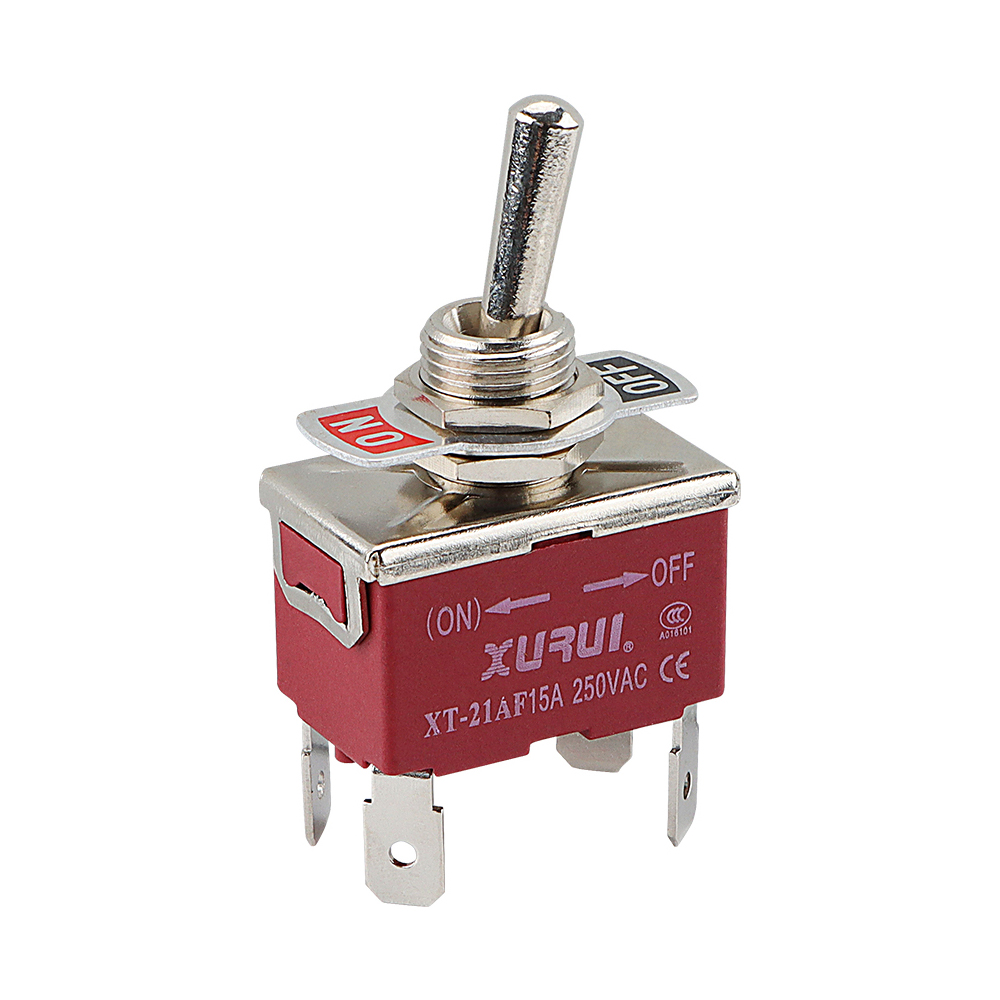

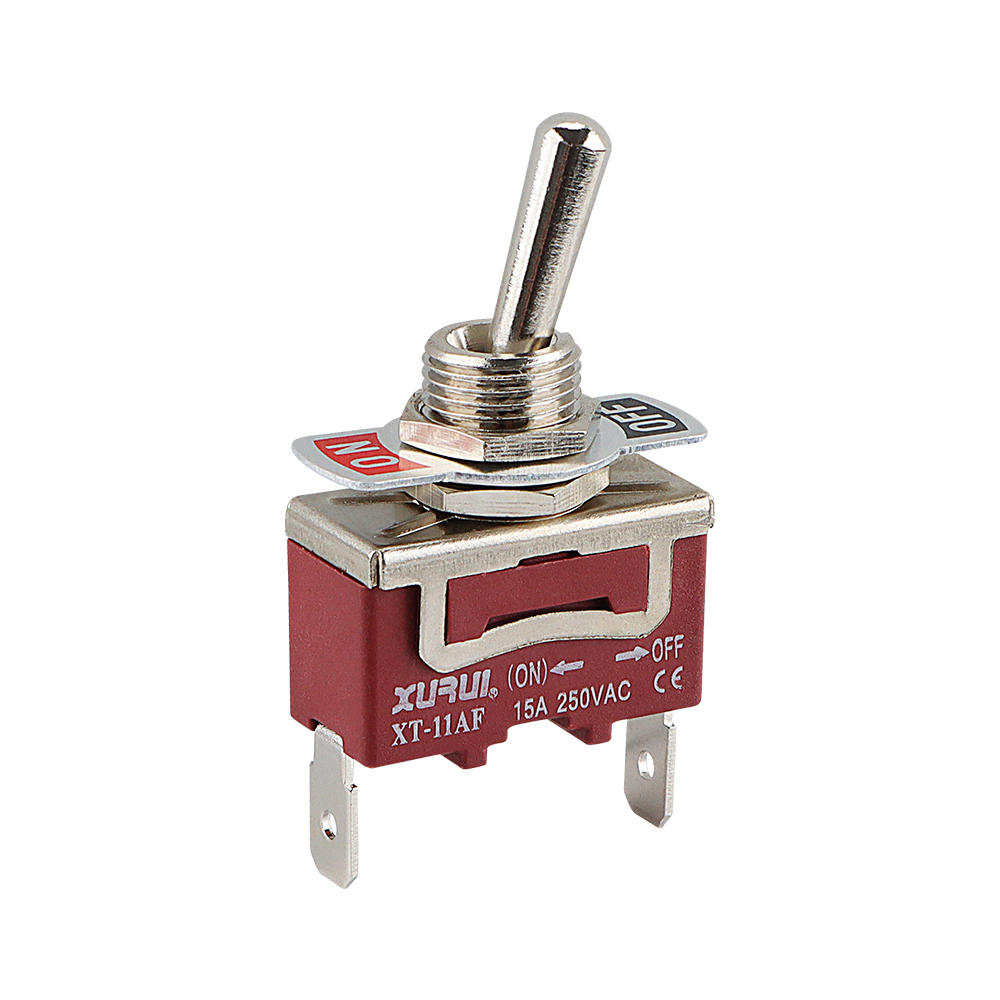

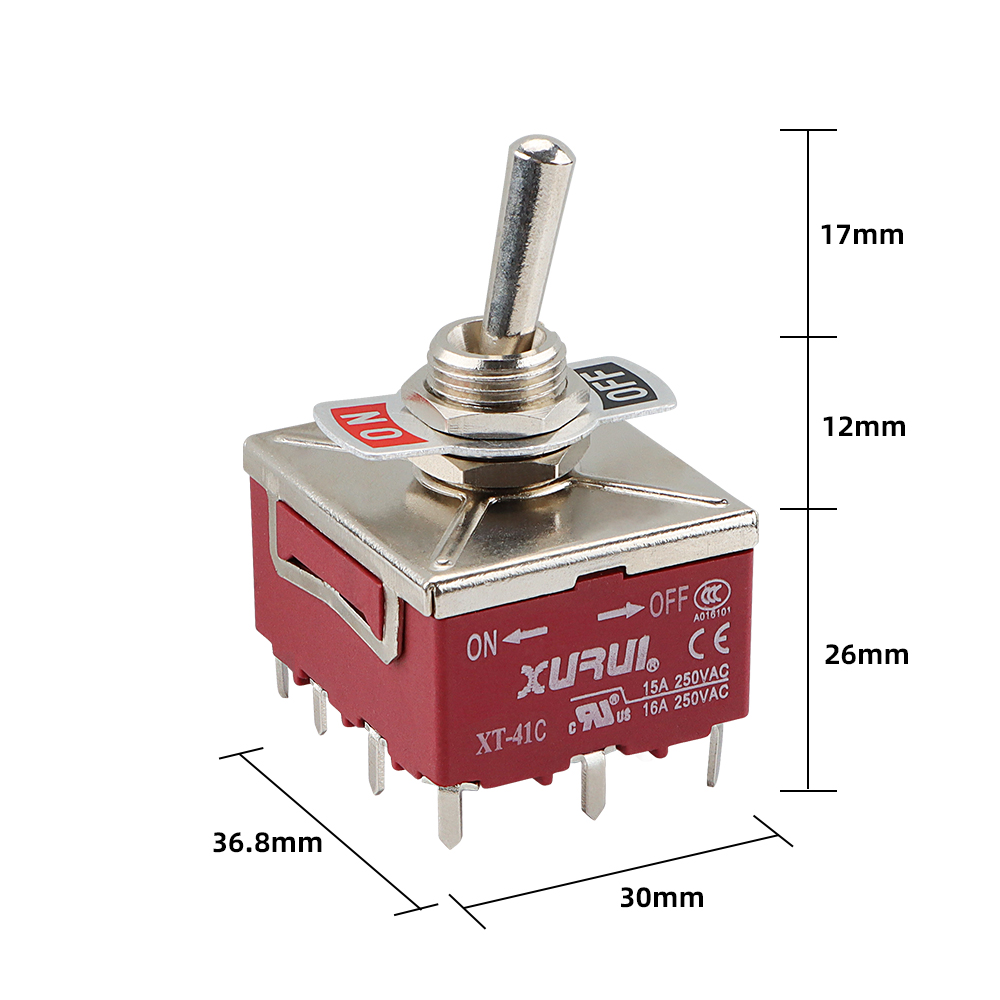

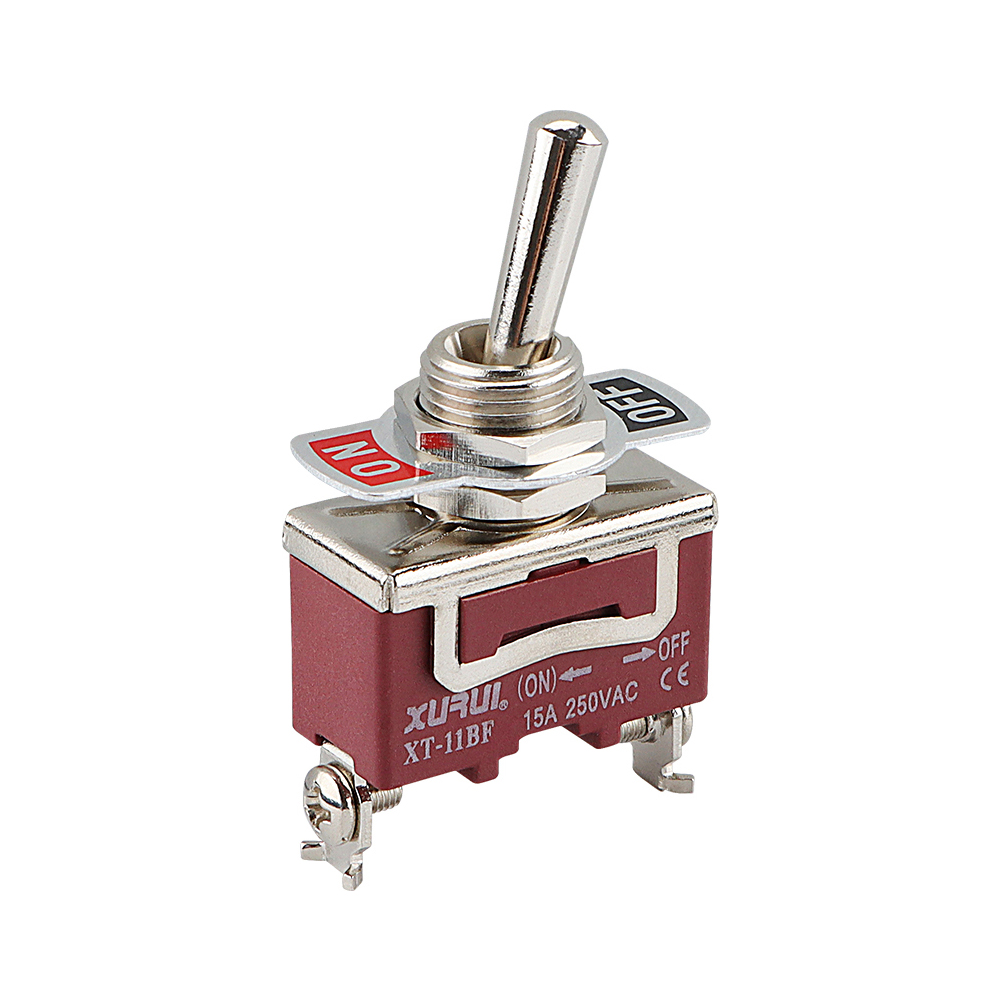

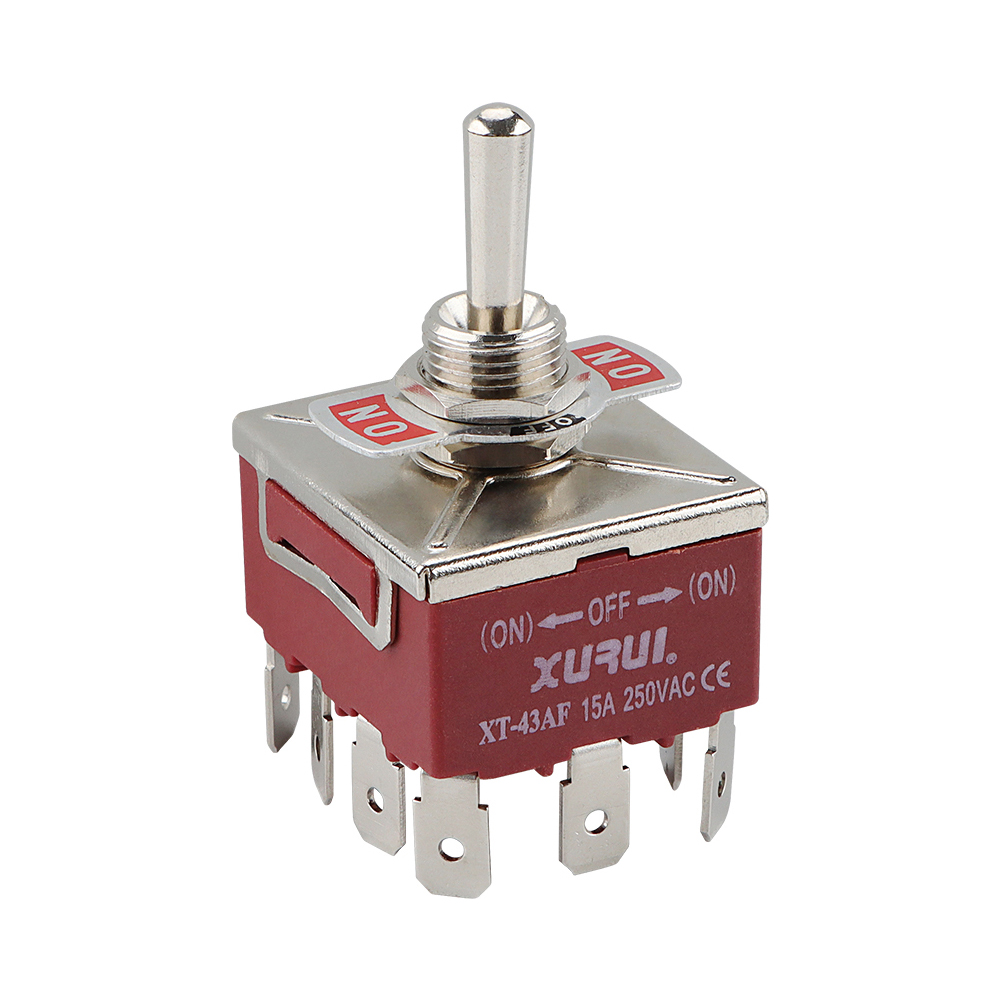

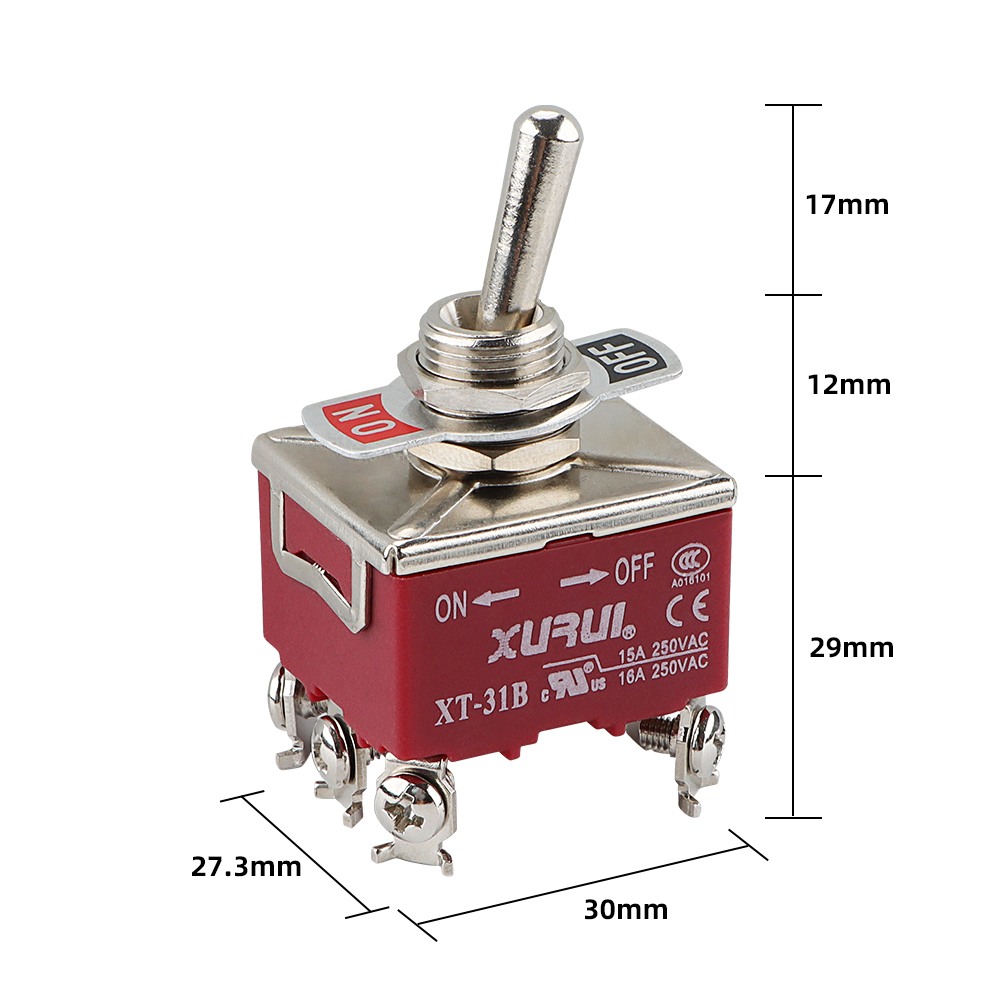

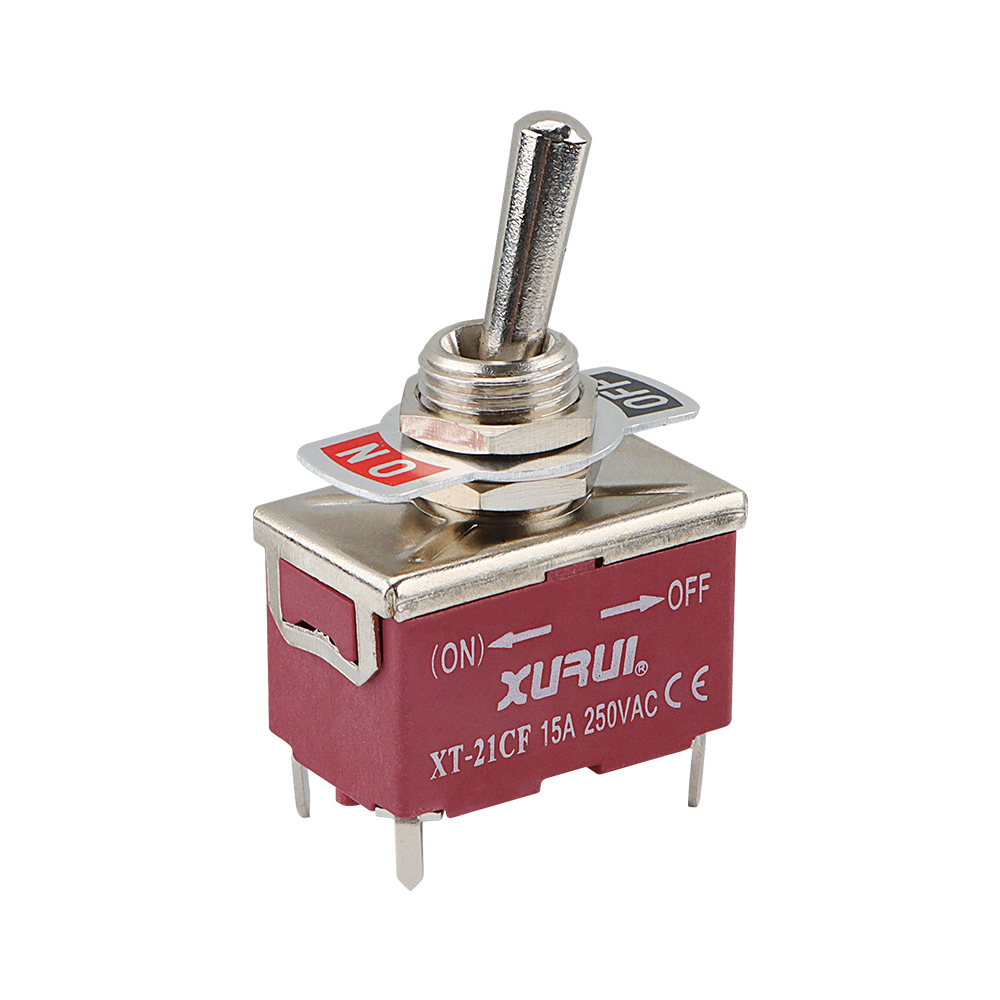

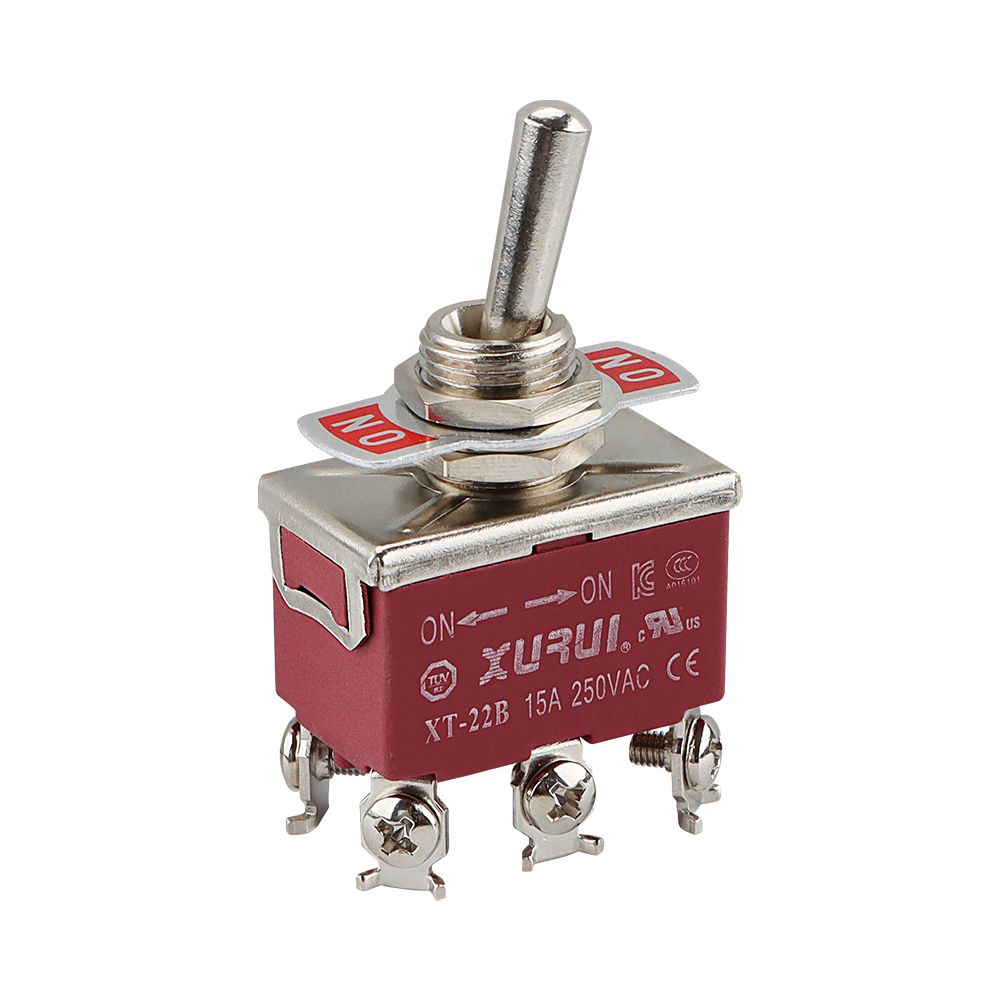

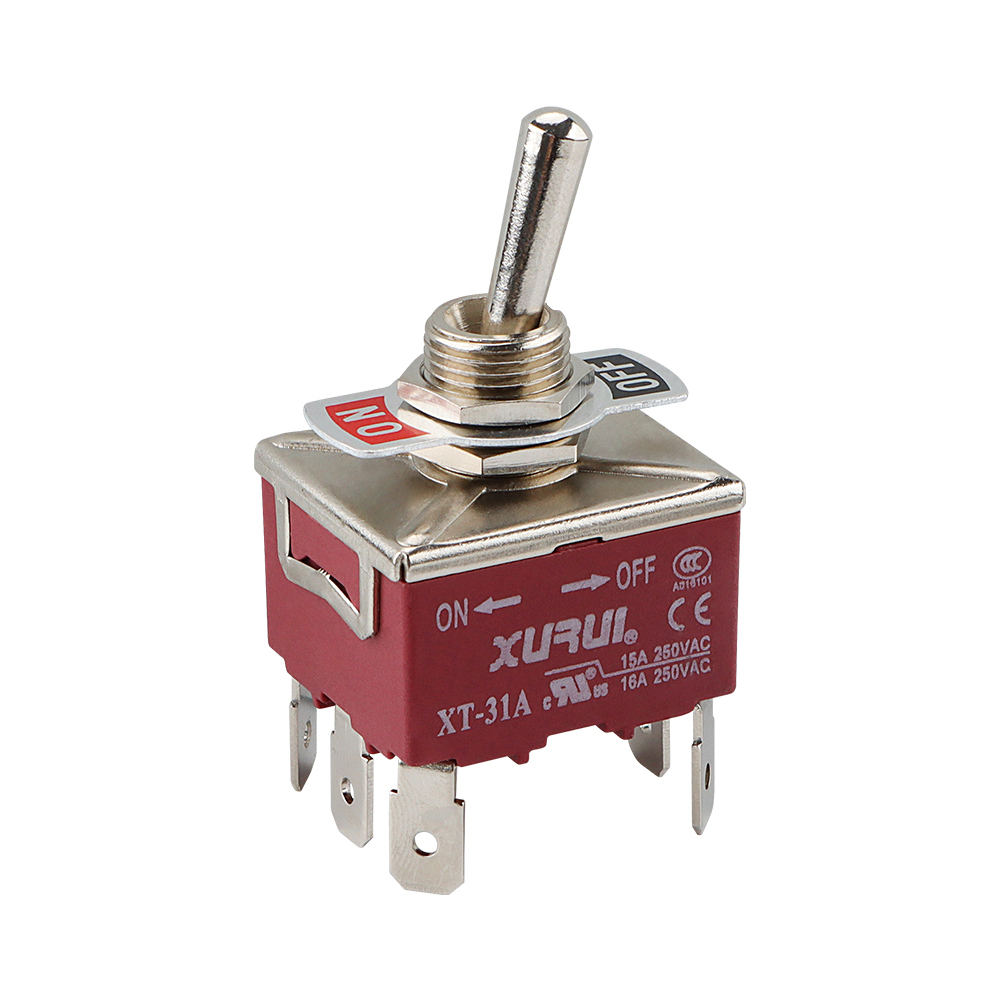

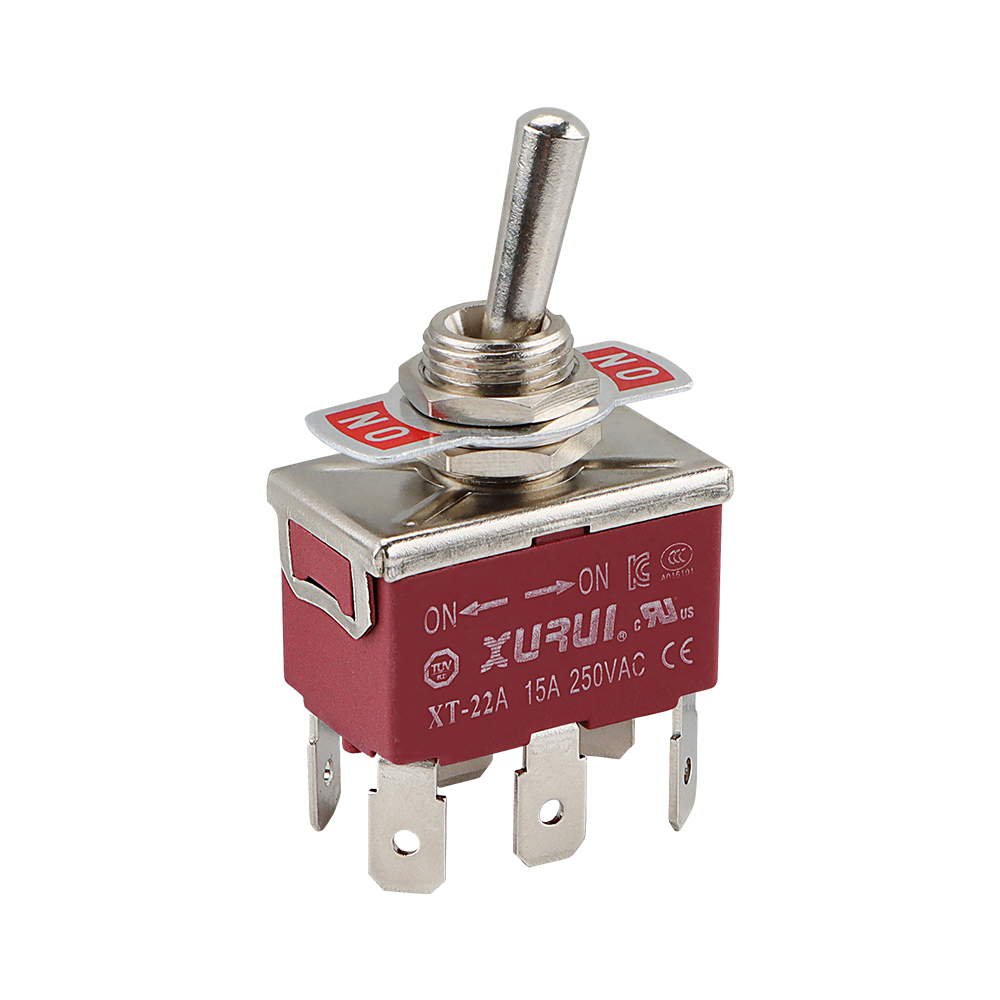

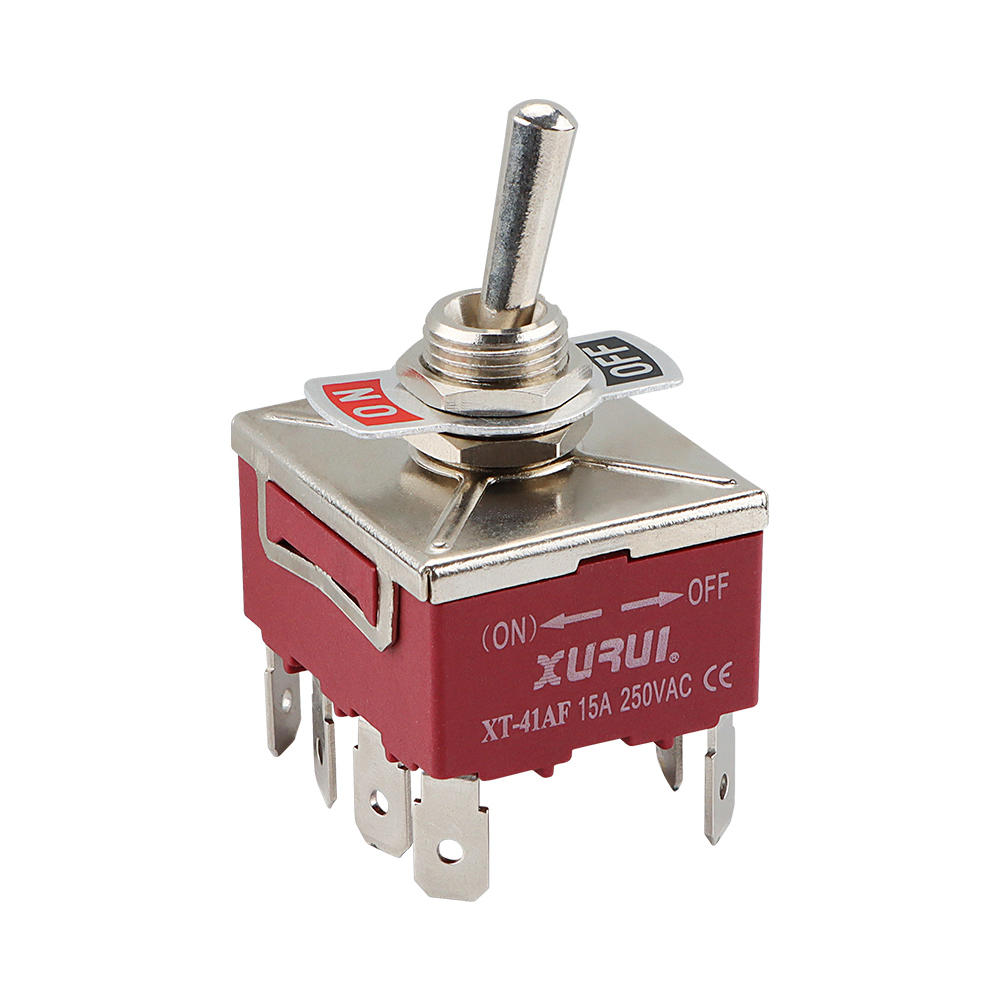

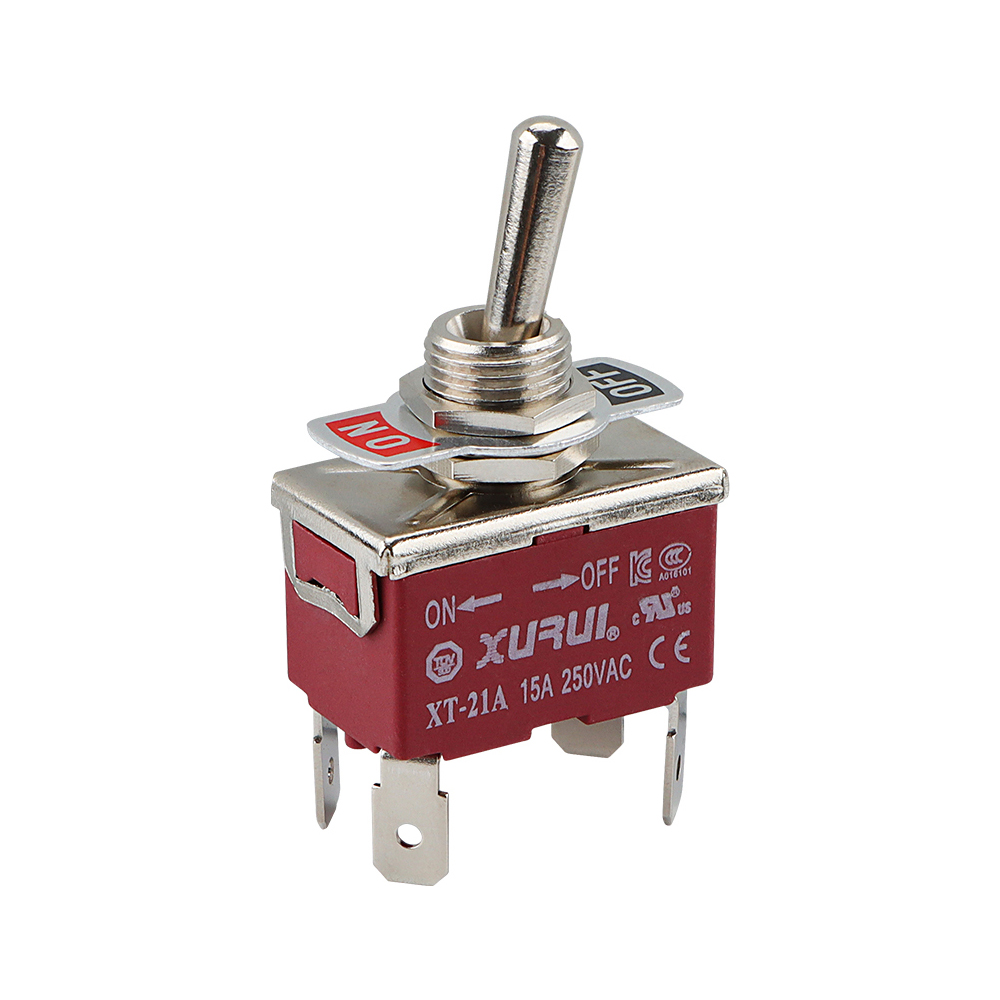

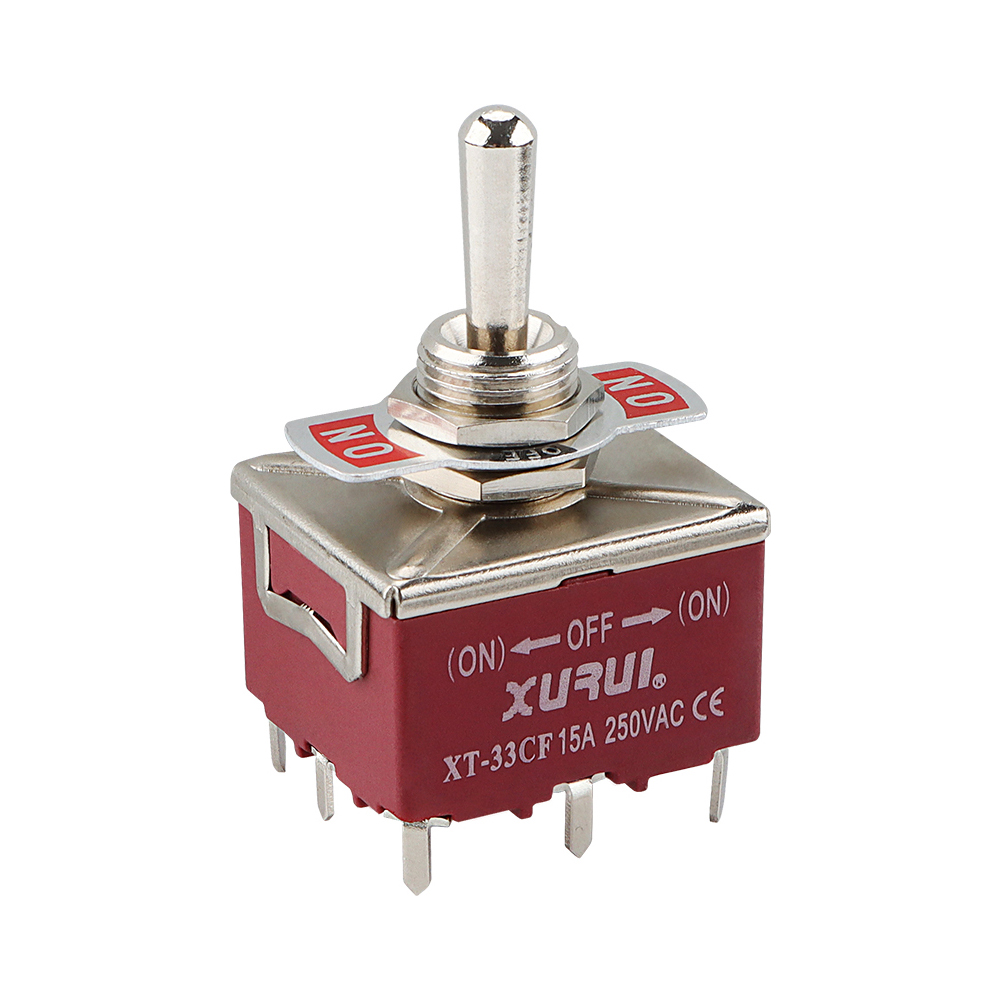

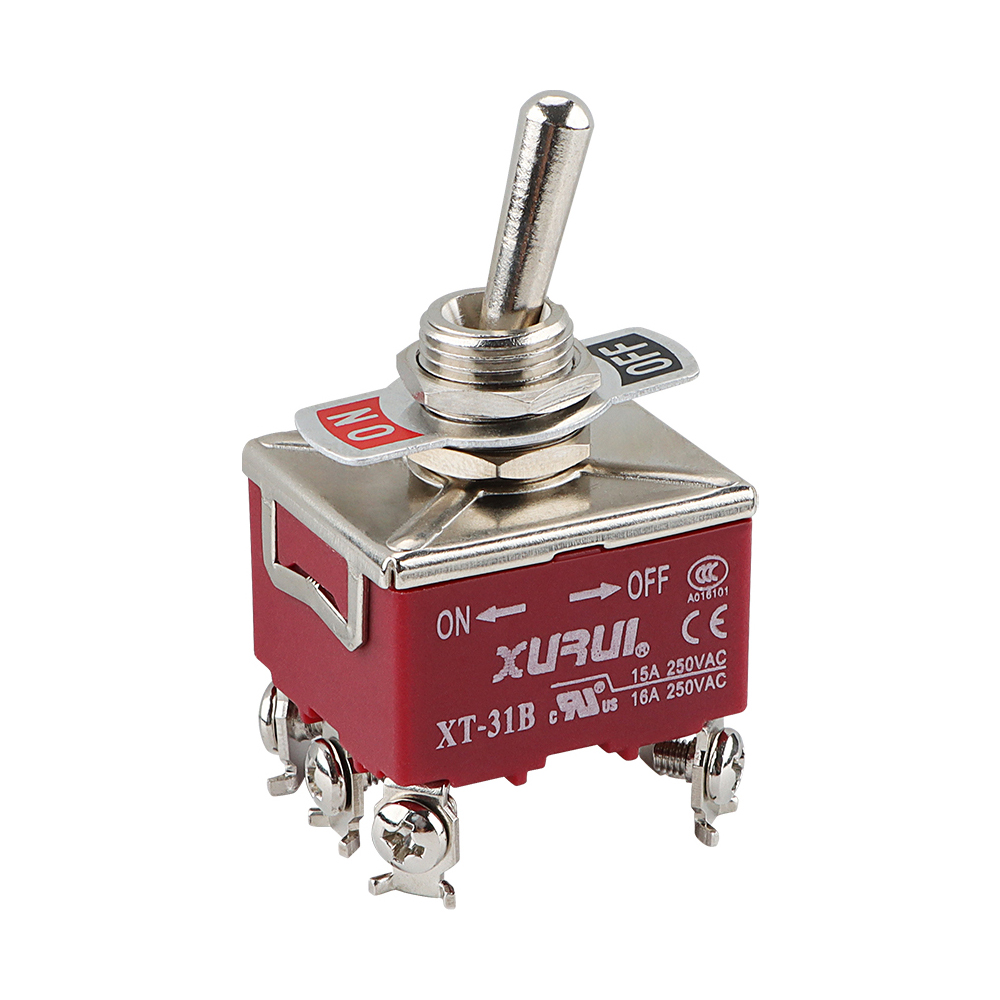

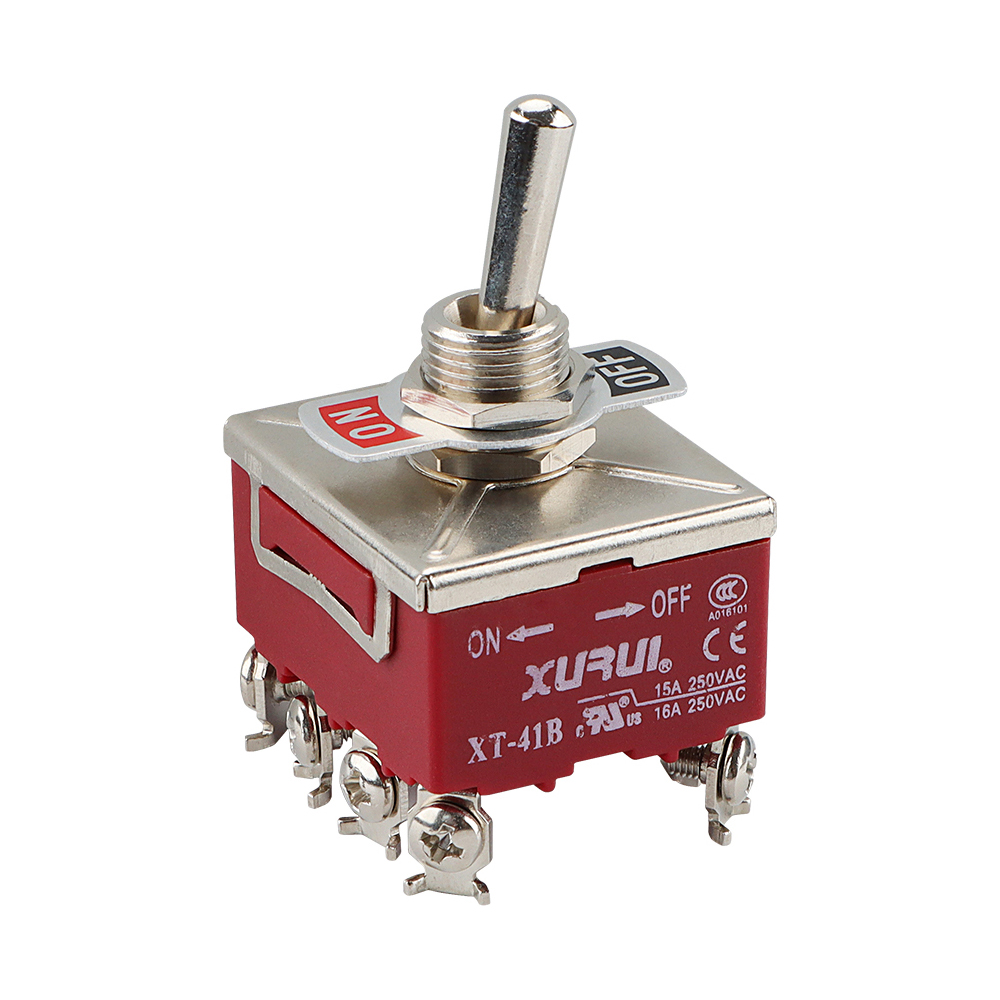

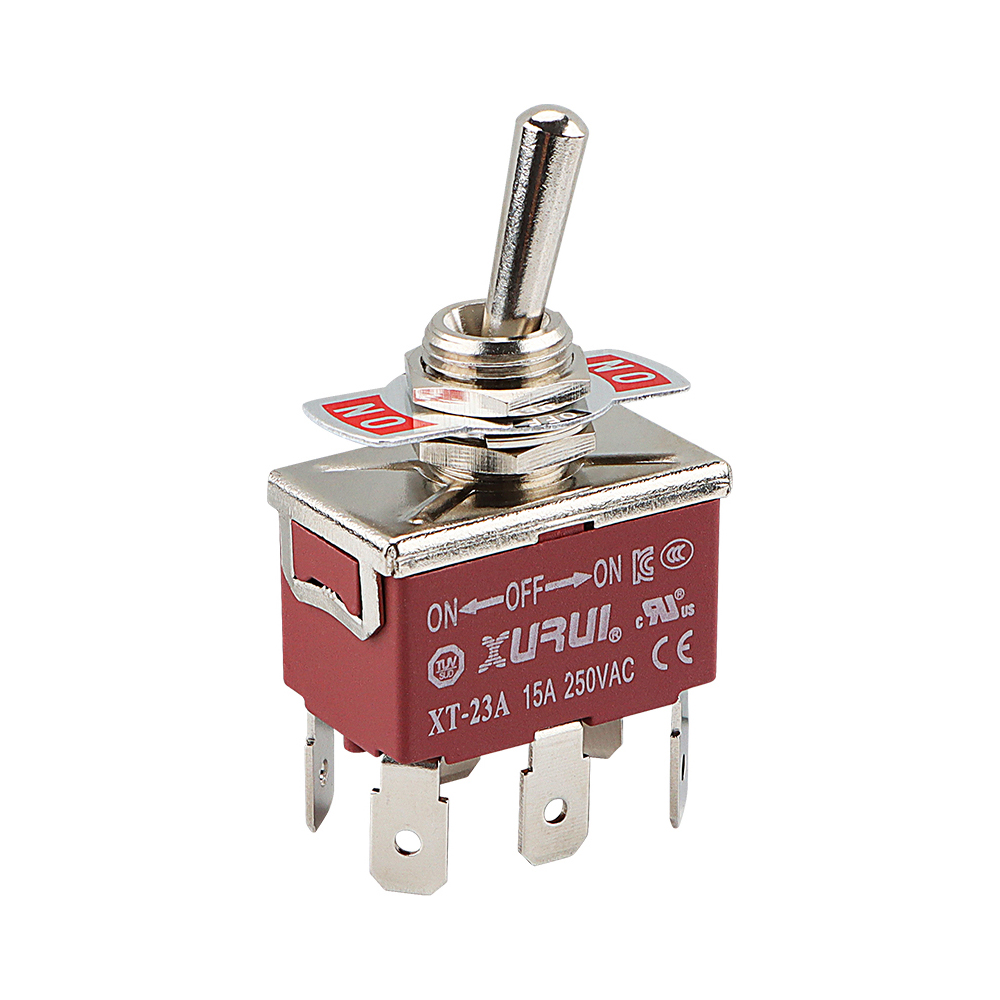

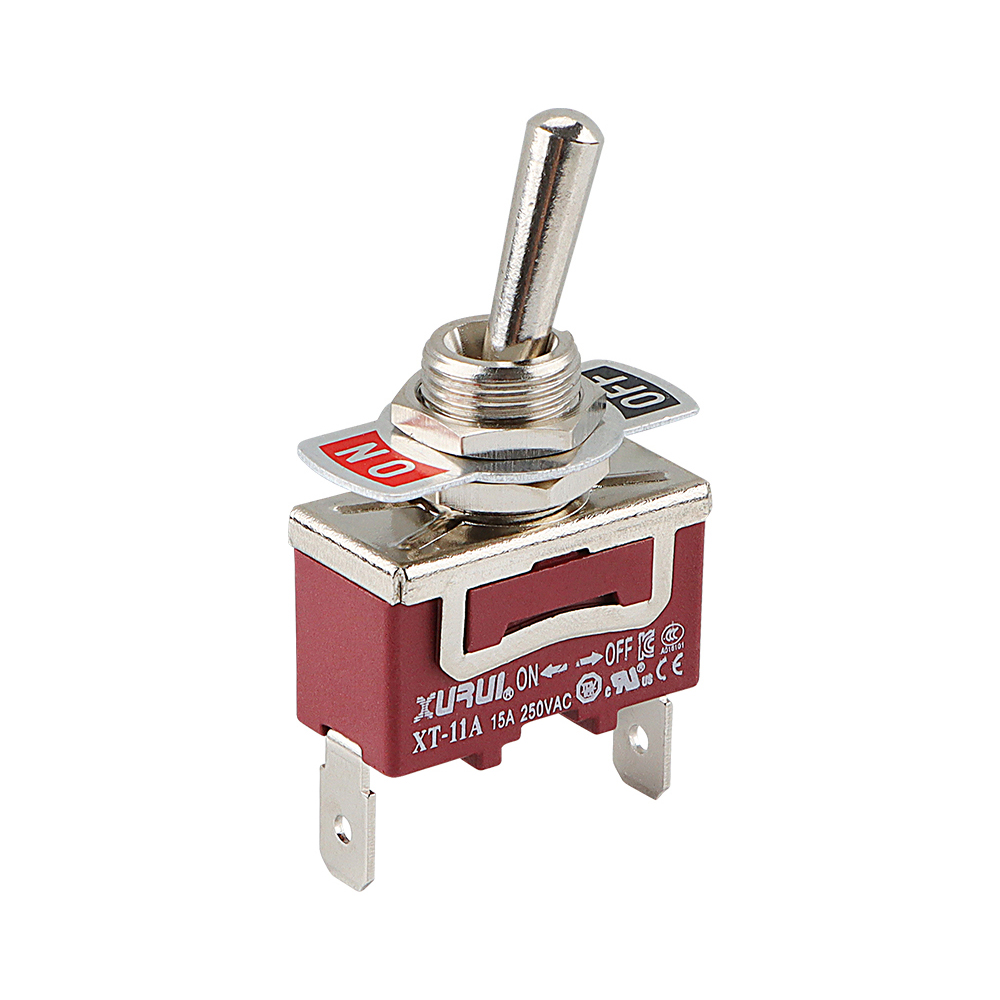

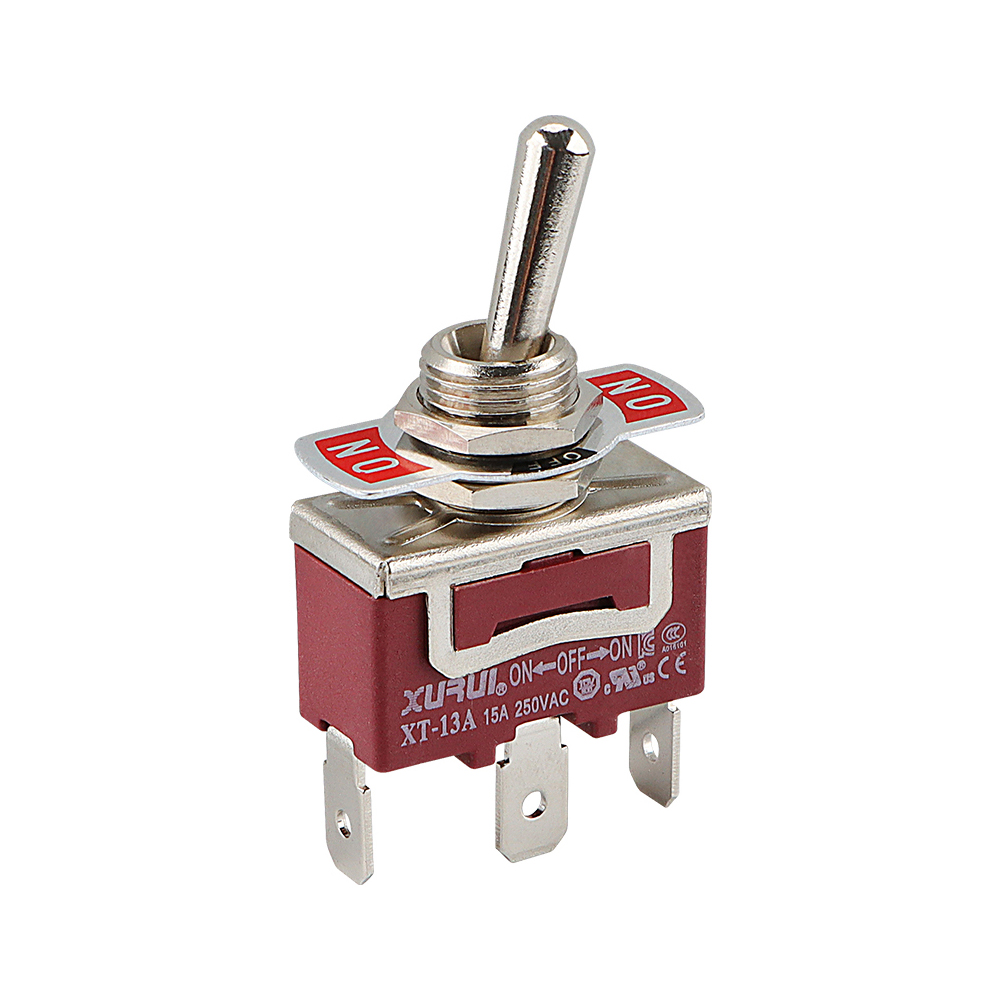

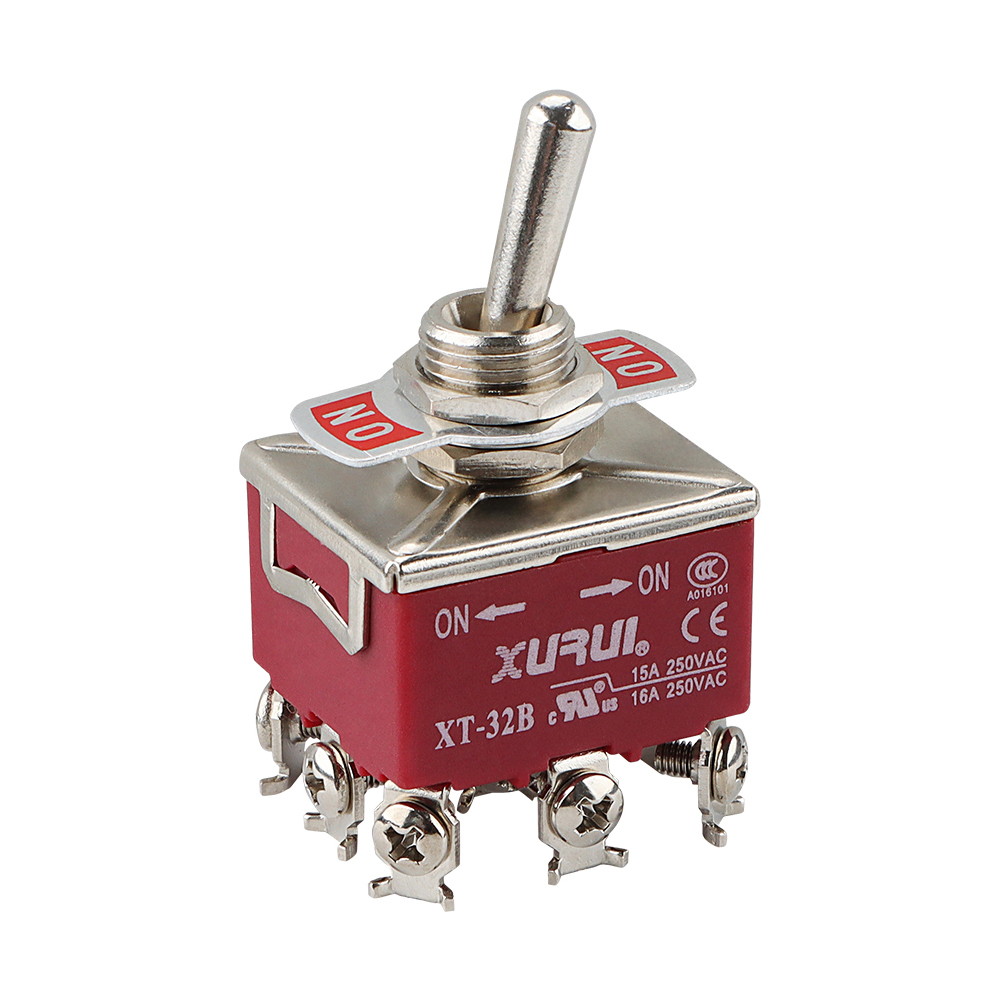

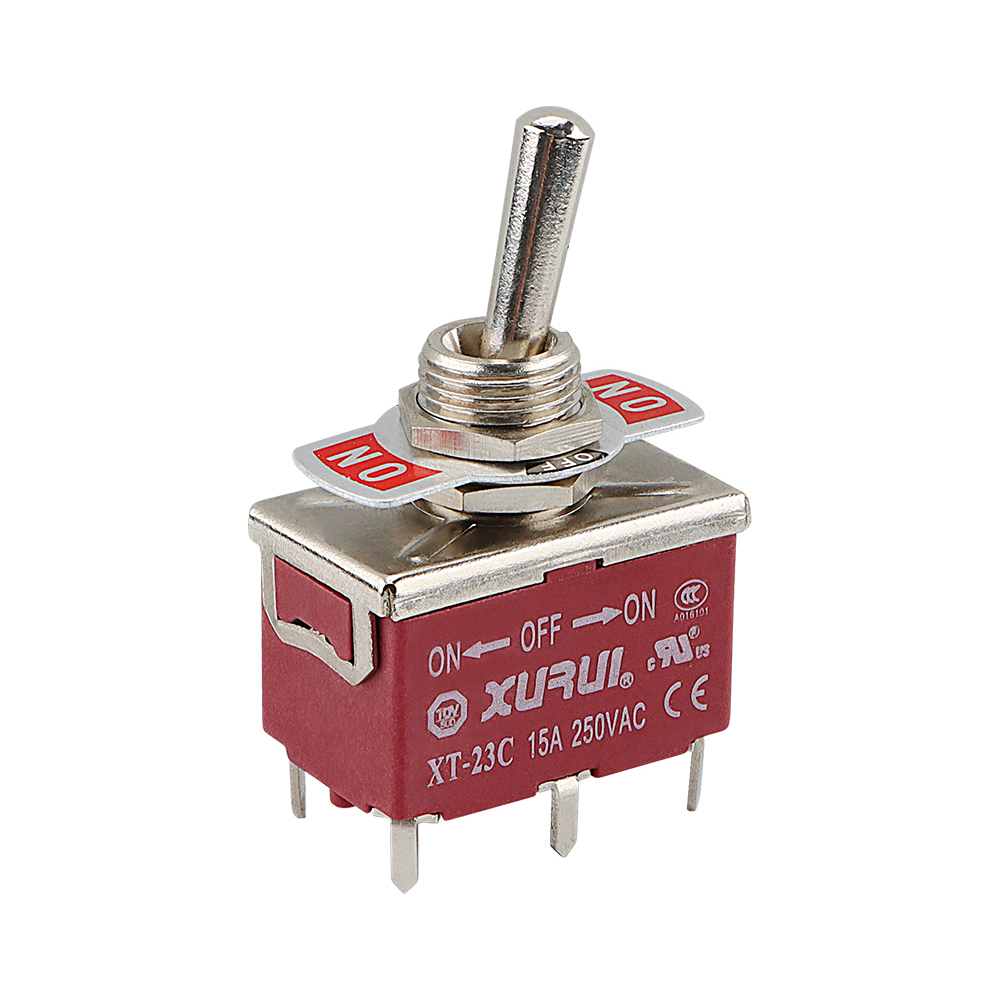

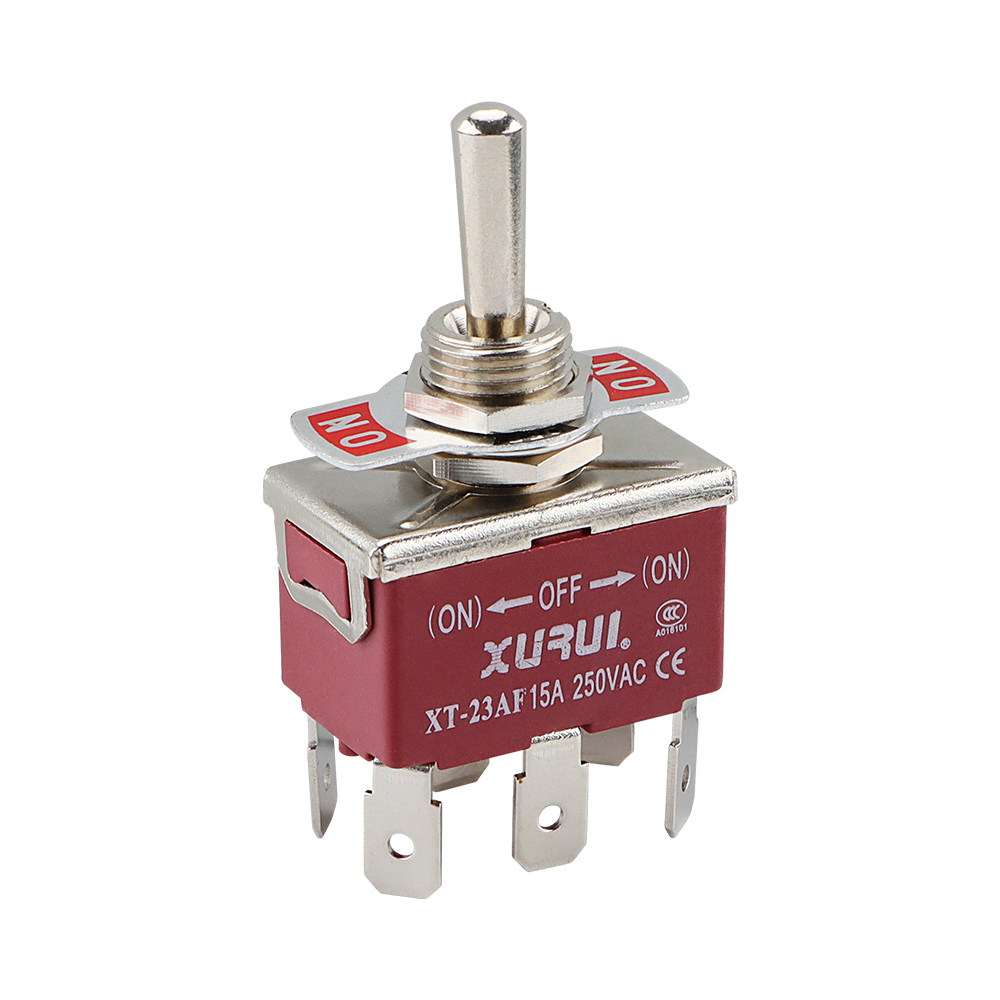

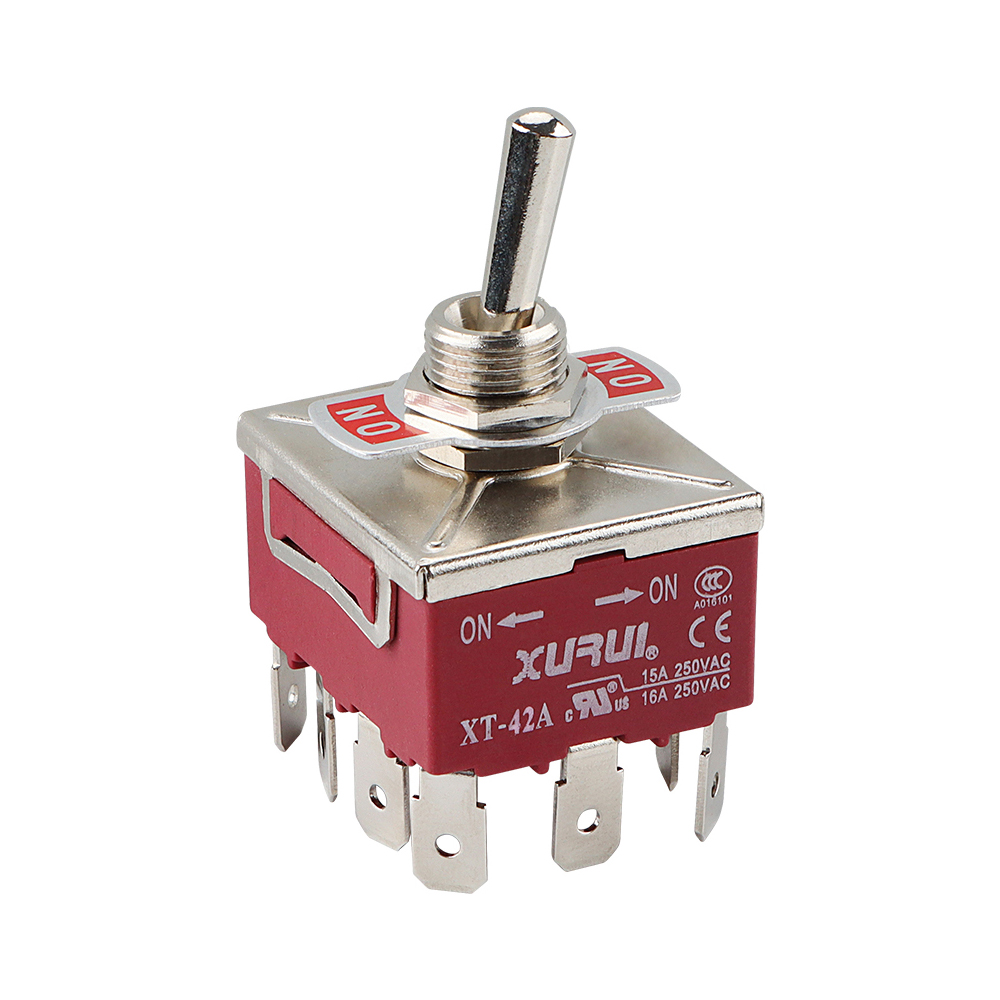

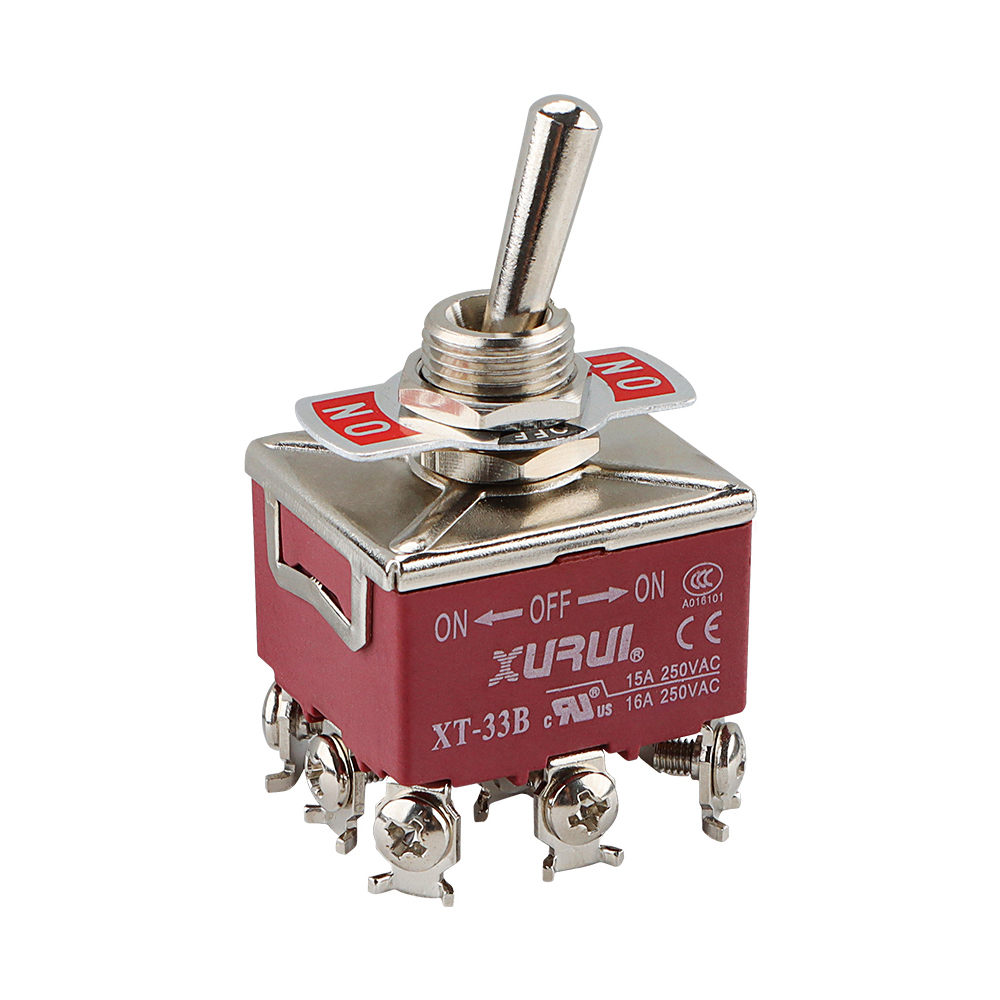

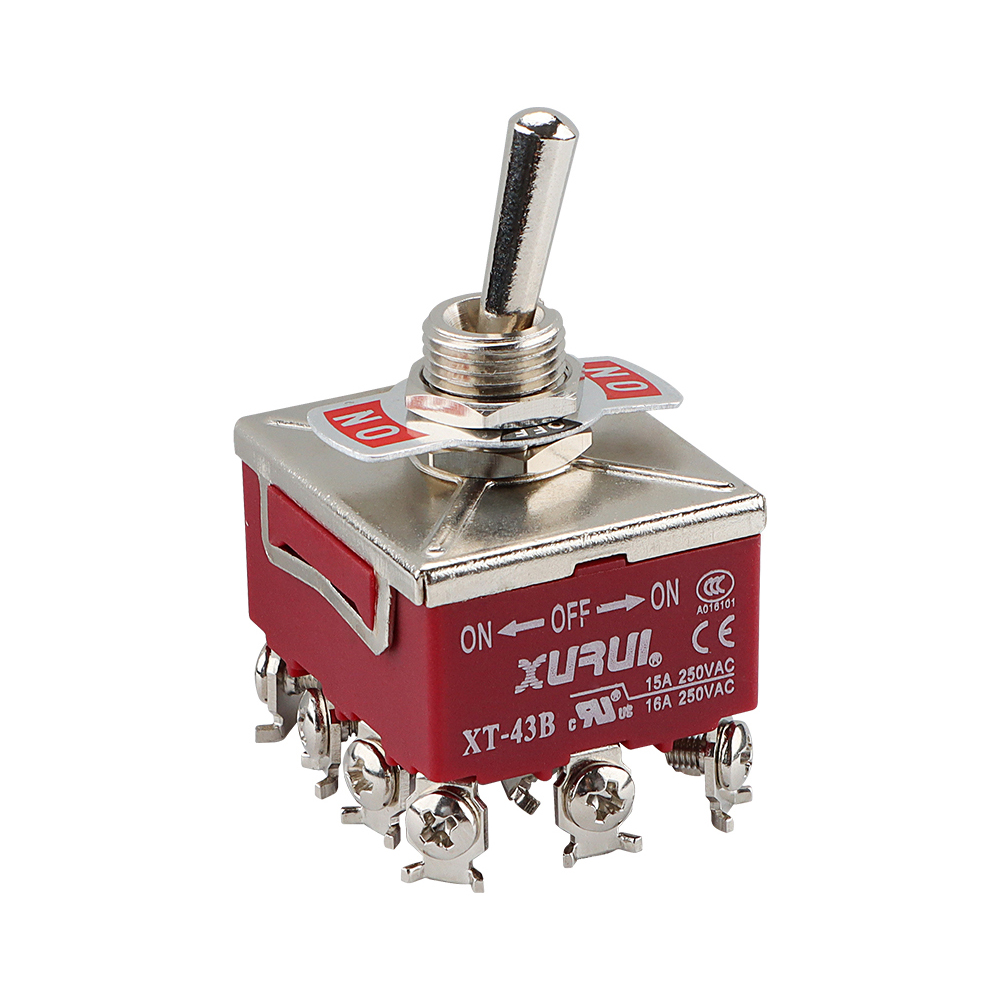

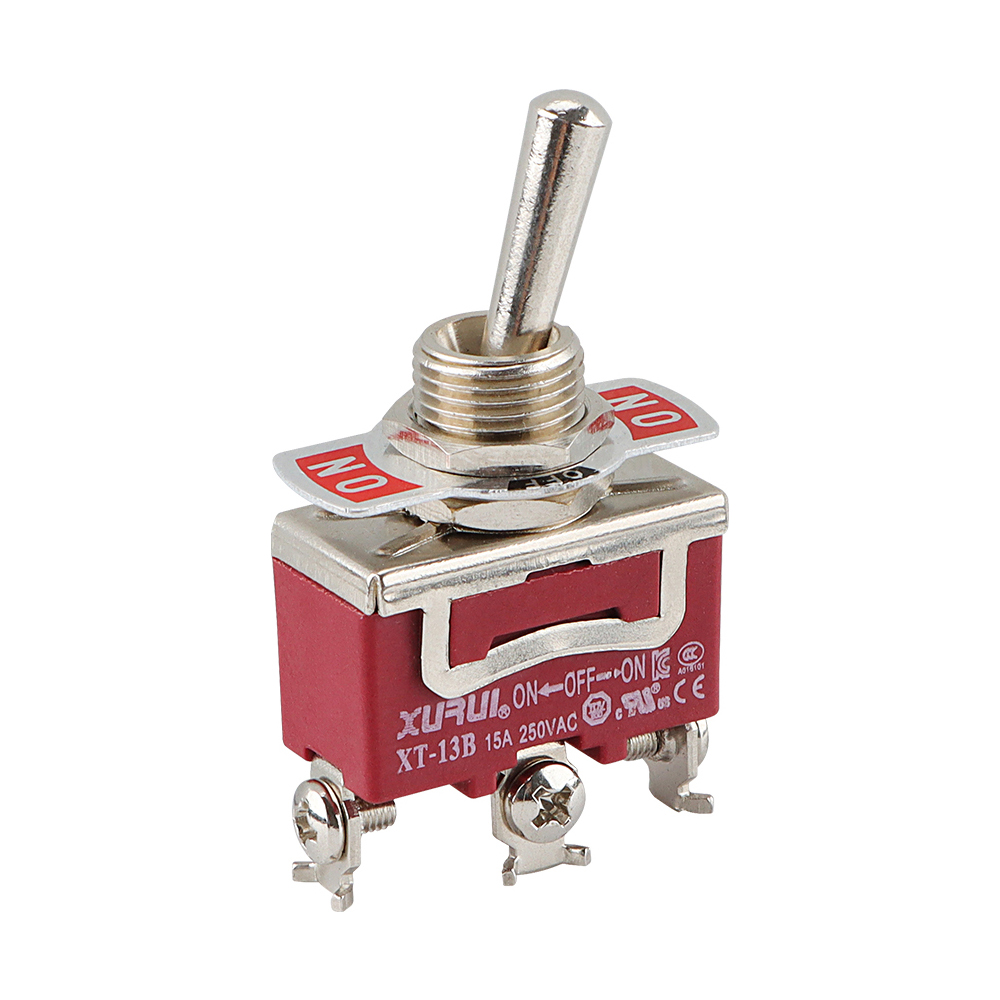

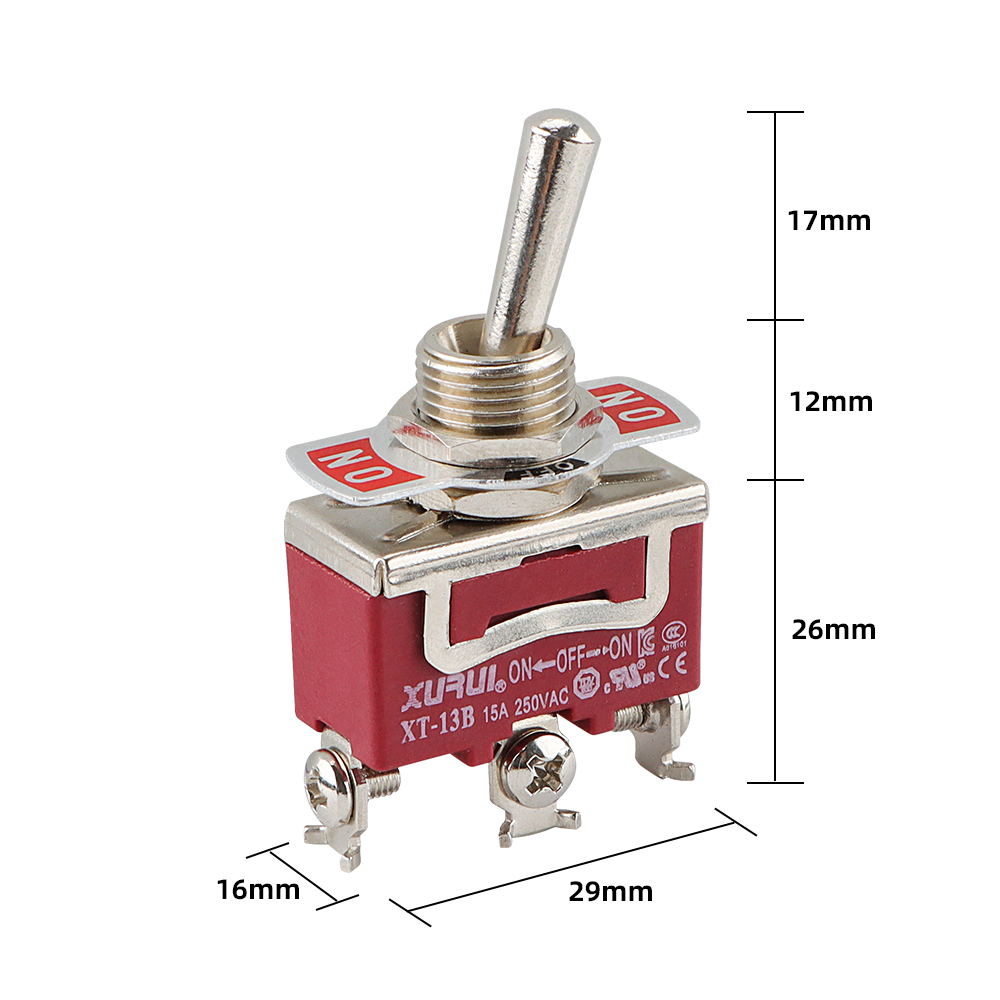

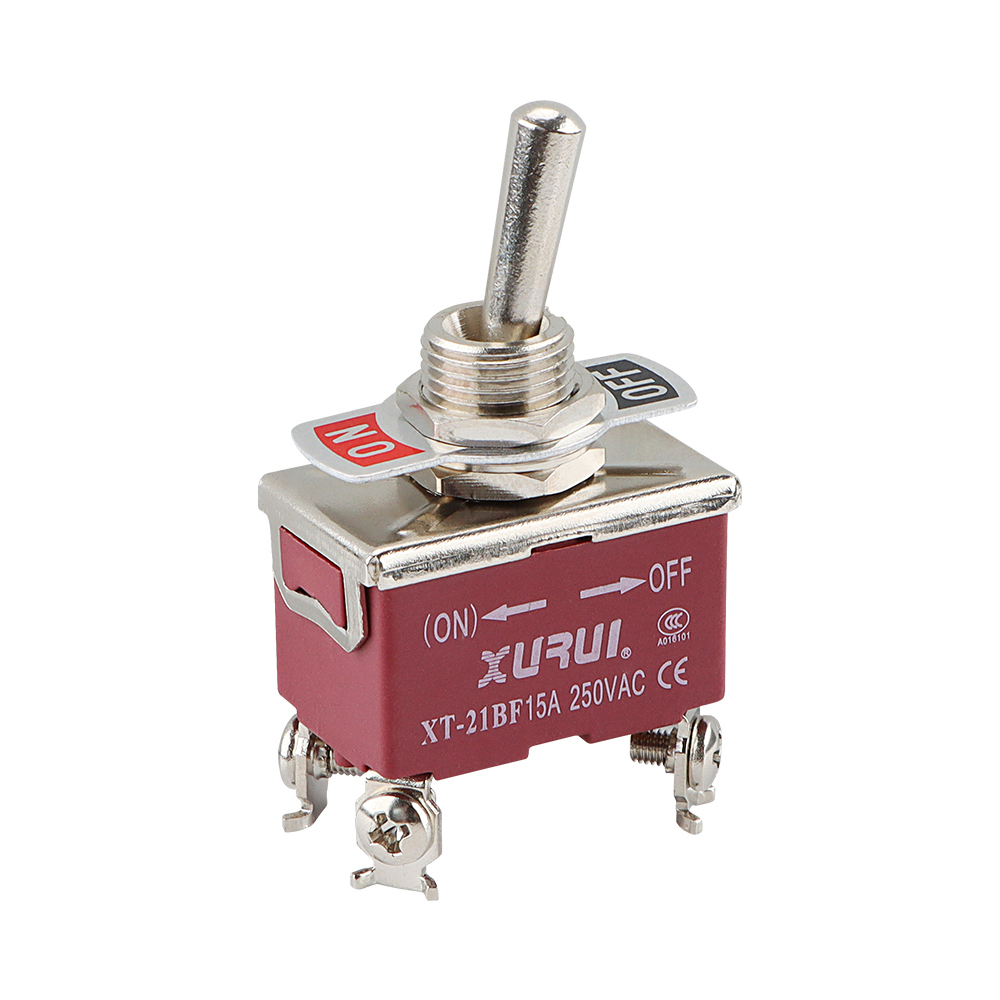

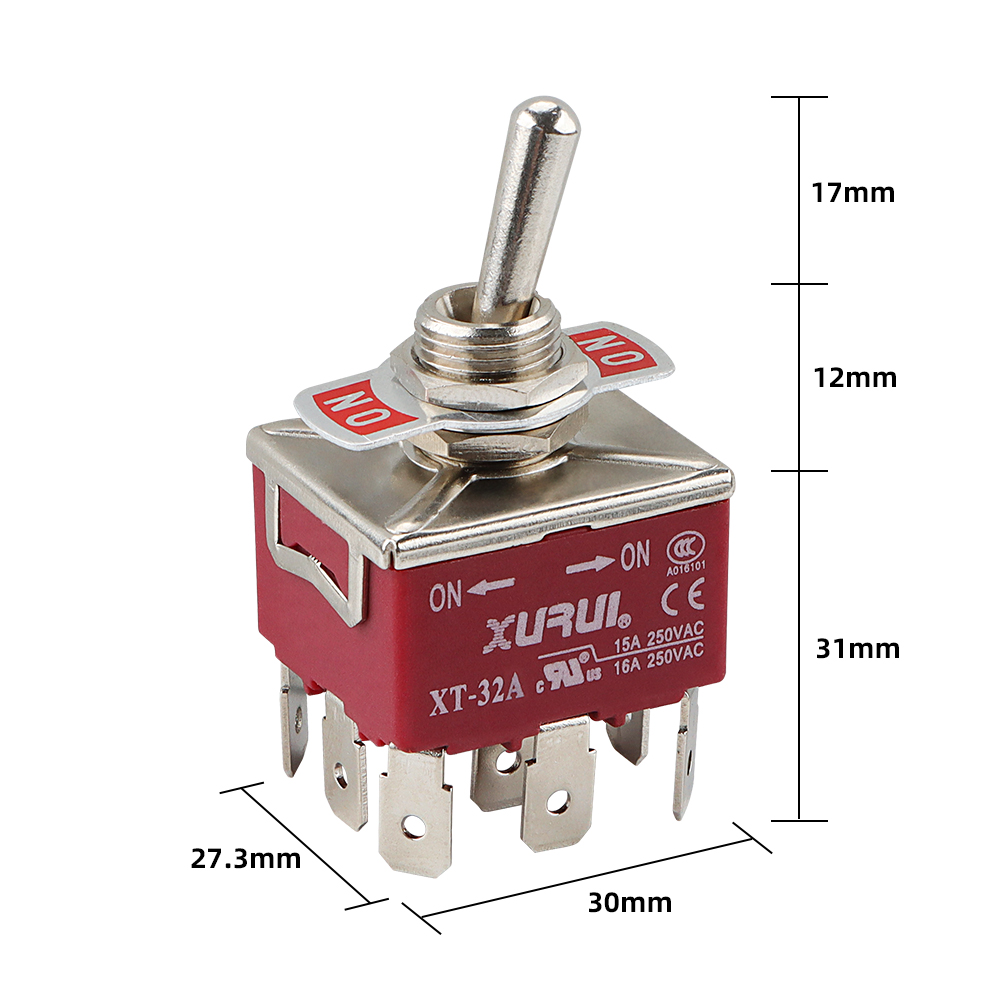

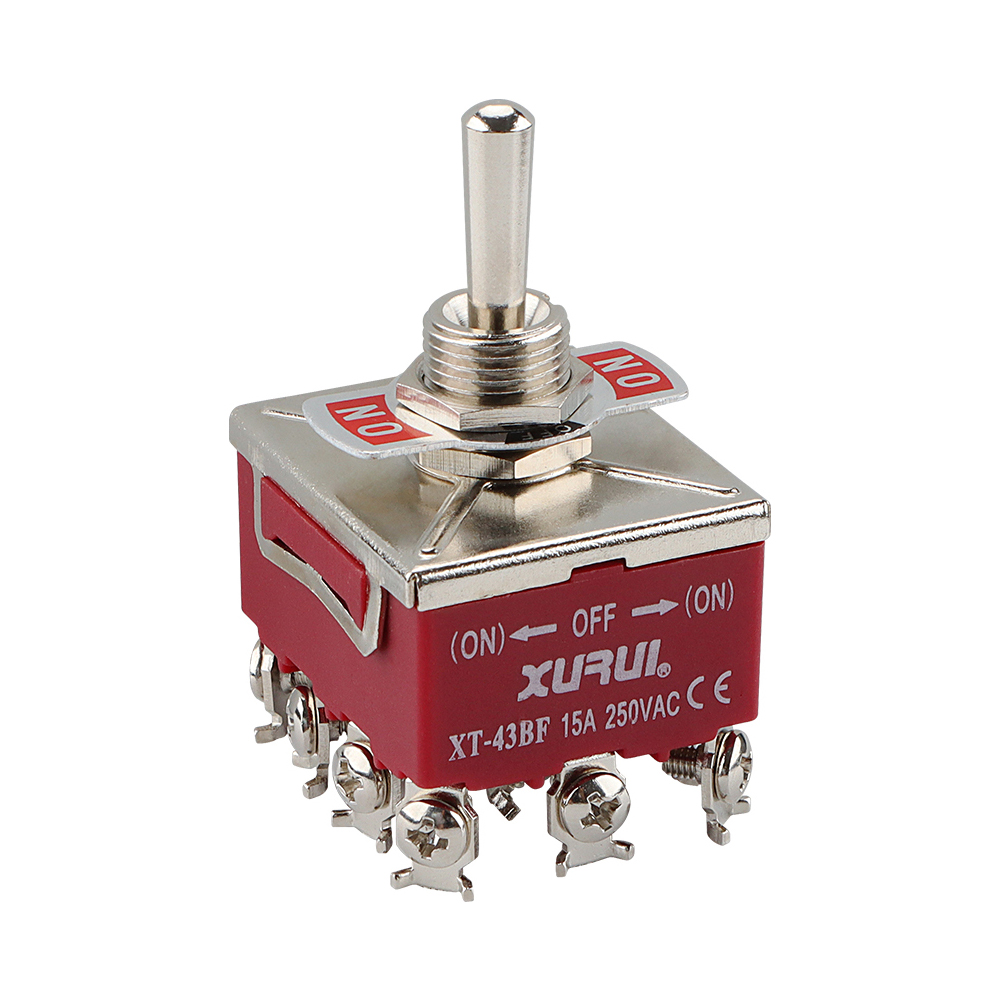

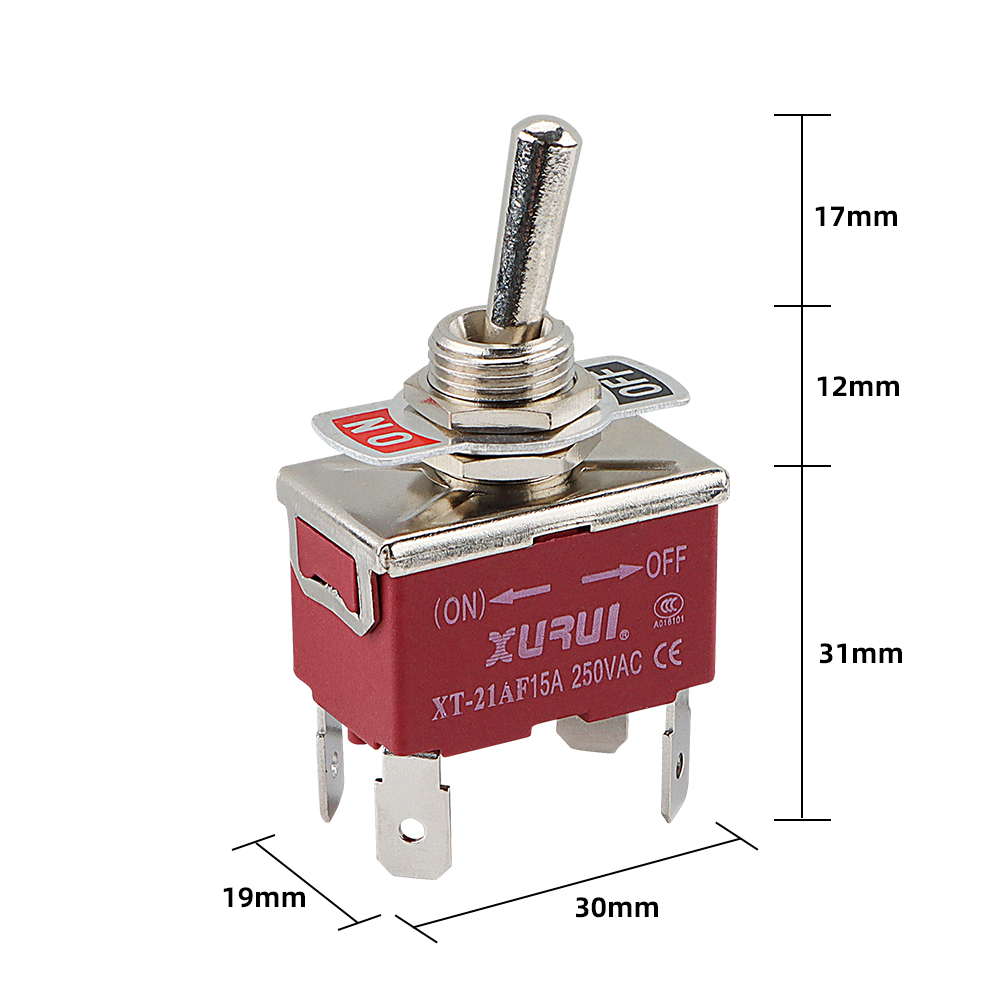

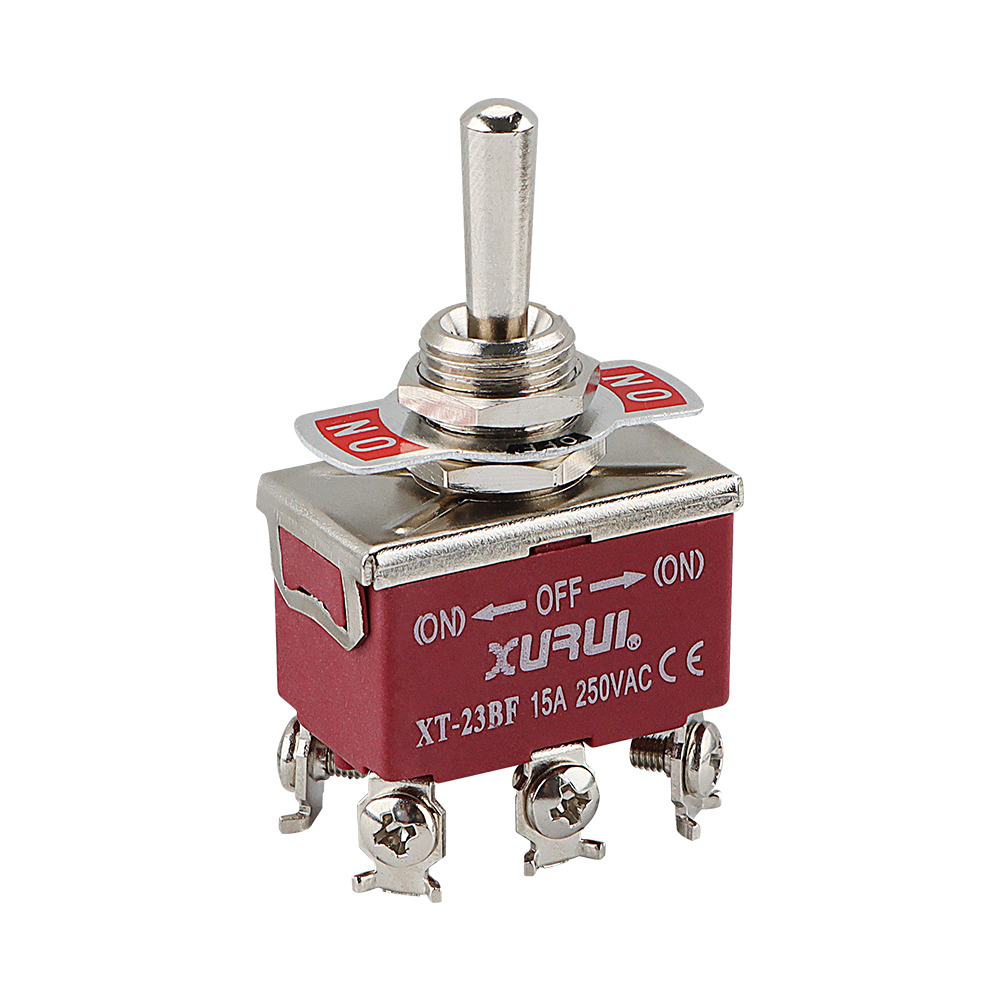

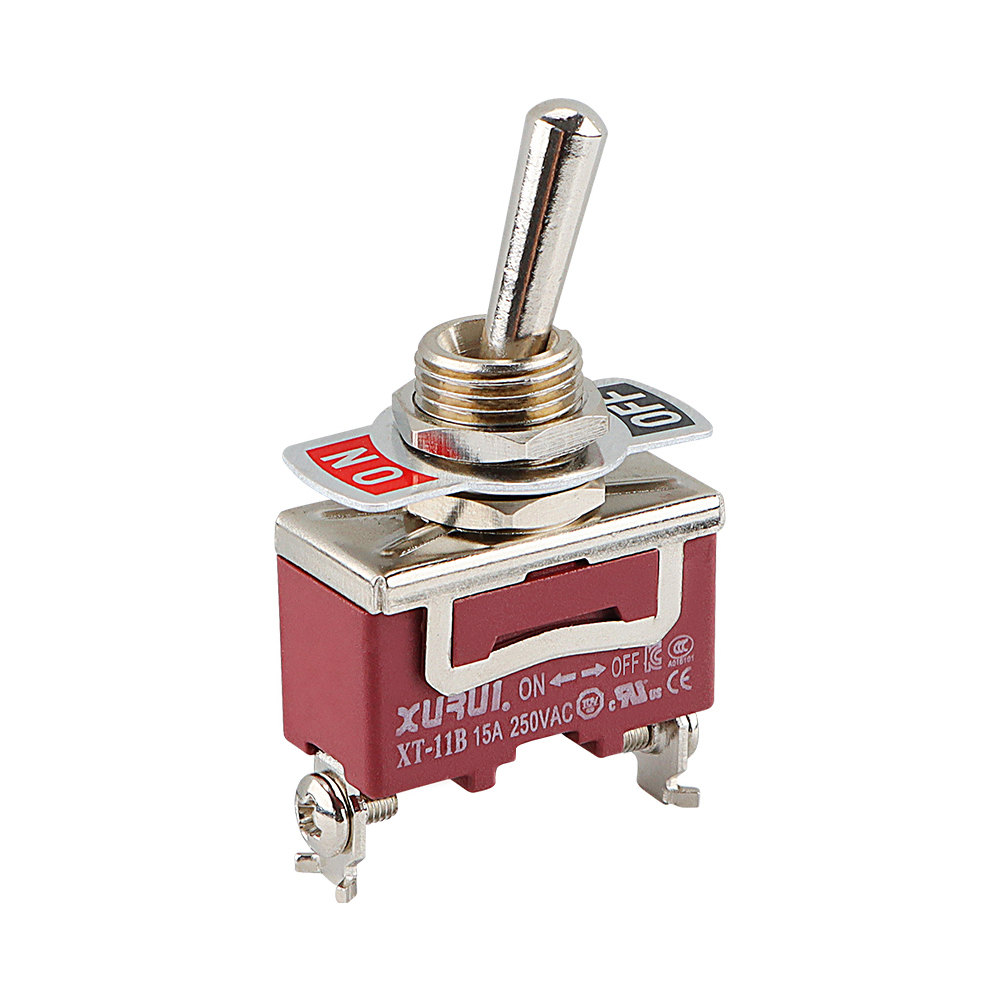

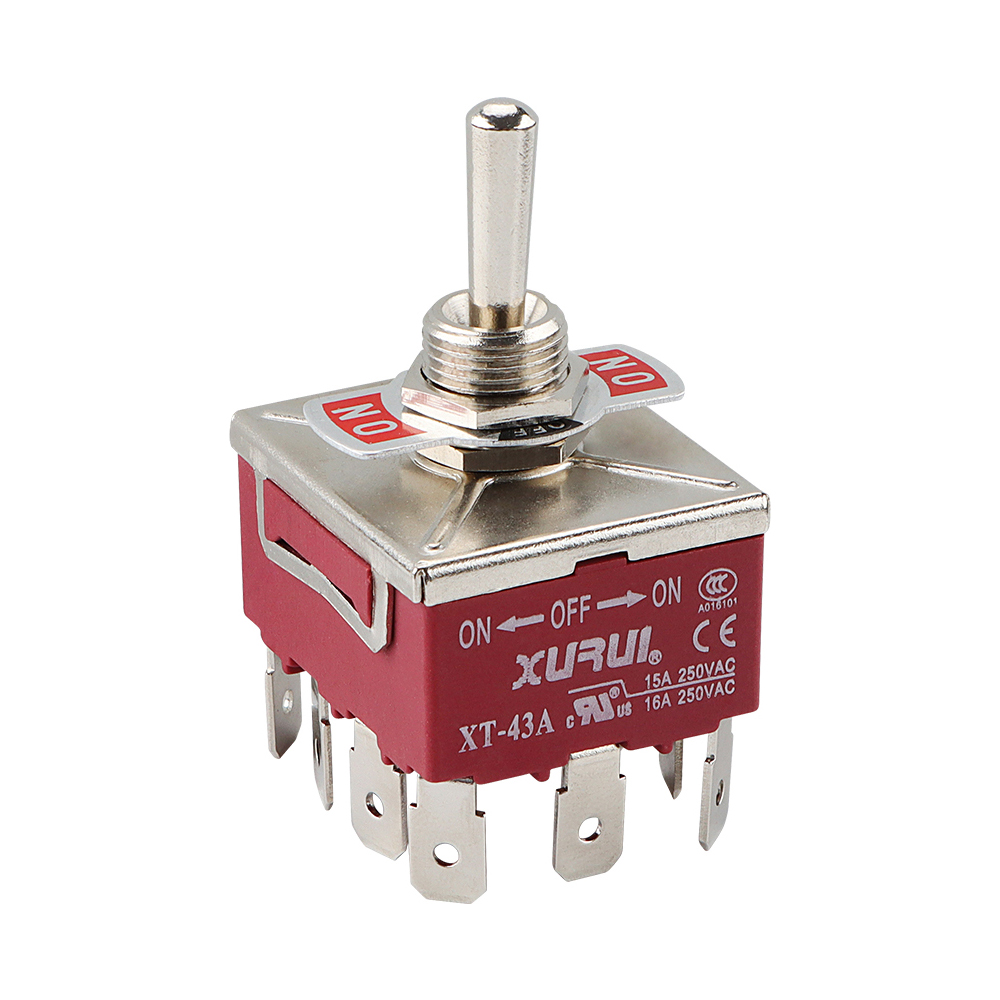

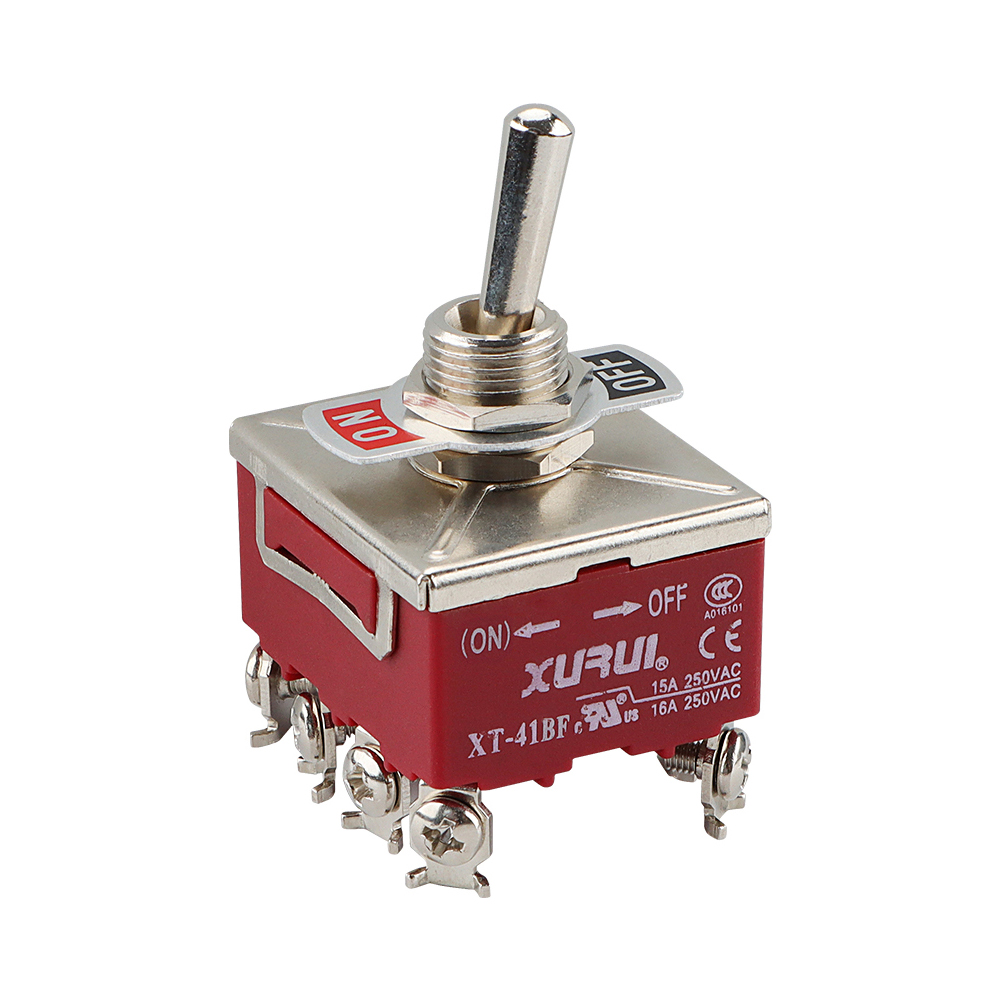

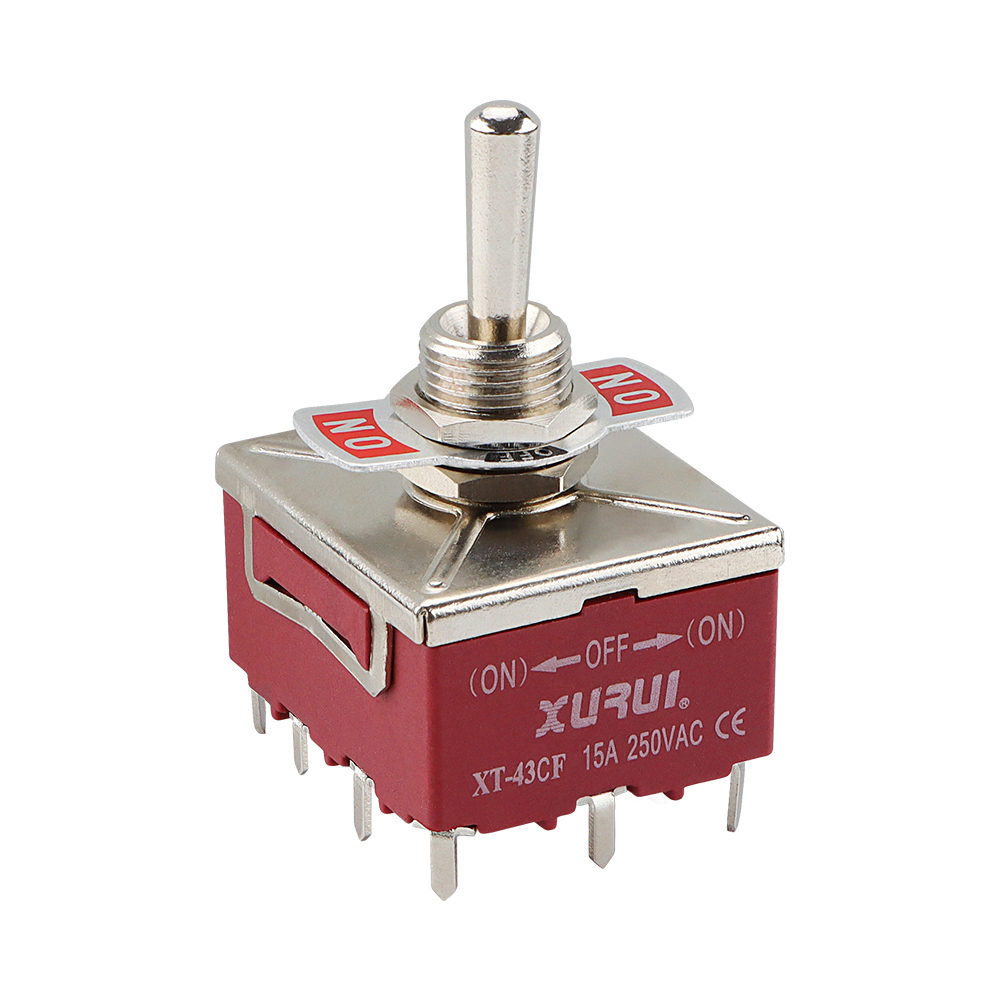

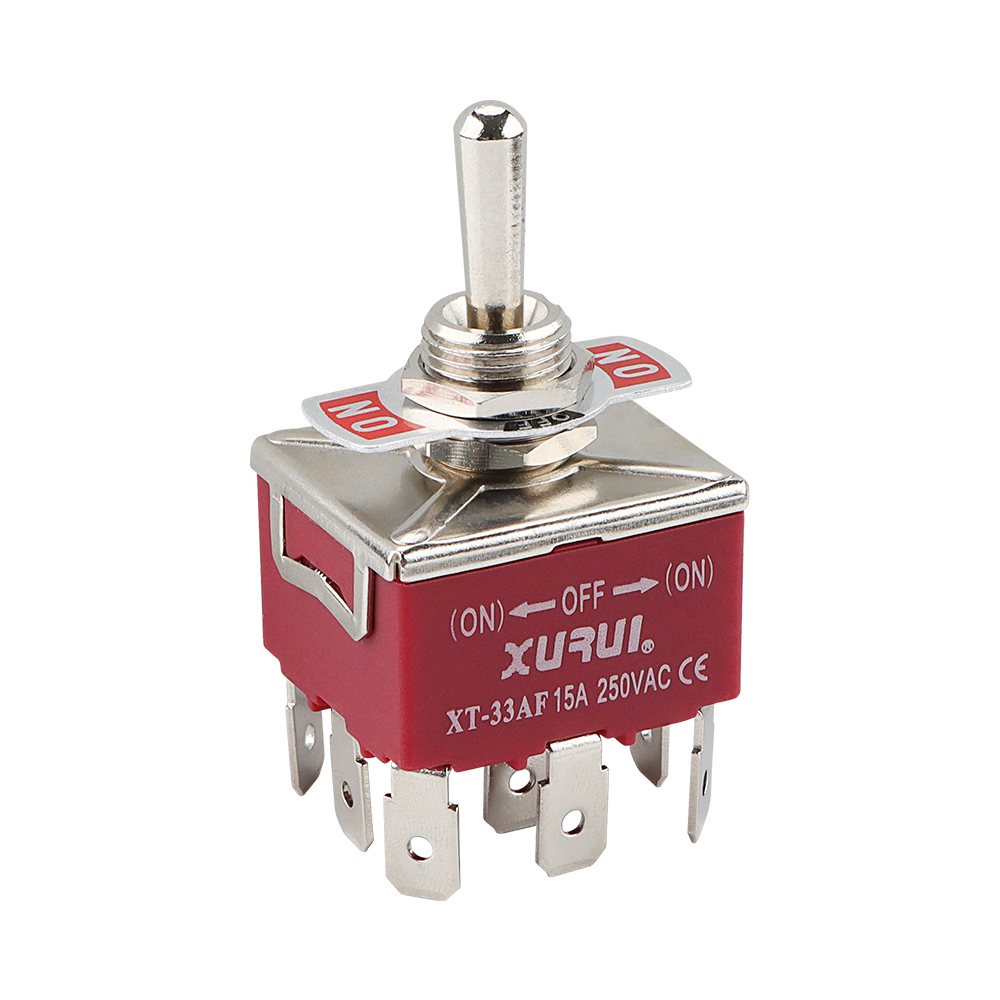

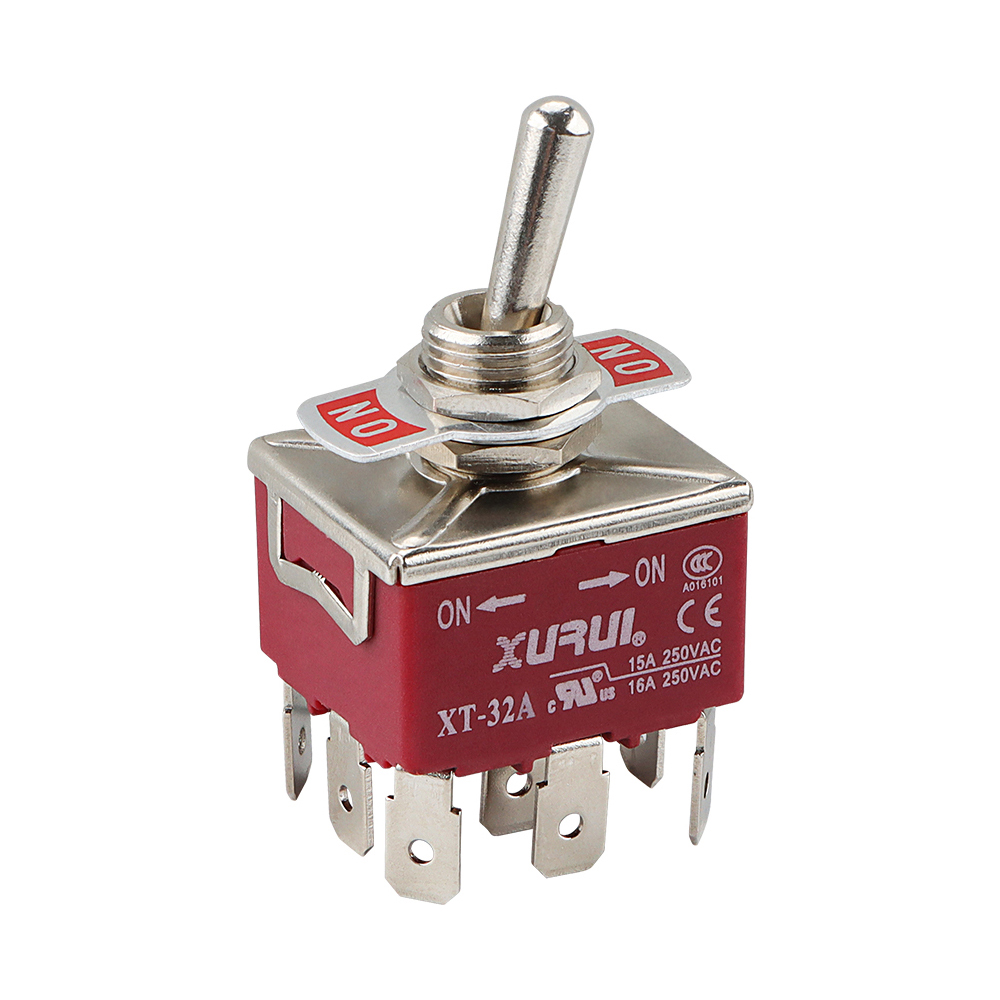

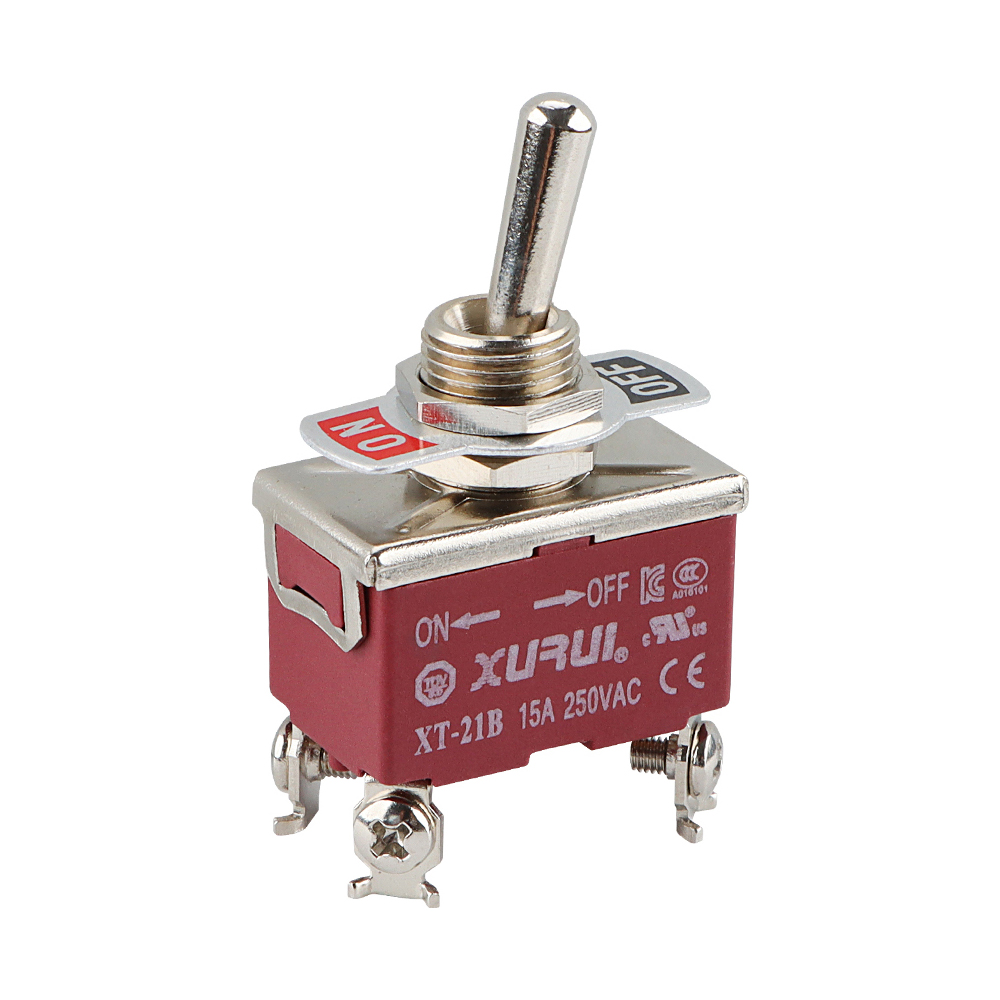

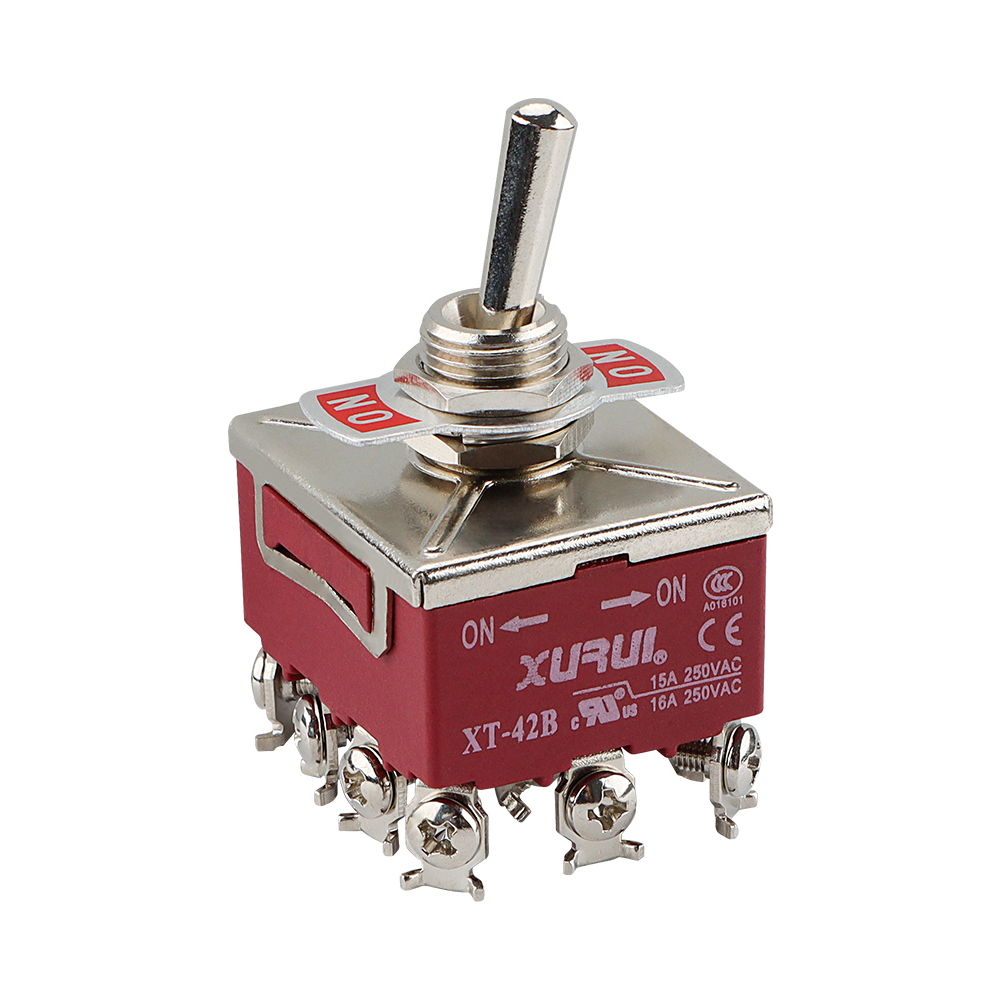

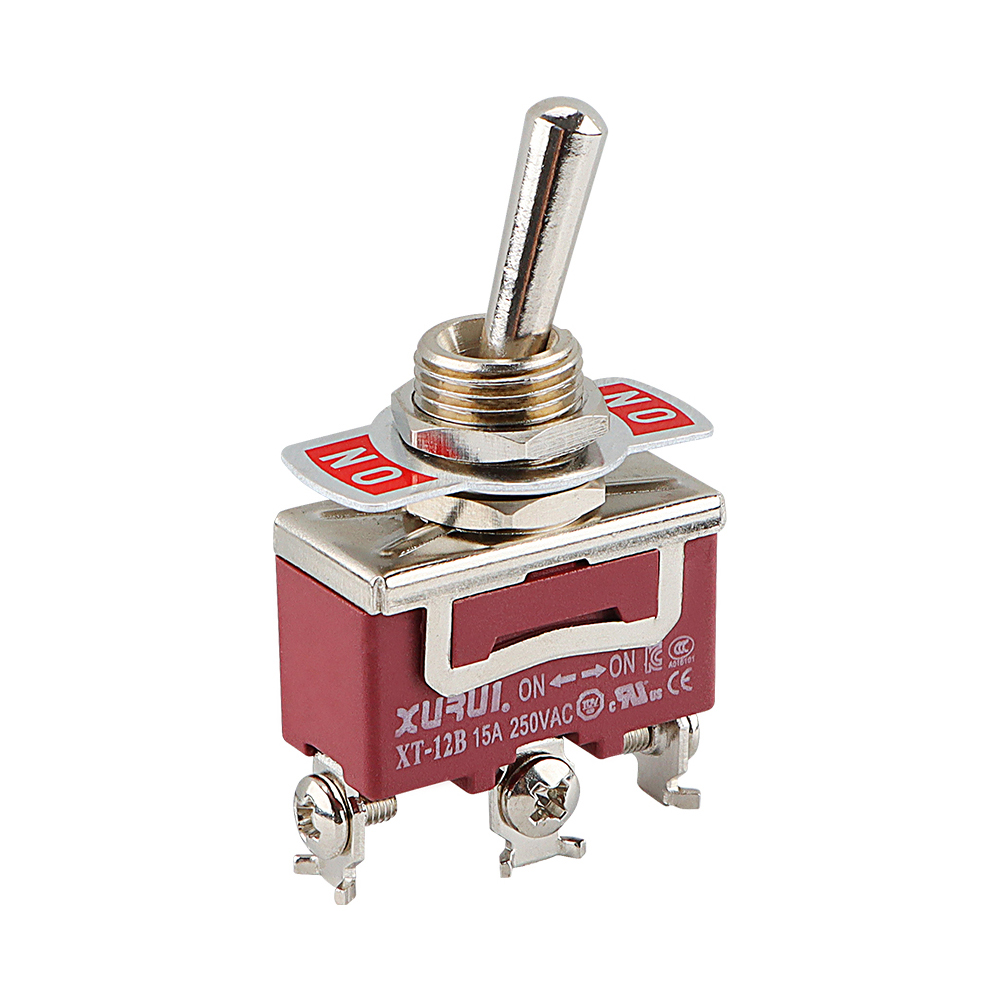

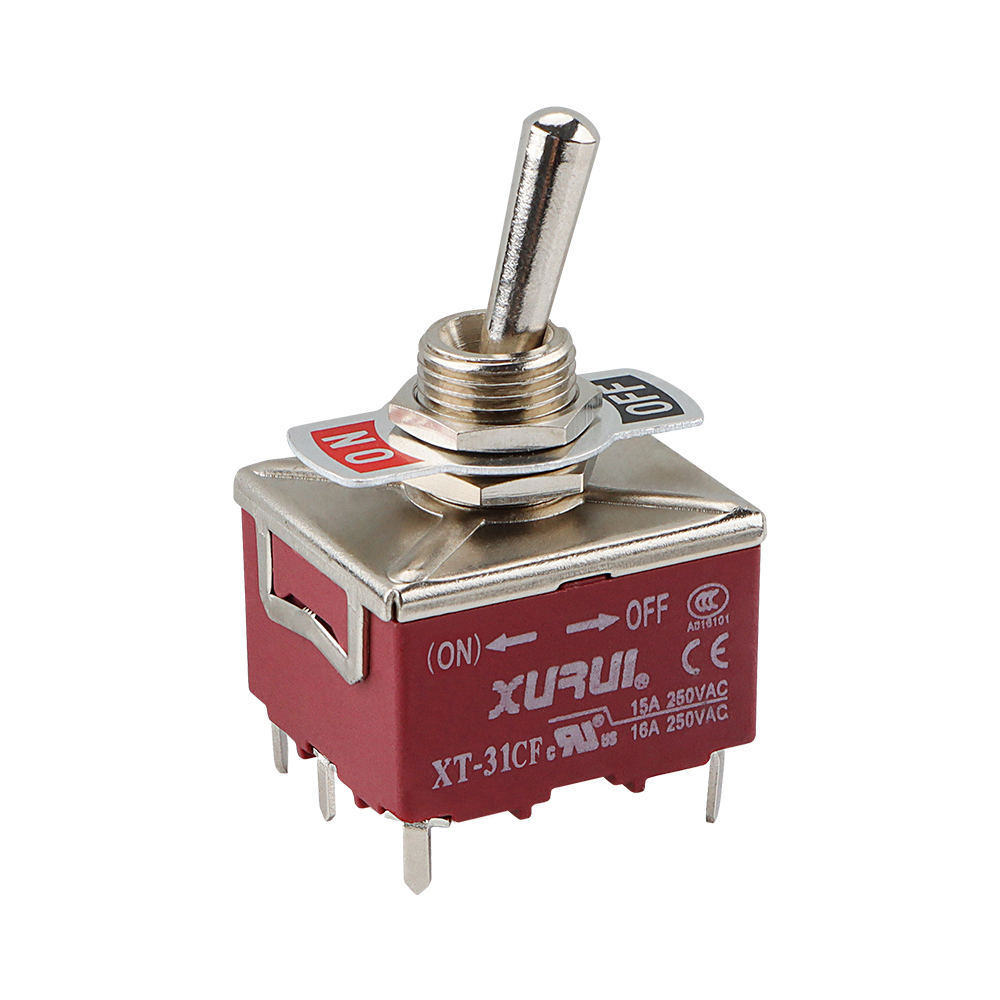

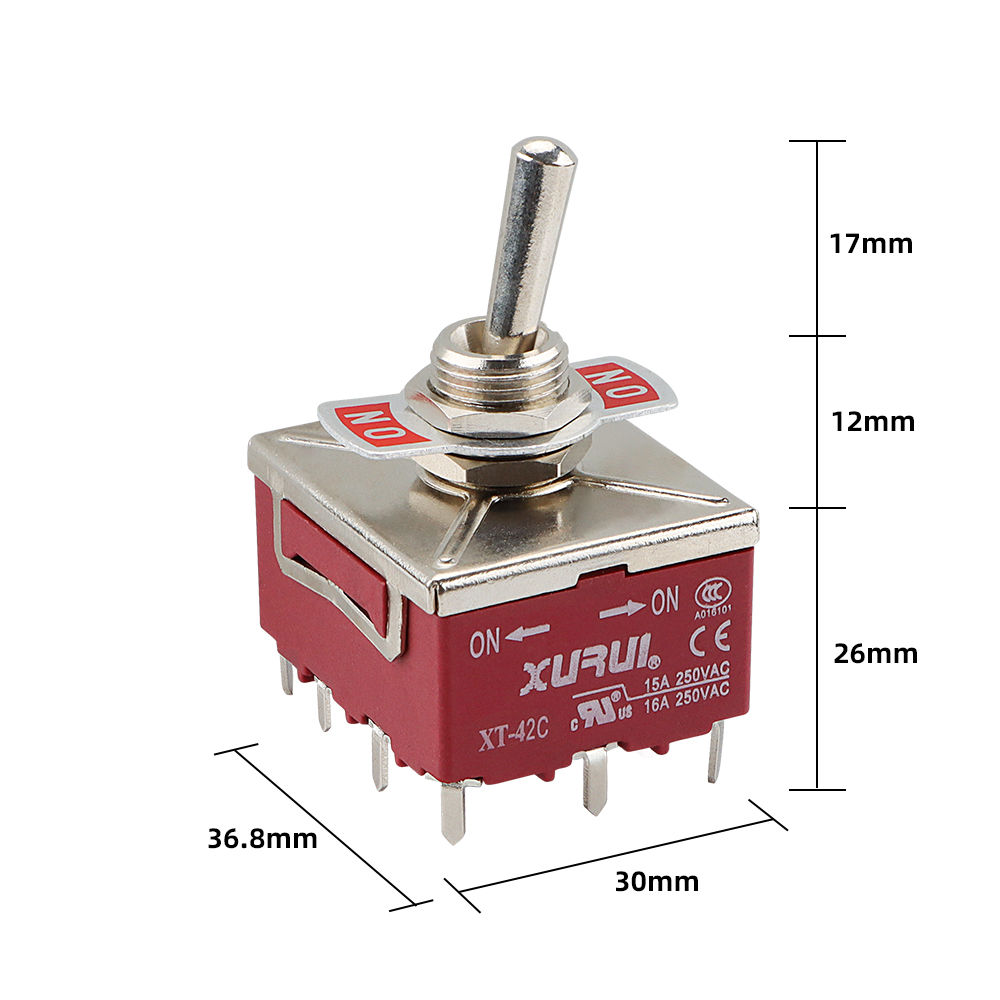

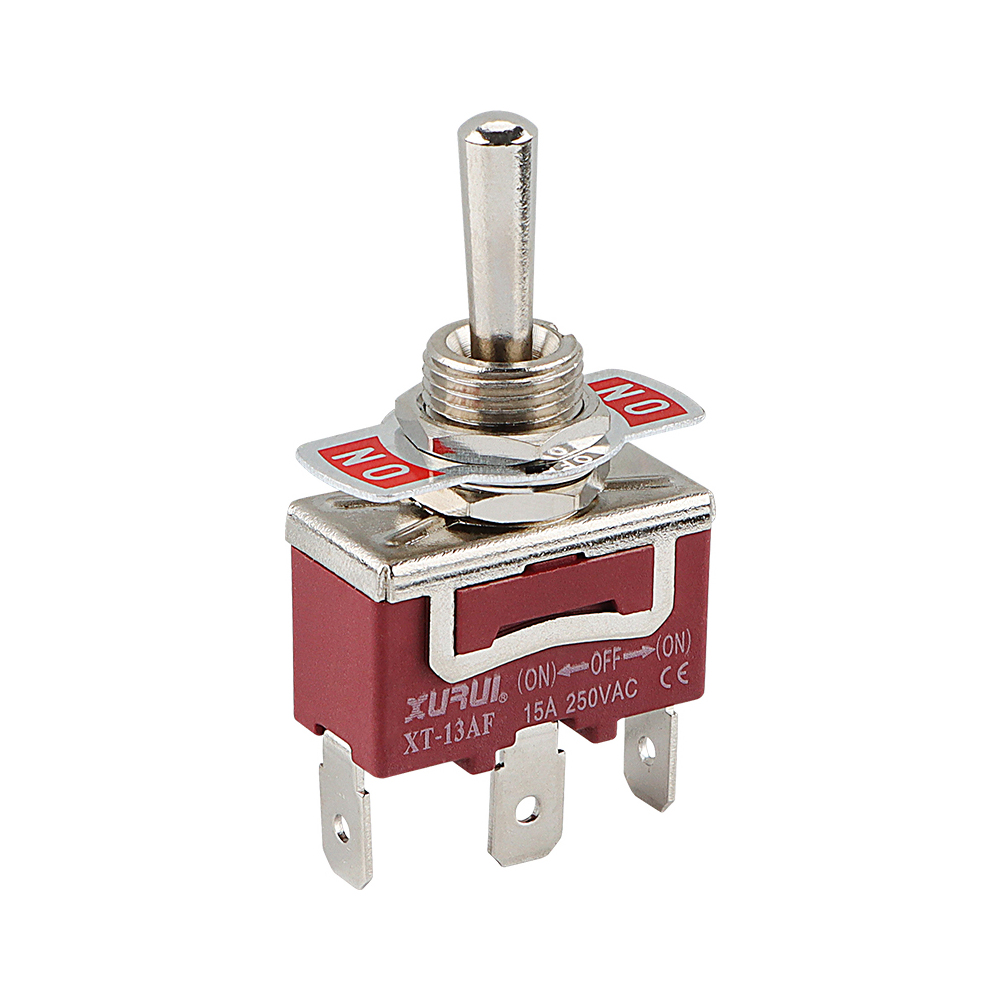

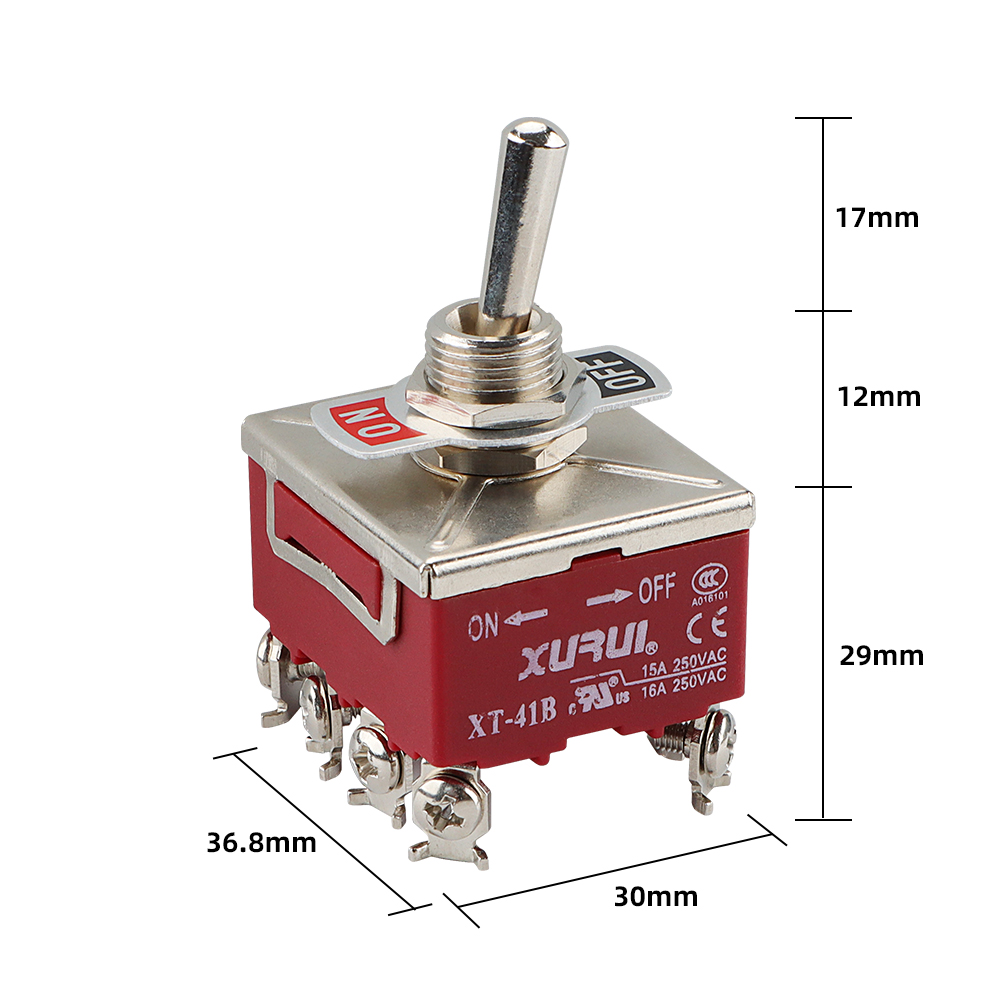

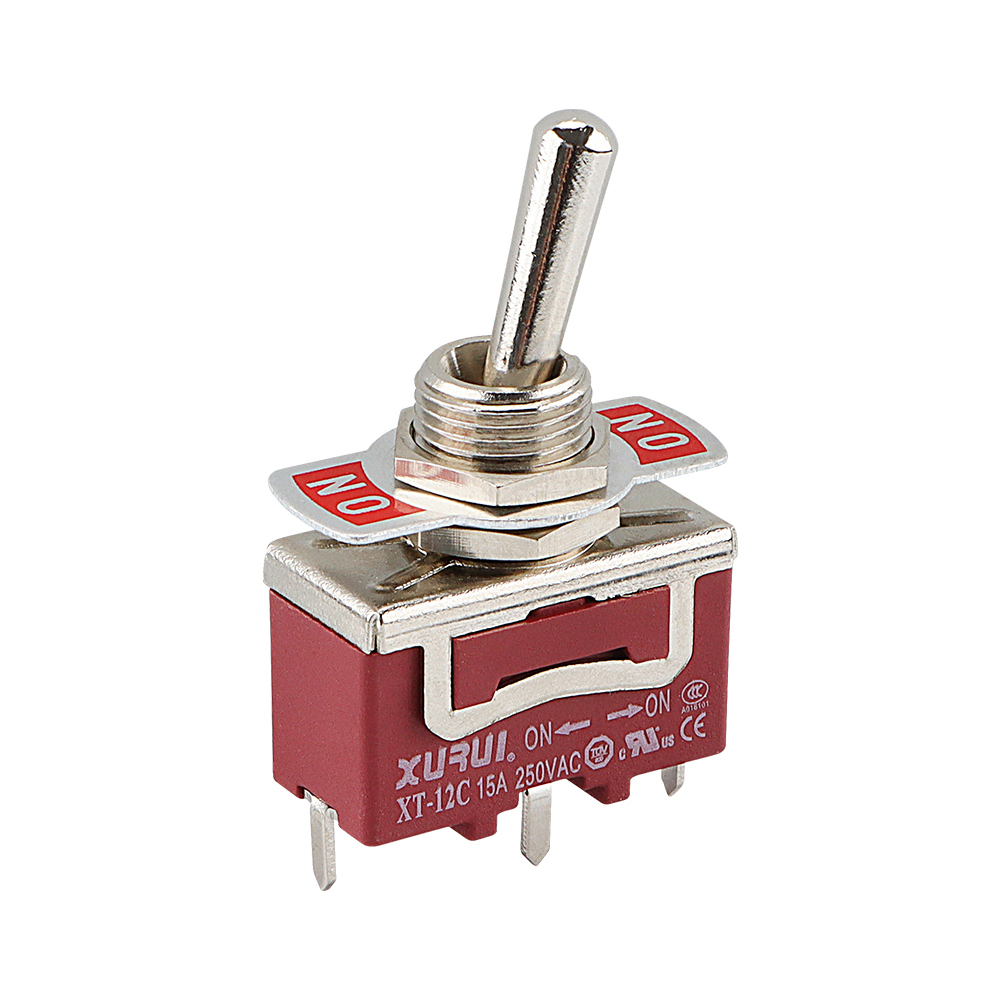

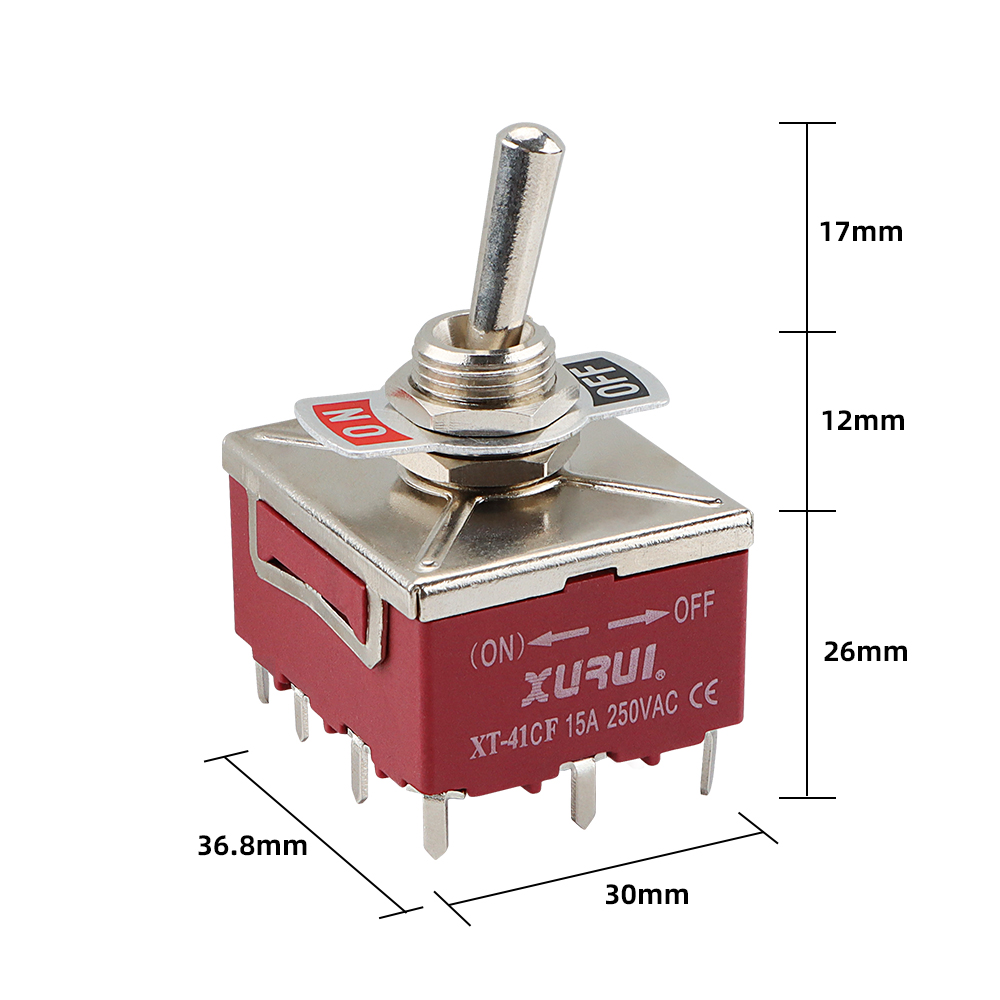

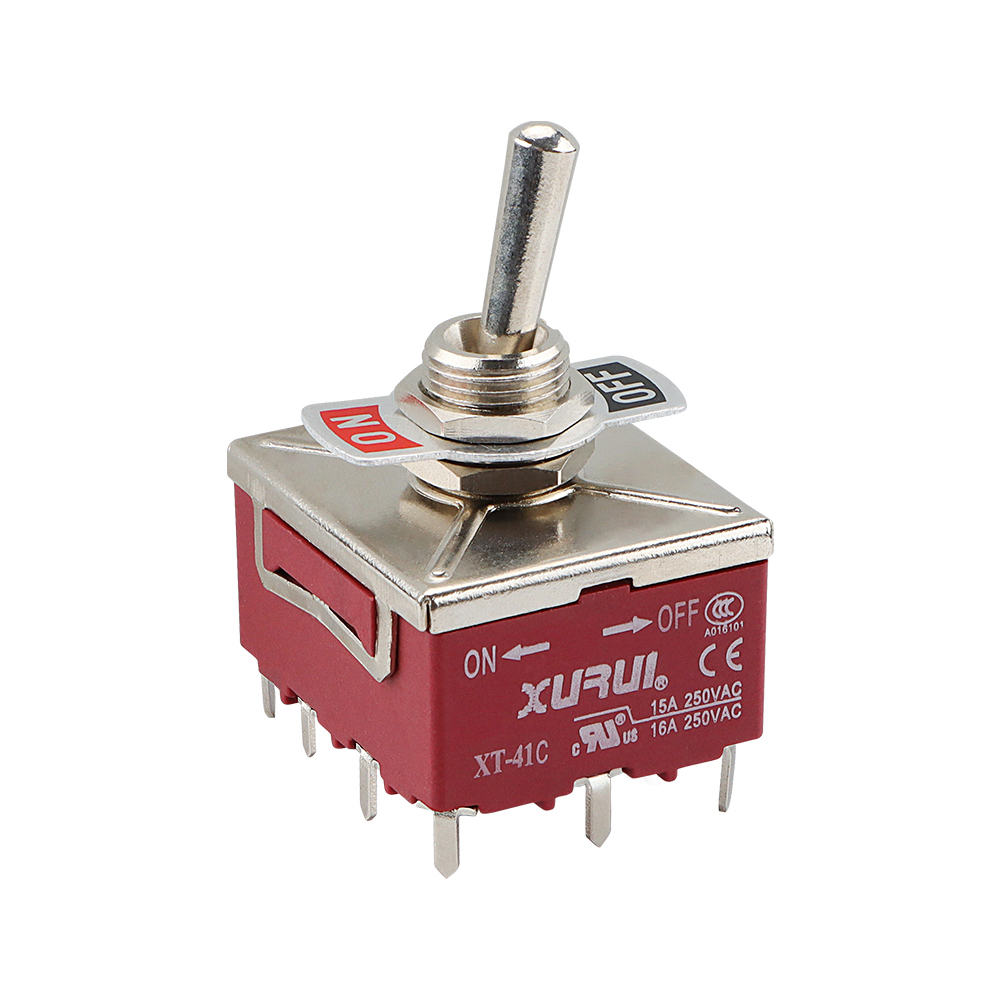

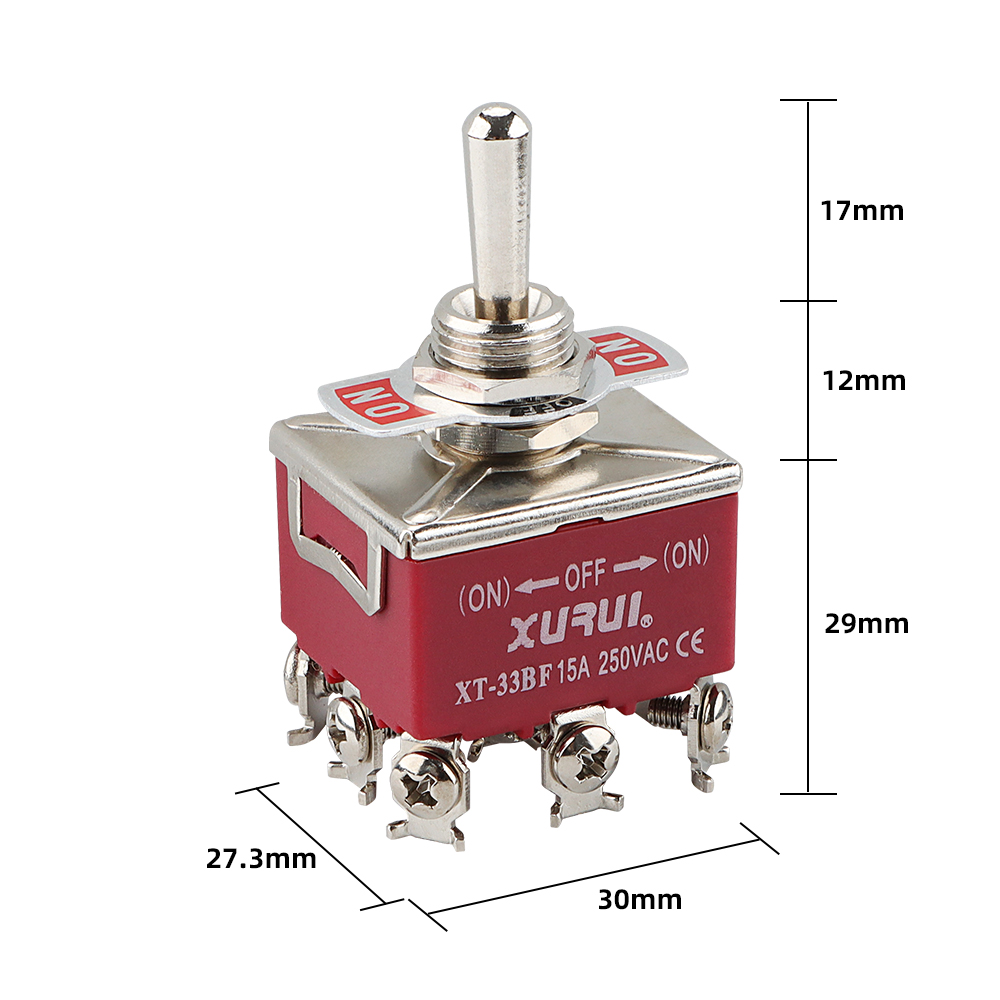

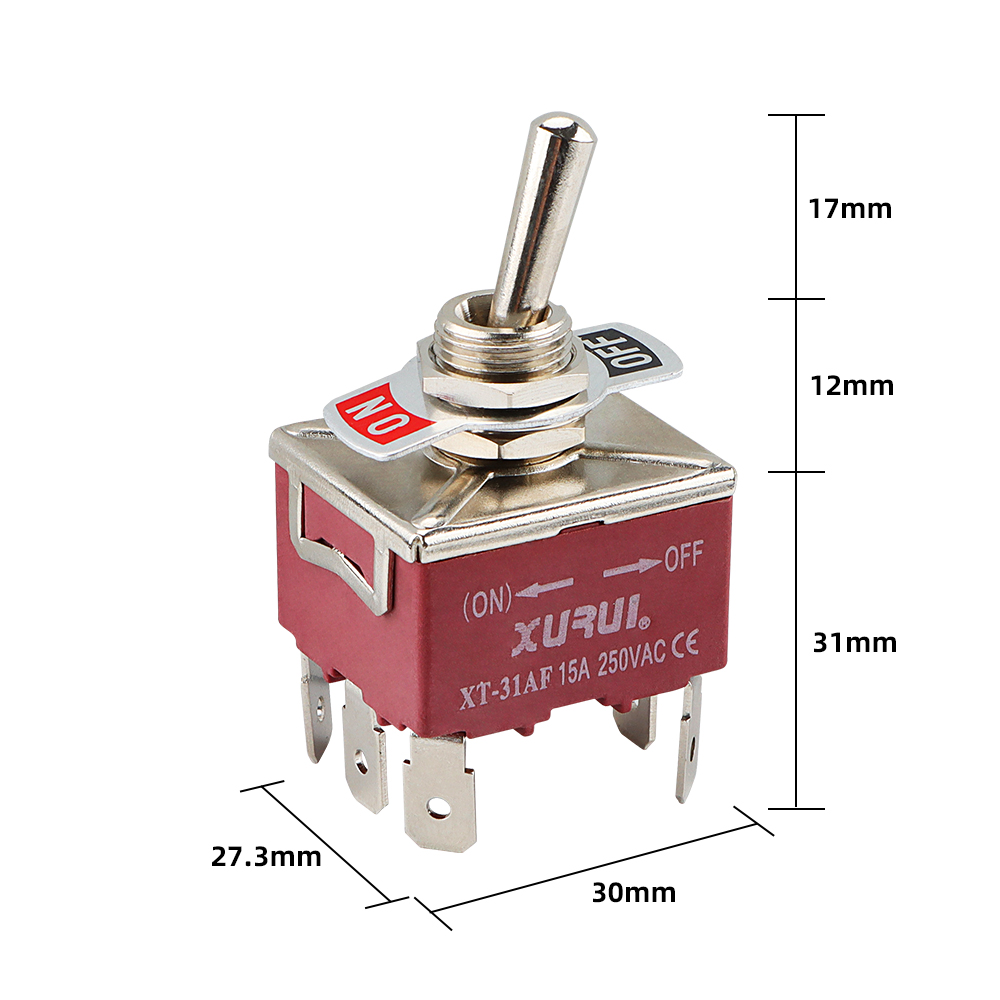

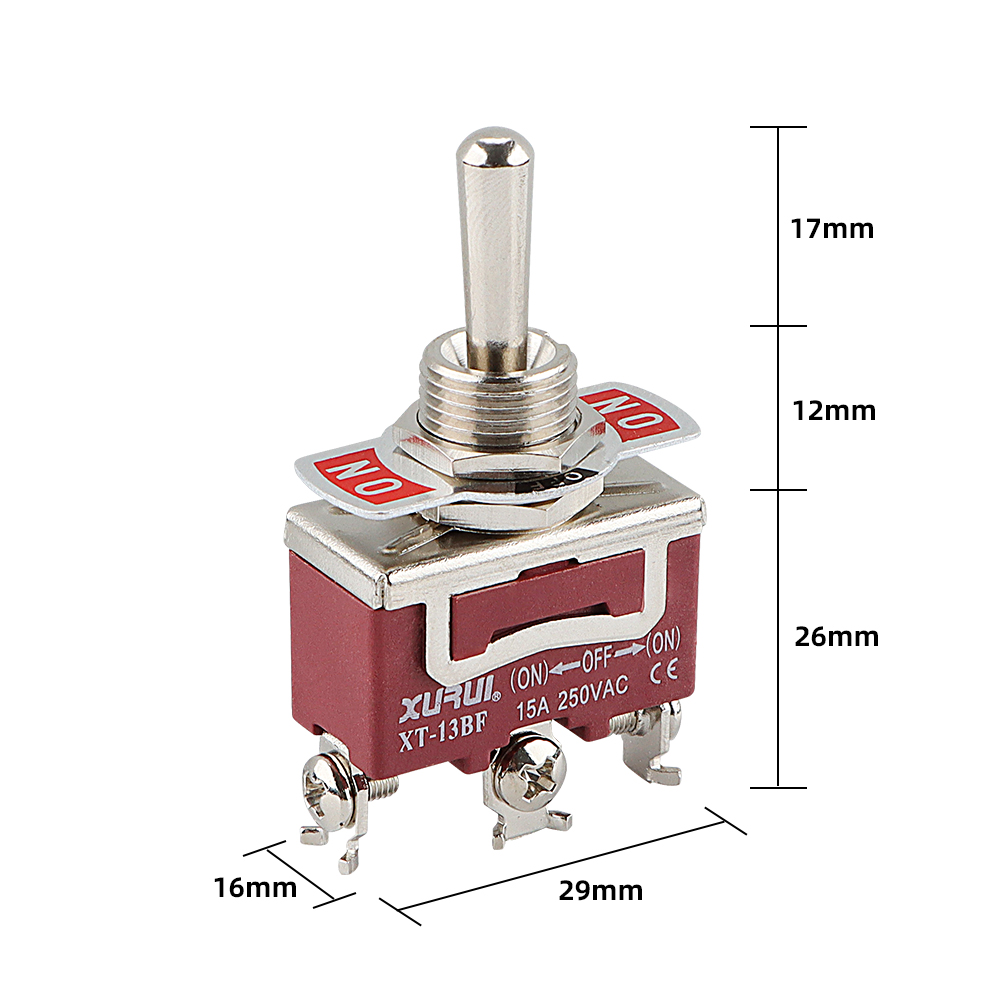

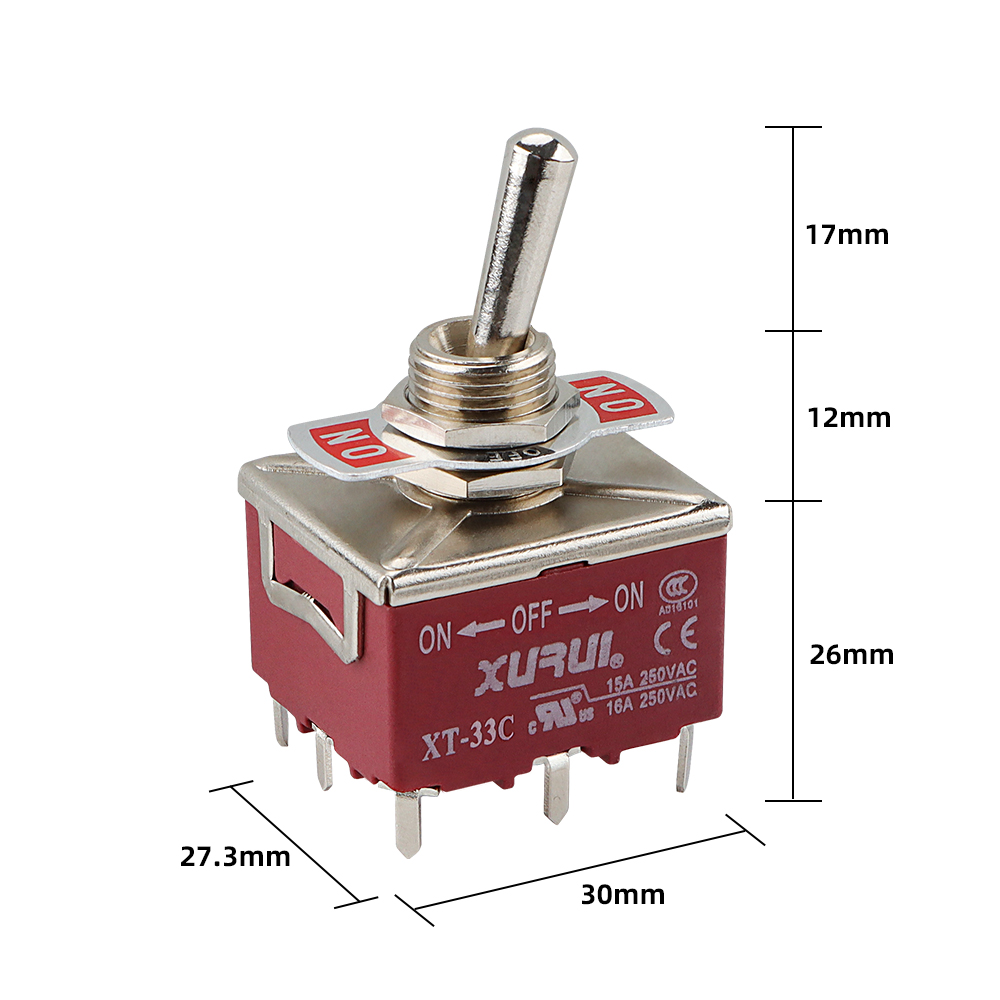

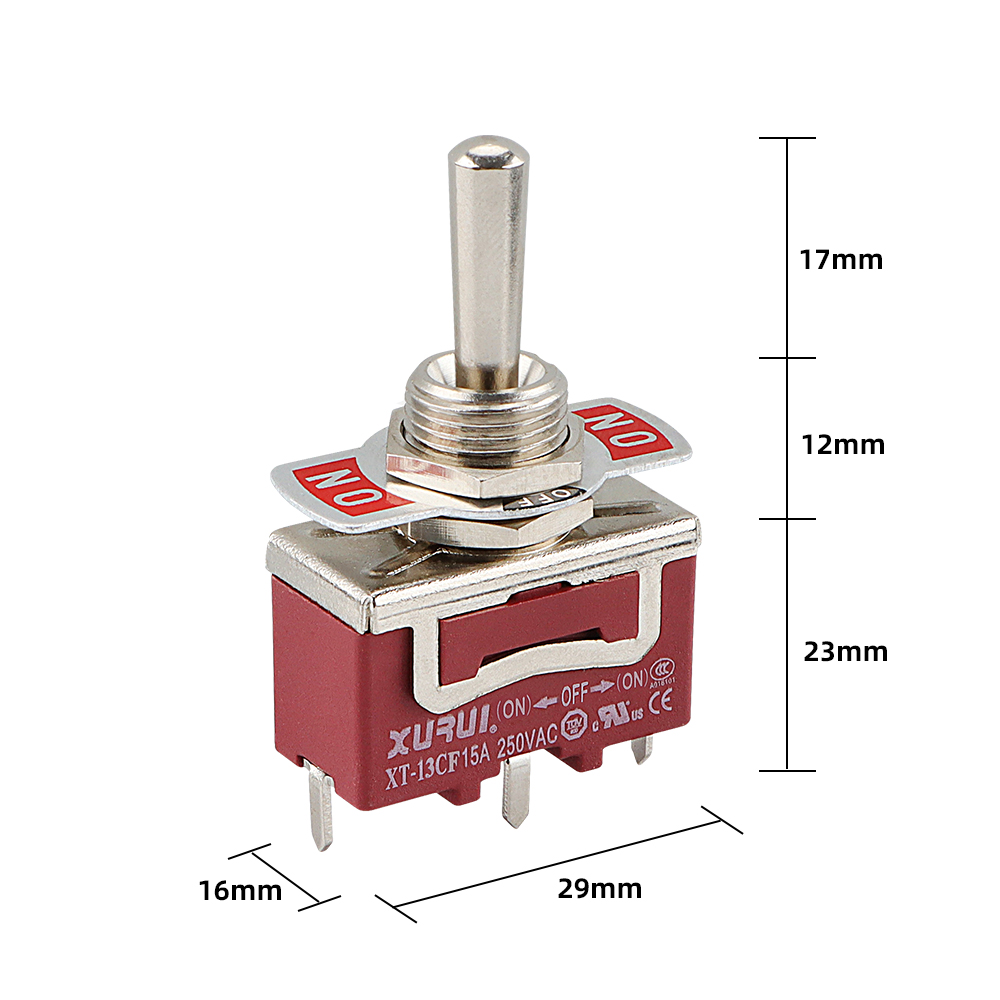

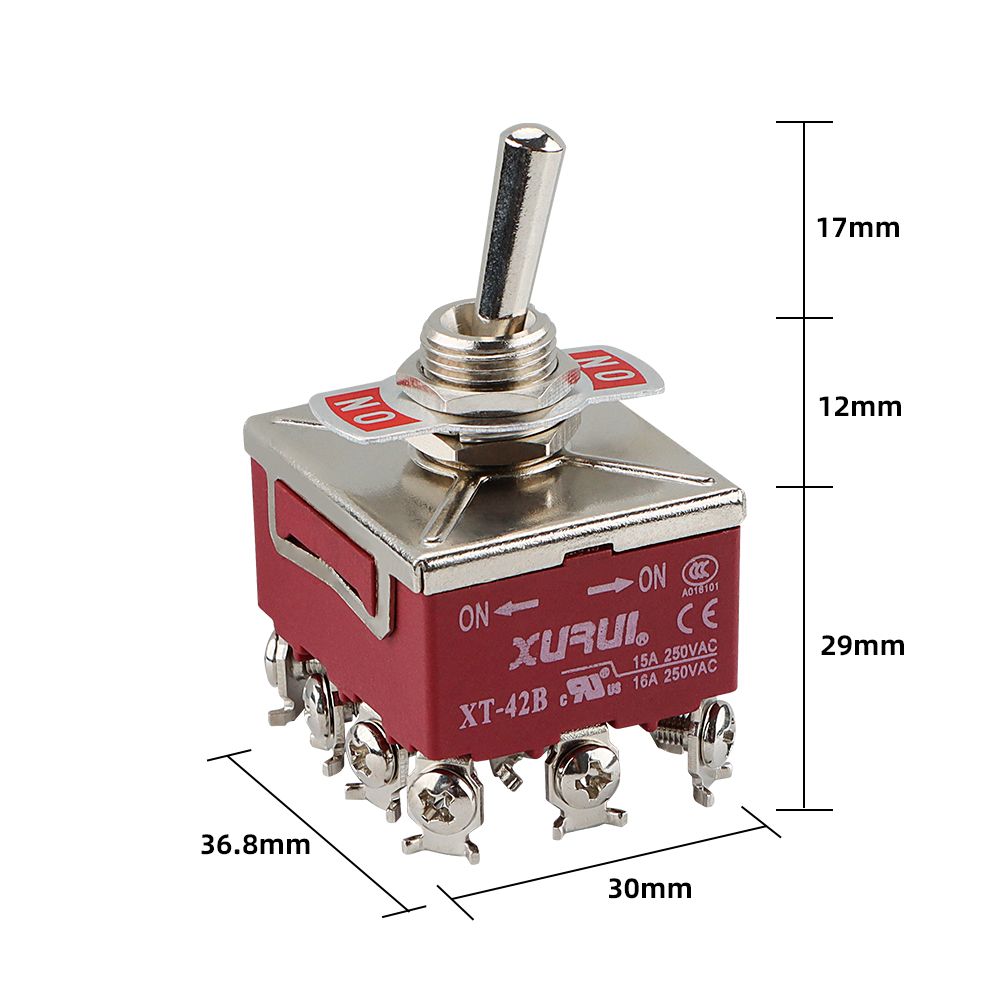

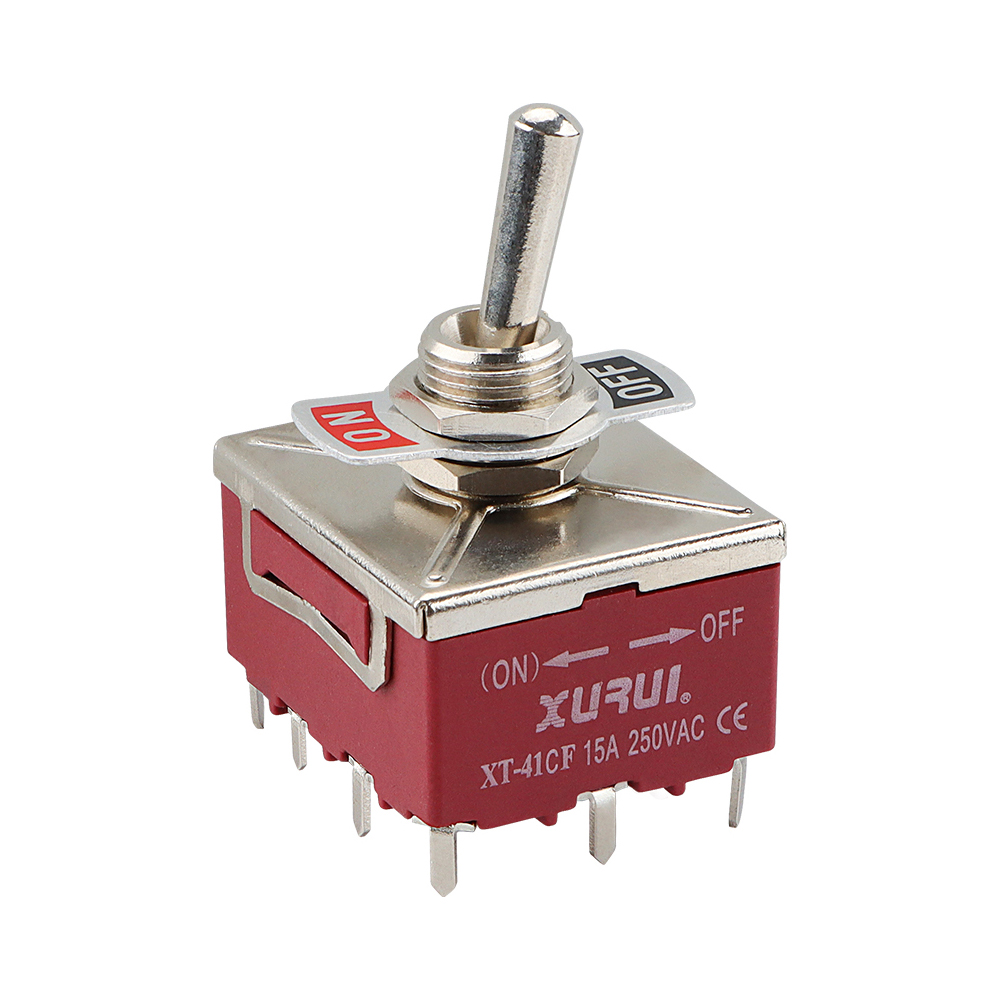

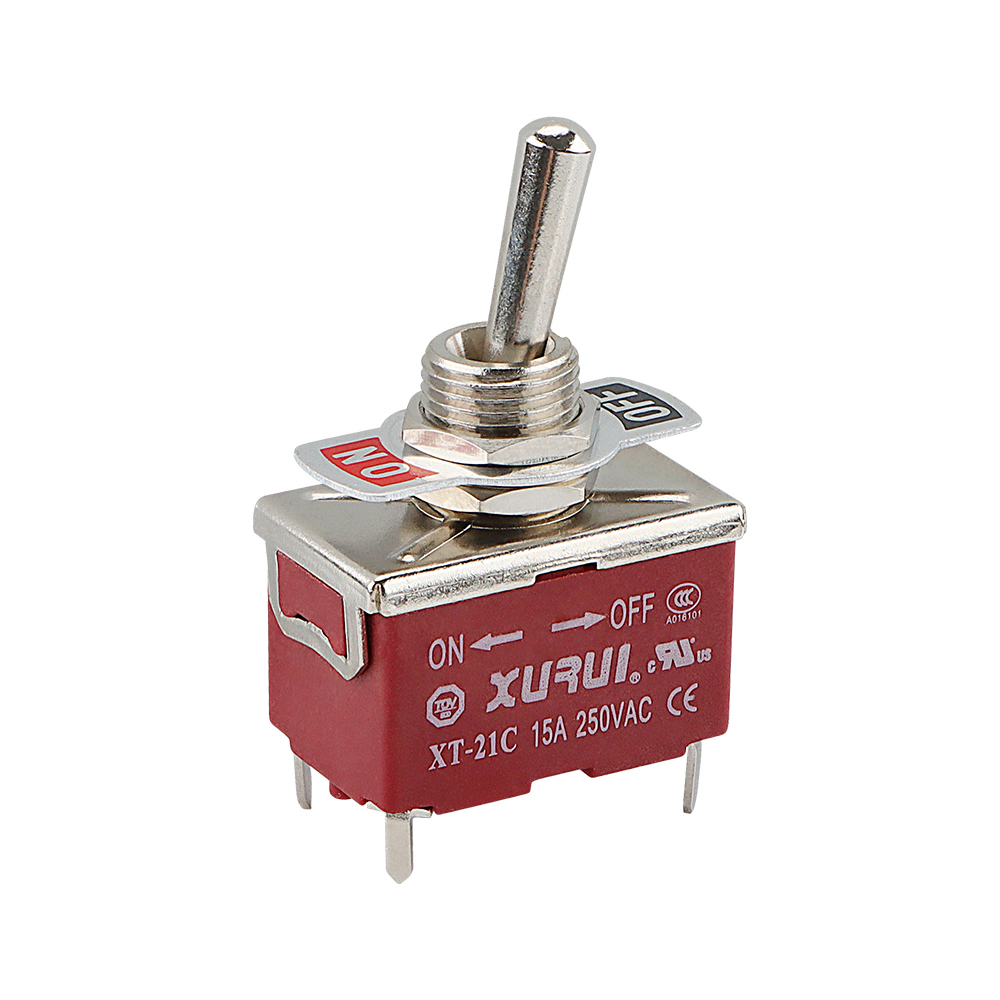

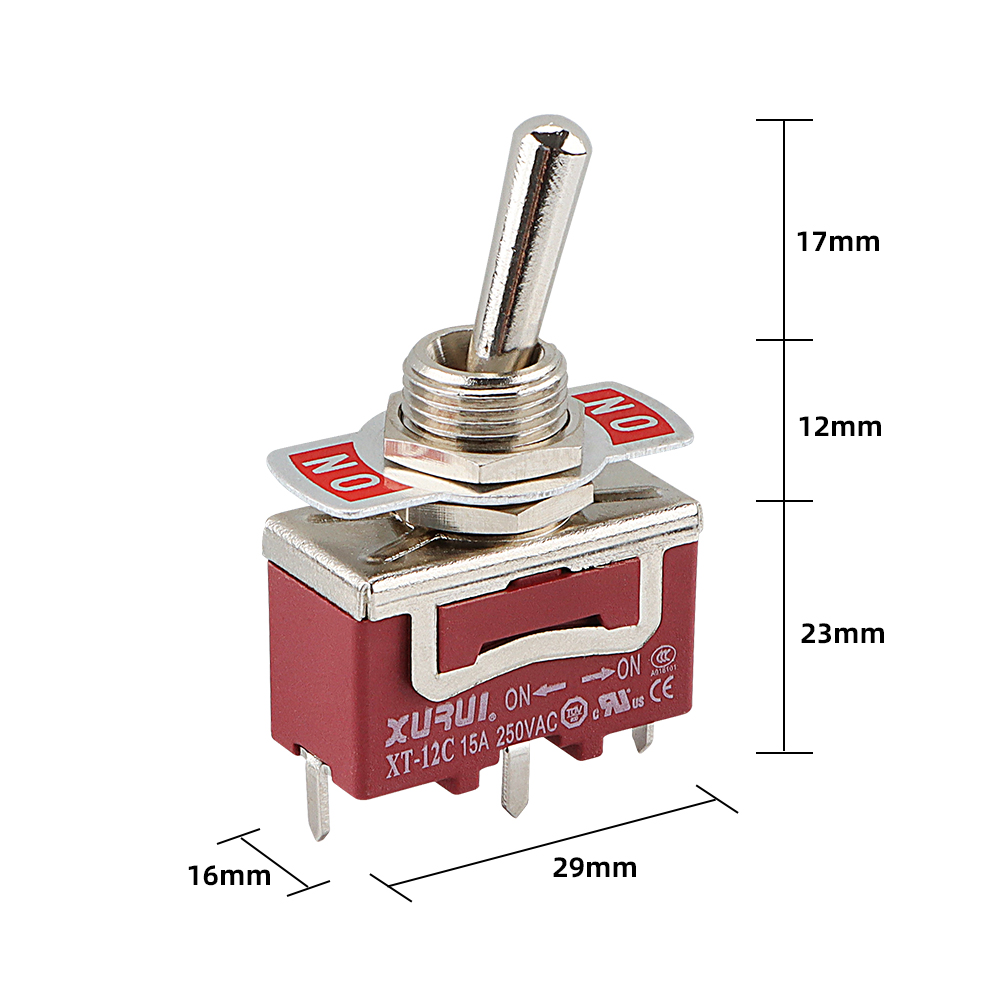

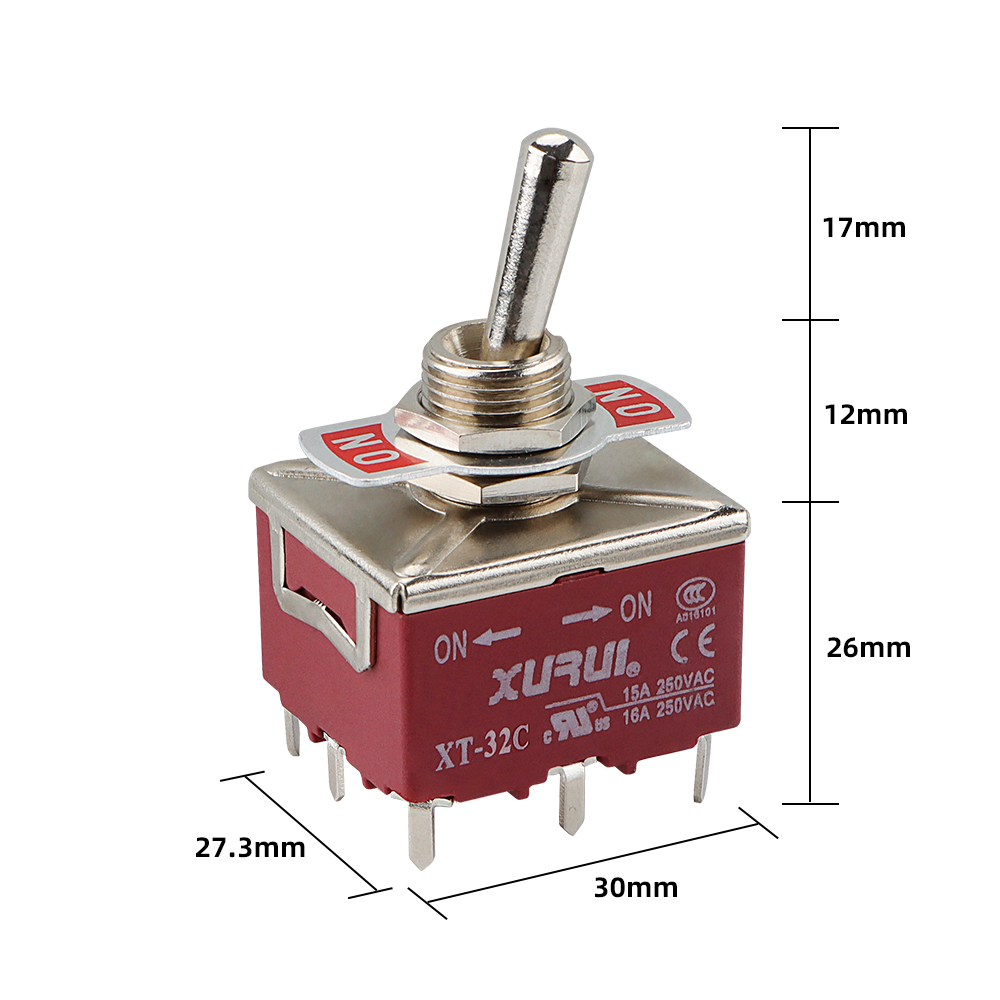

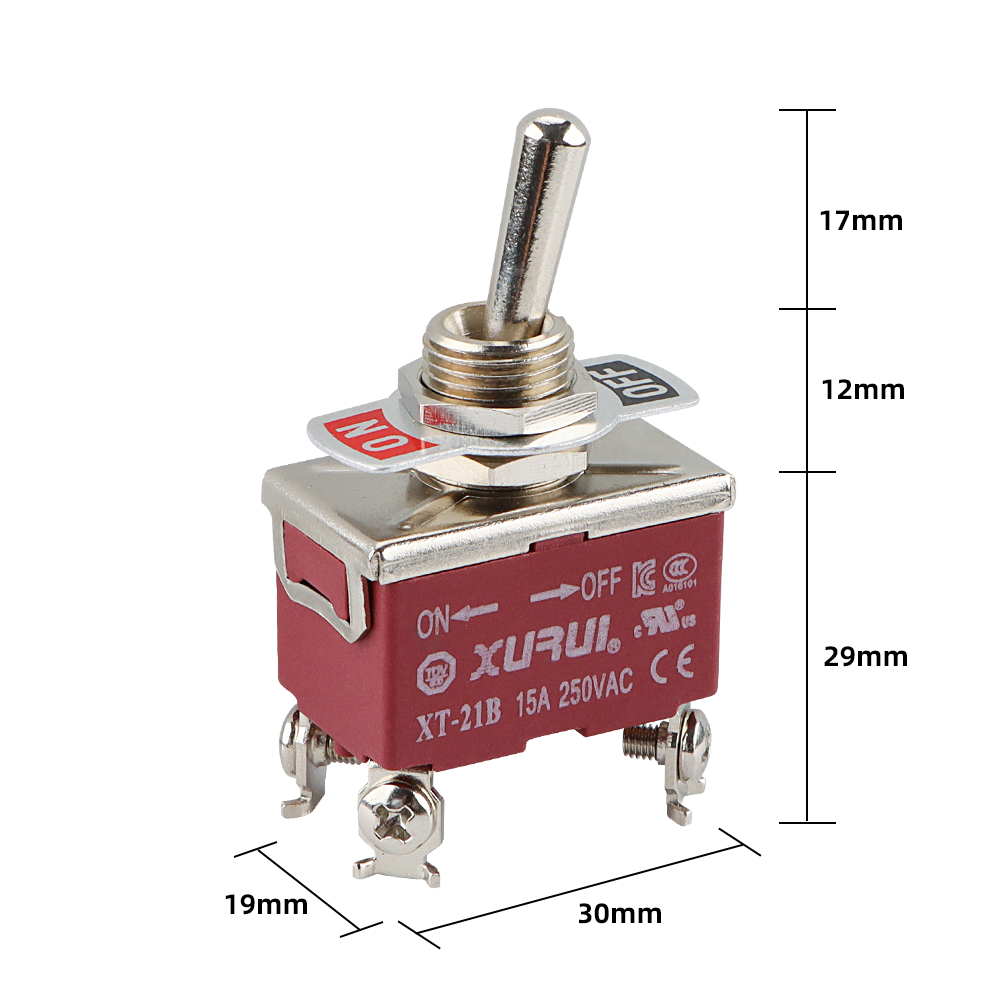

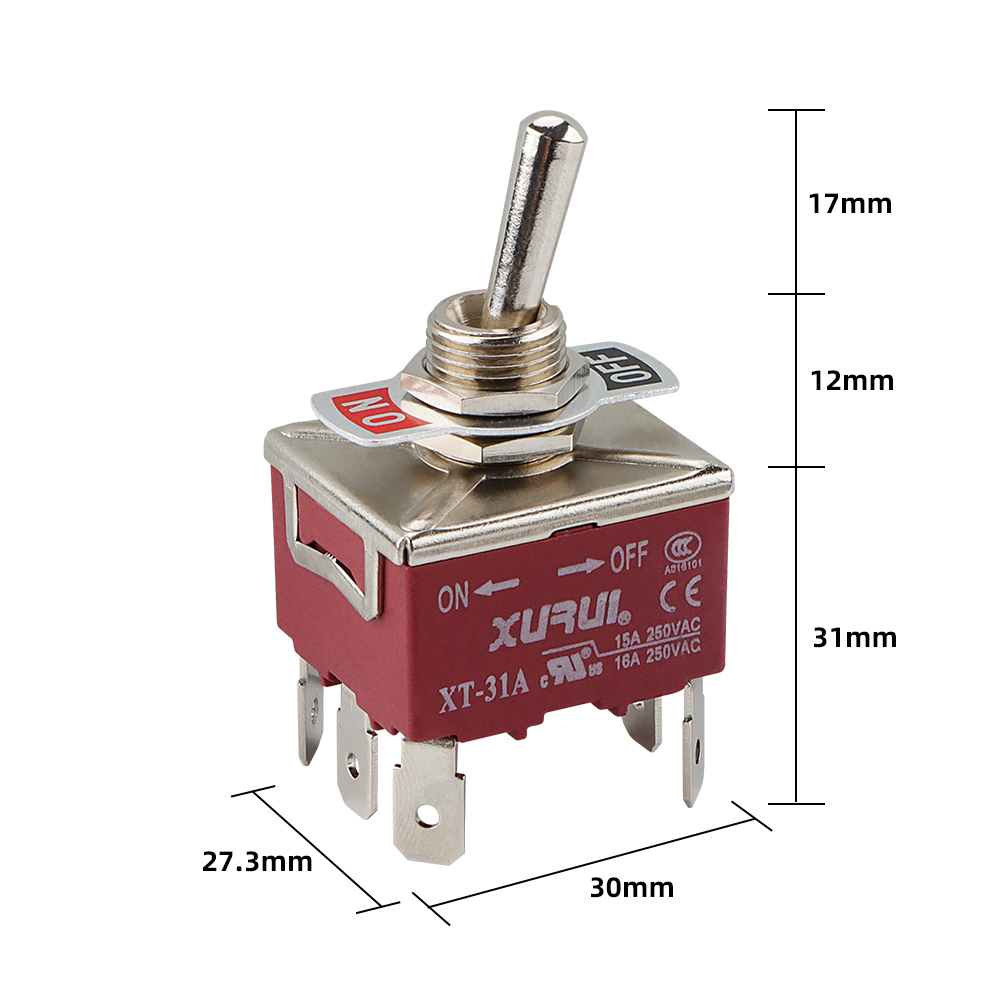

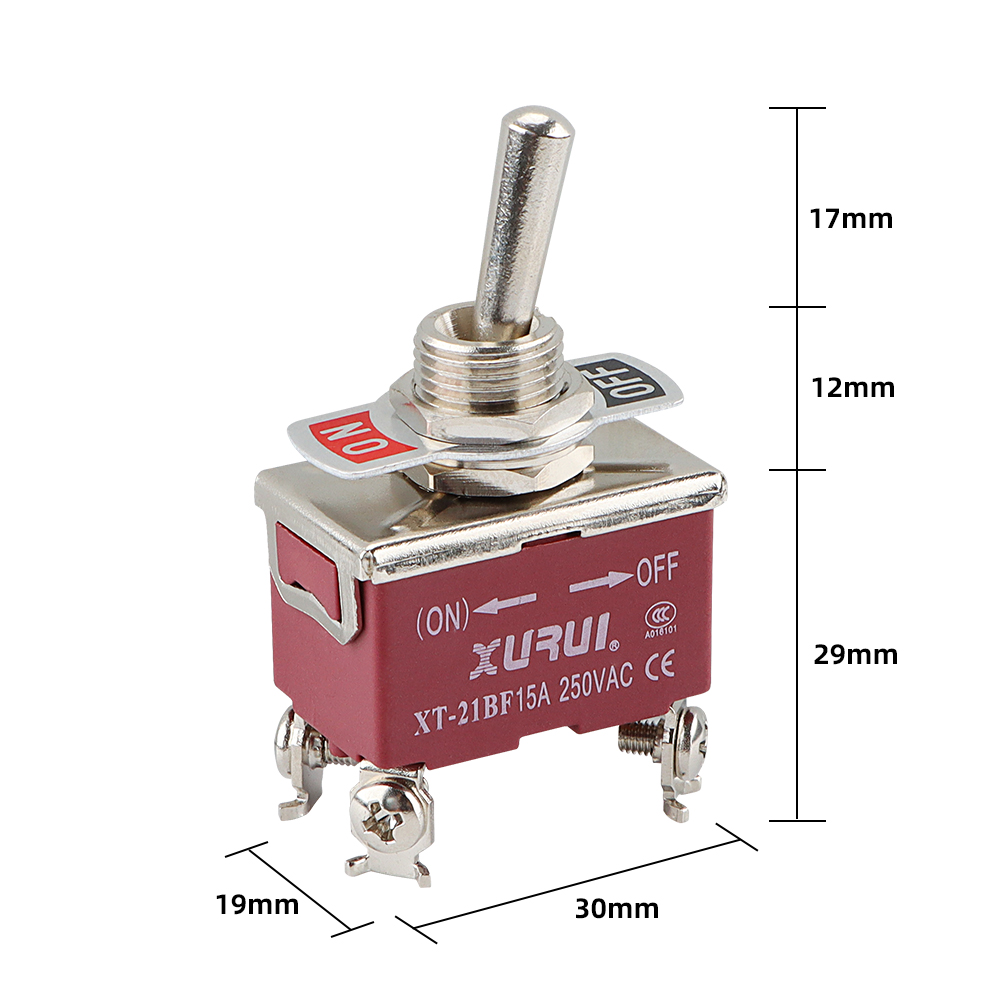

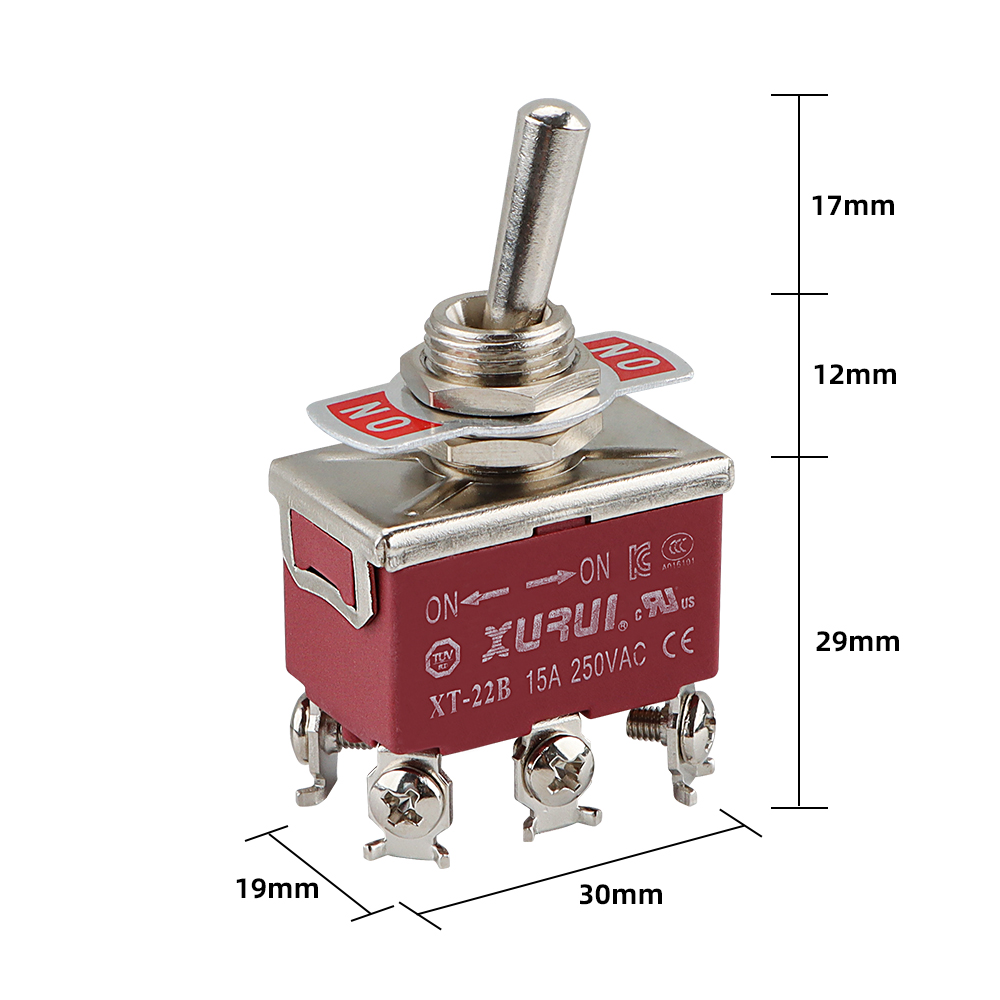

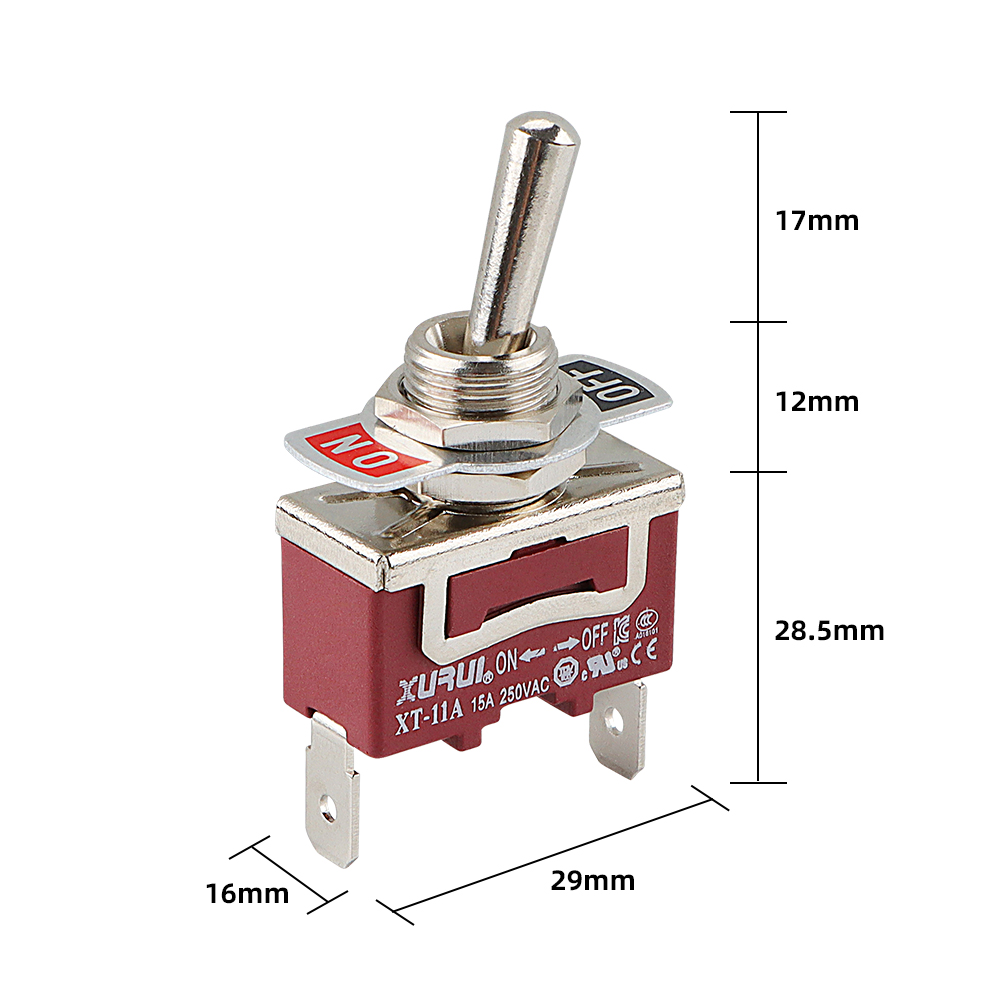

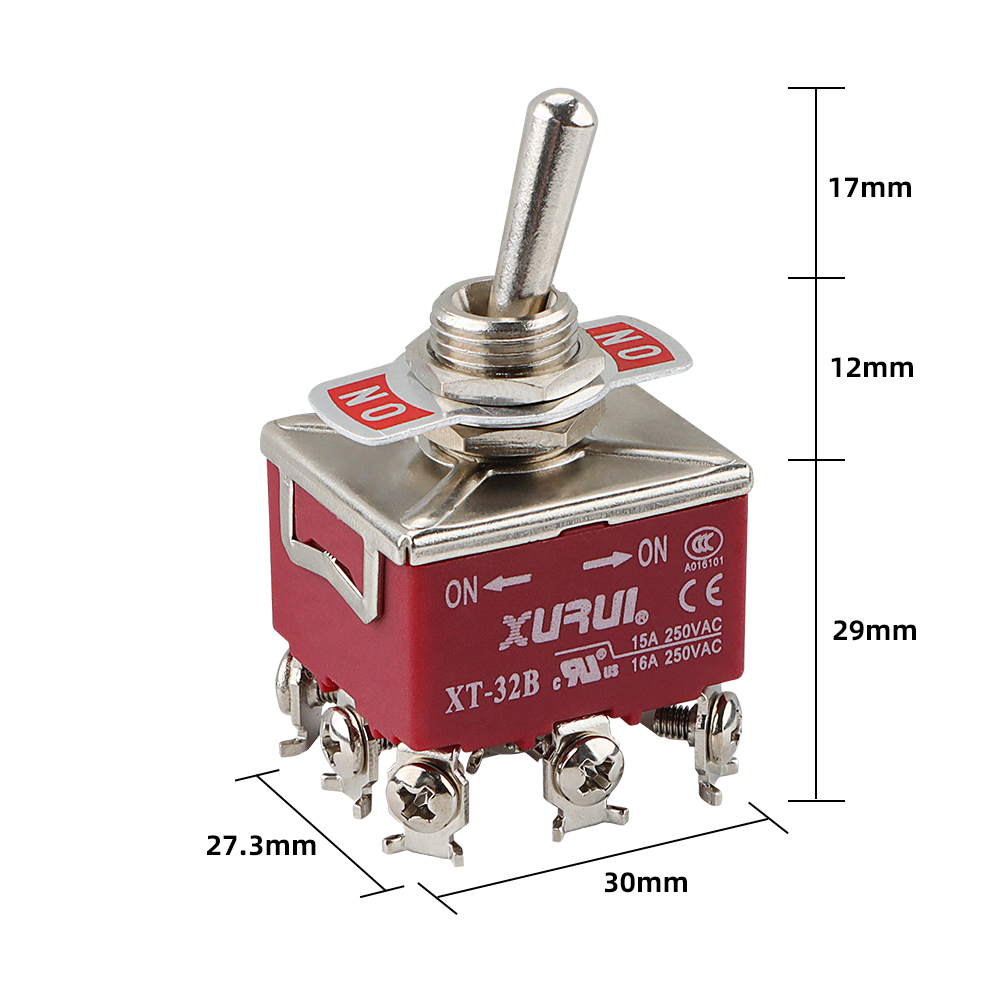

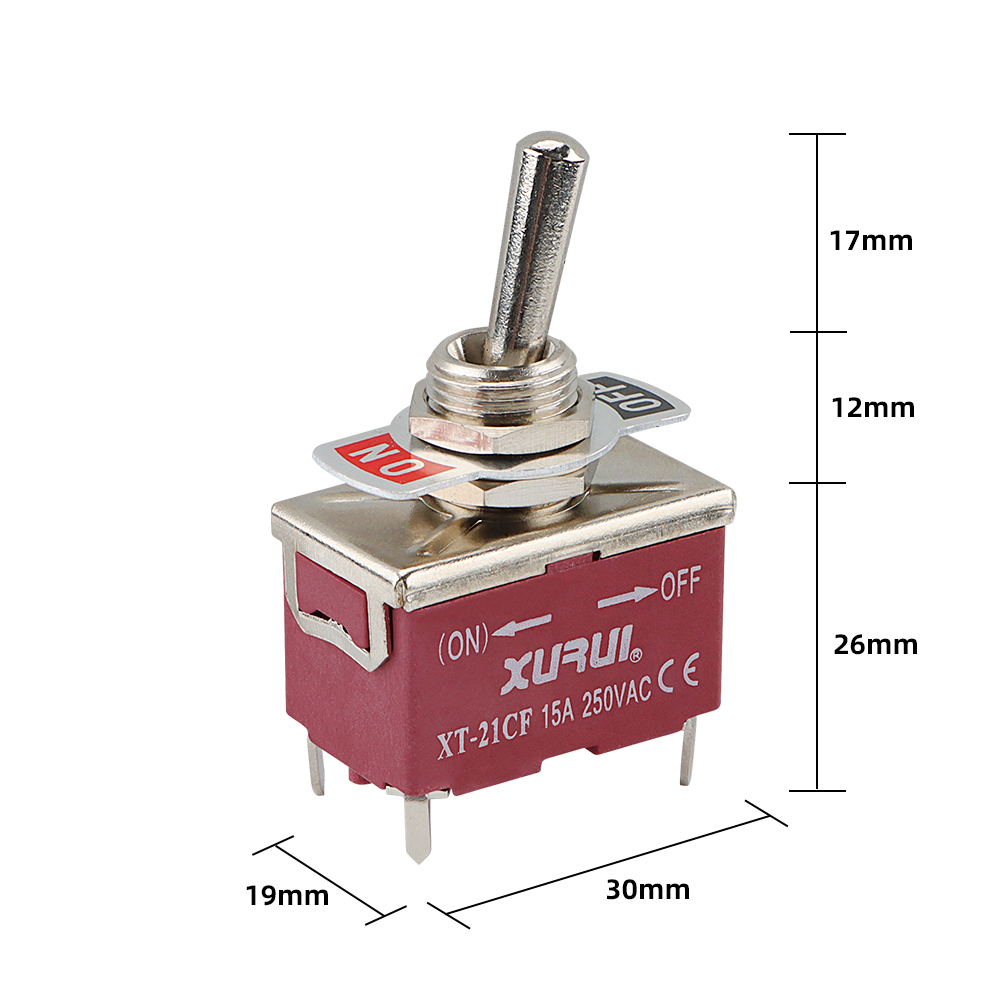

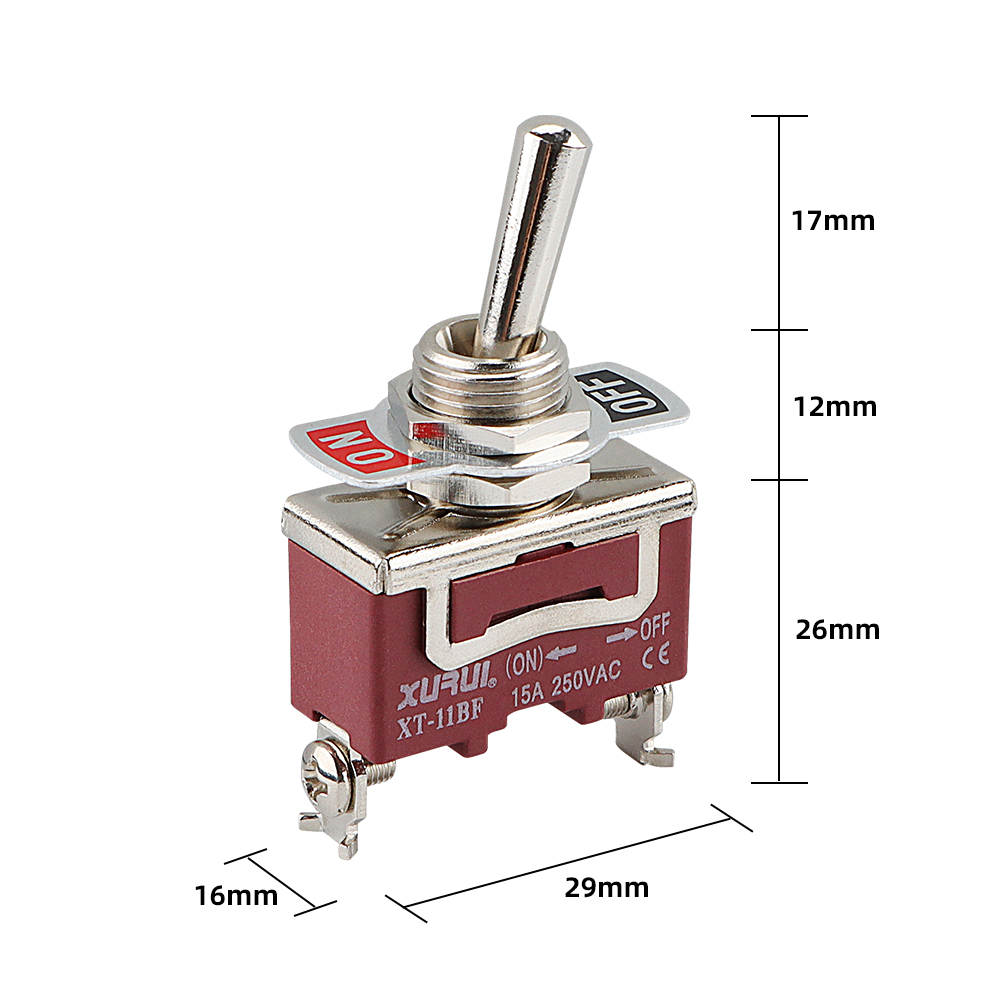

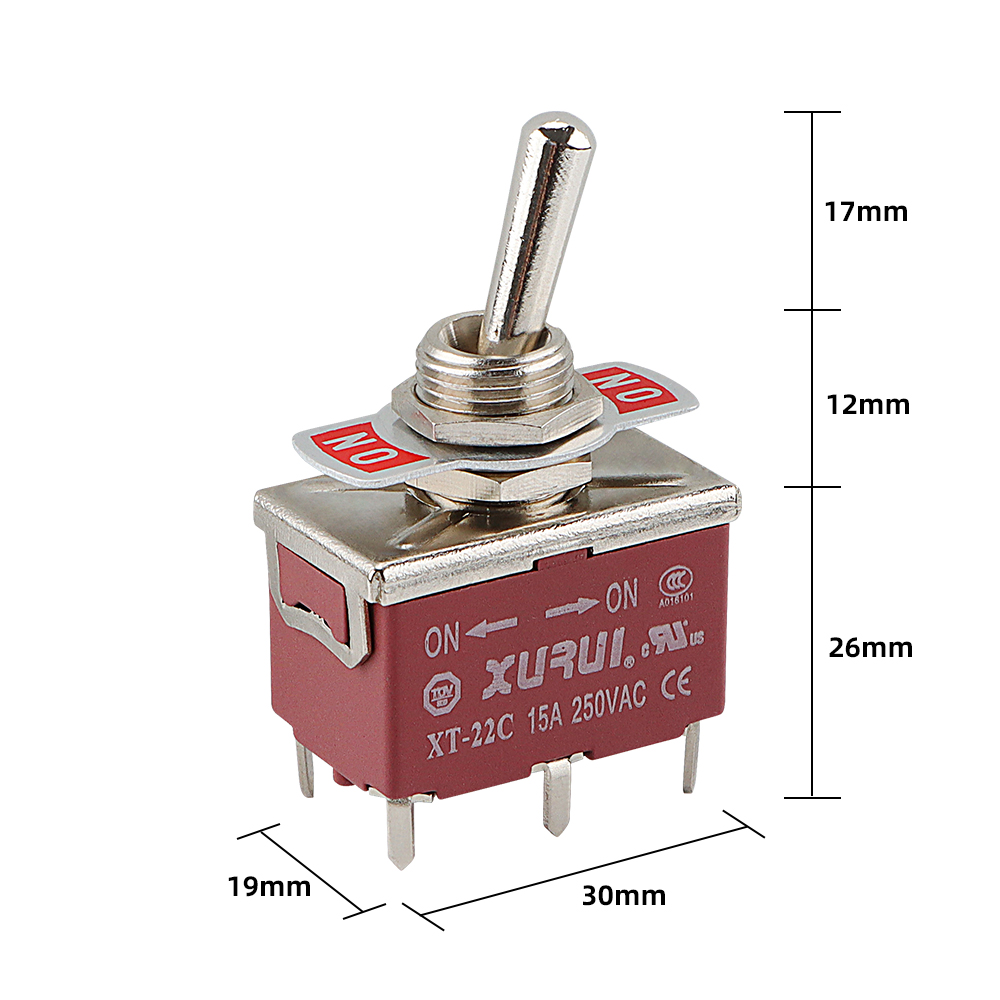

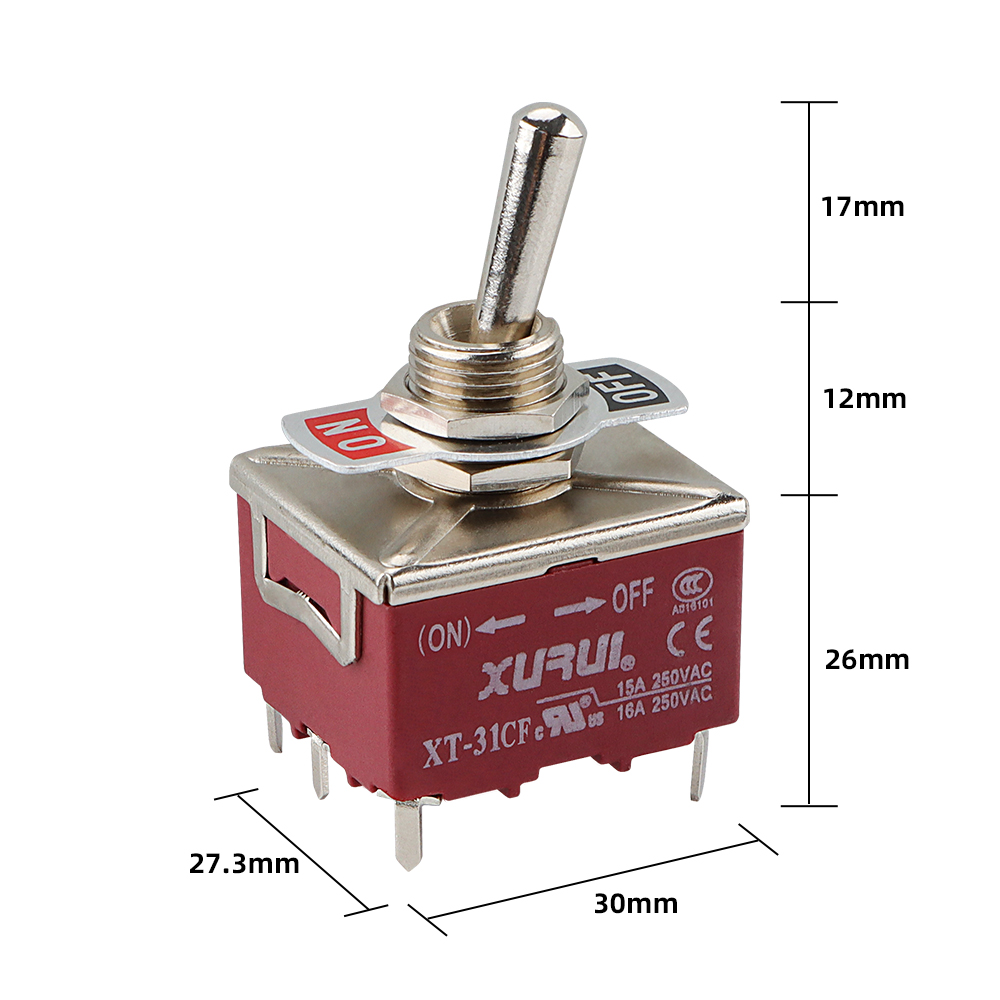

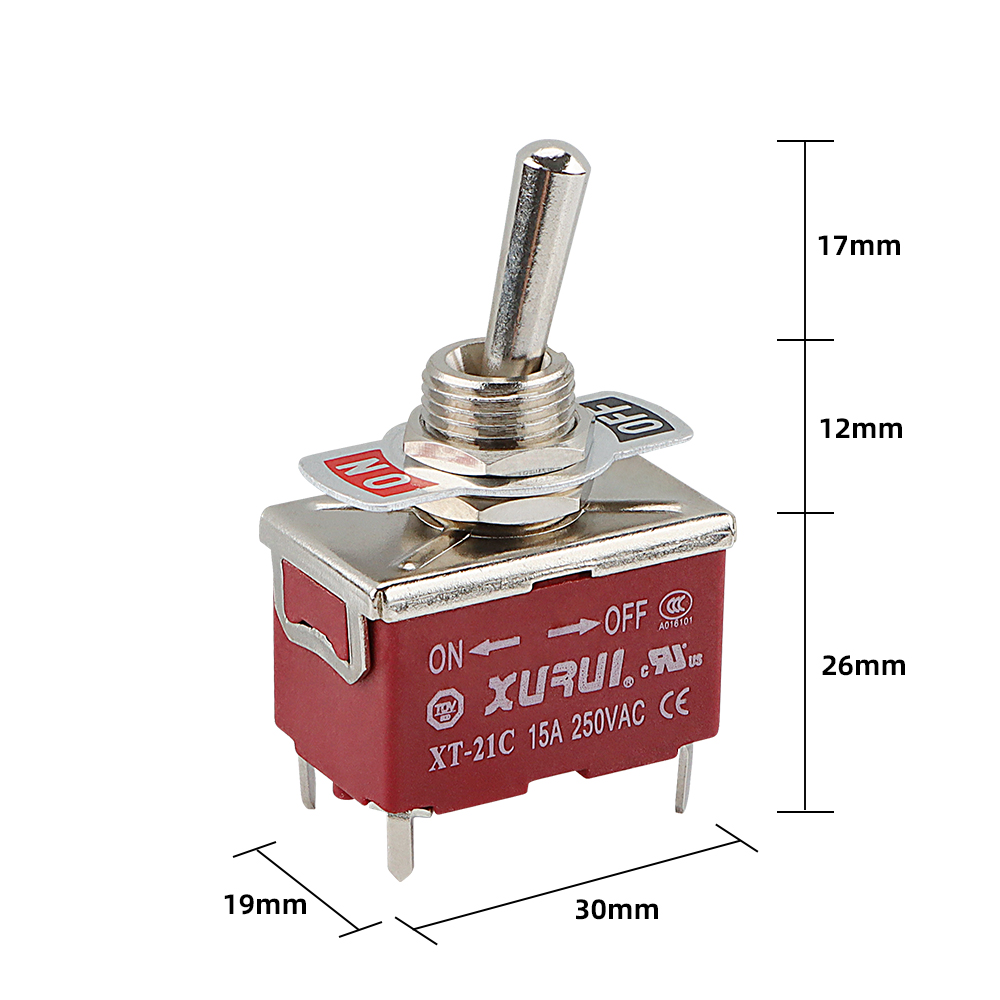

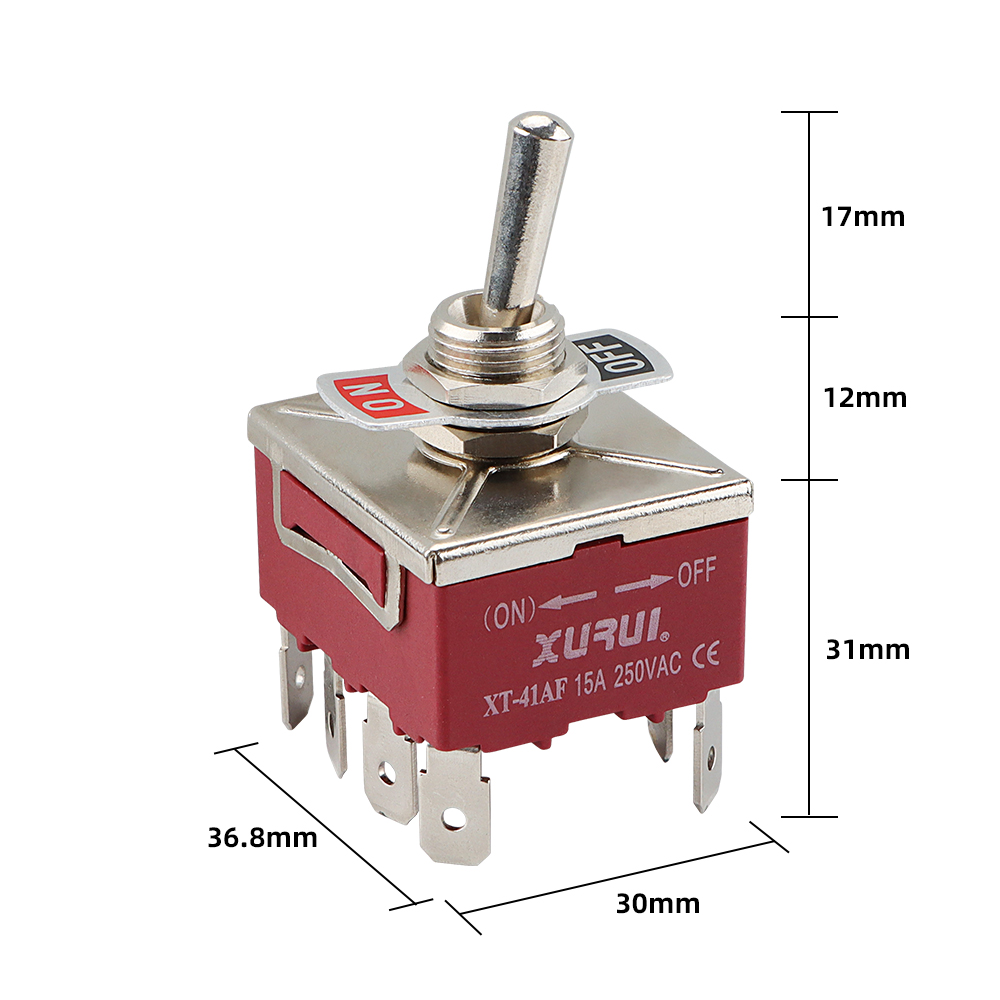

XT Series Heavy Duty Toggle Switch (15A / 25A)

The XT Series Heavy Duty Toggle Switch is a versatile industrial control switch designed for electrical equipment, automation systems, communication devices, instrumentation, machinery, and power control applications. Featuring a durable thermoplastic housing, multiple pole configurations, various contact functions, optional terminal styles, and maintained or momentary operating modes, the XT series provides reliable switching performance for a wide range of industrial and commercial applications.

With current ratings up to 25A, flexible circuit configurations, and dozens of model combinations, the XT series offers an ideal switching solution for equipment manufacturers requiring dependable performance, easy installation, and extensive configuration options.

Rated Load: 15A / 250VAC, 25A / 250VAC

Pole Options: SPST, SPDT, DPST, DPDT, TPST, TPDT, FPST, FPDT

Switch Functions: ON-OFF, ON-ON, ON-OFF-ON

Reset Type: Maintained Type / Momentary Auto Reset Type

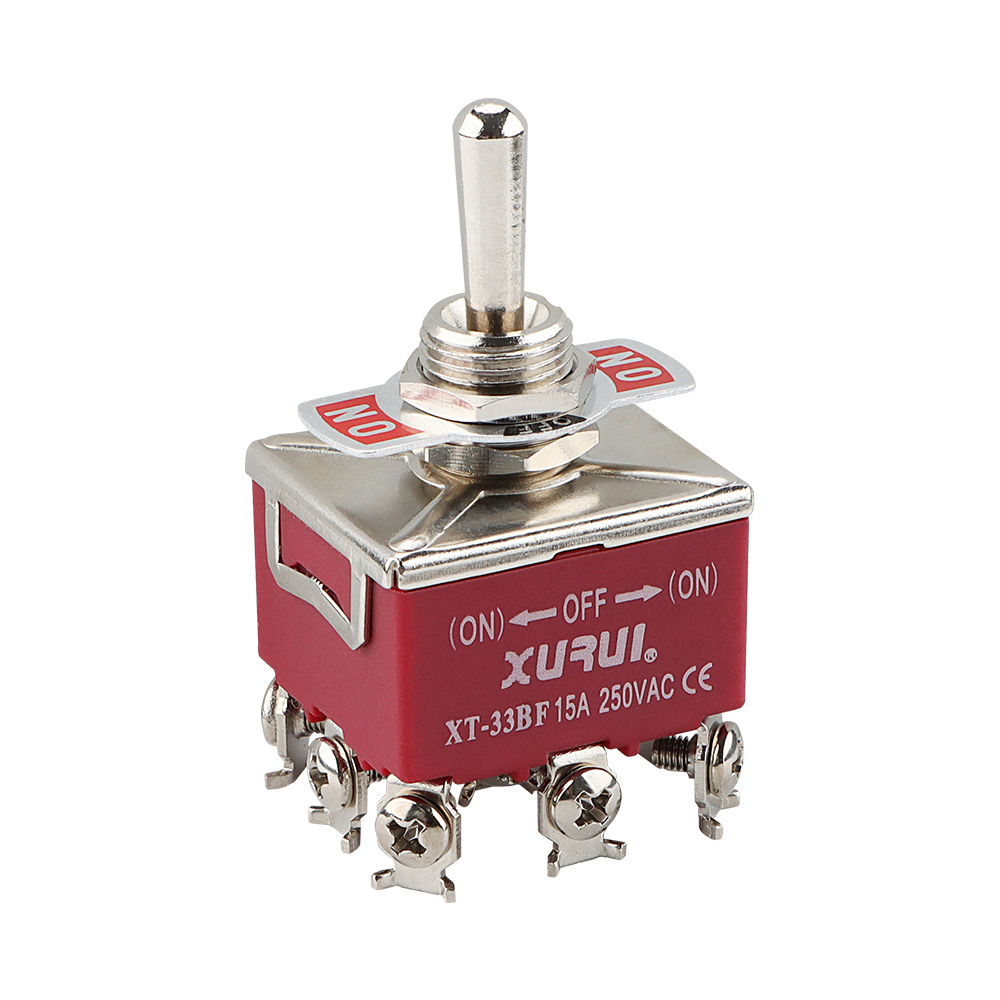

Terminal Type: Quick Connect Terminal, Screw Terminal, Solder Terminal

Protection Degree: IP40

Mechanical Life: ≥500,000 Operations

Electrical Life: ≥100,000 Operations

Operating Temperature: -25°C to +80°C

Insulation Resistance: ≥100MΩ (DC500V)

Contact Resistance: ≤25mΩ (Initial Value)

Get A Quote

Download

Product Features

Broad Application Range

Widely used in industrial automation equipment, power control systems, communication equipment, instrumentation, machinery, transportation equipment, testing devices, electrical panels, and general electrical control applications.
Wide Operating Temperature Range

Suitable for operation in environments ranging from -25°C to +80°C.
Stable Switching Action

Provides clear tactile feedback and reliable switching performance.

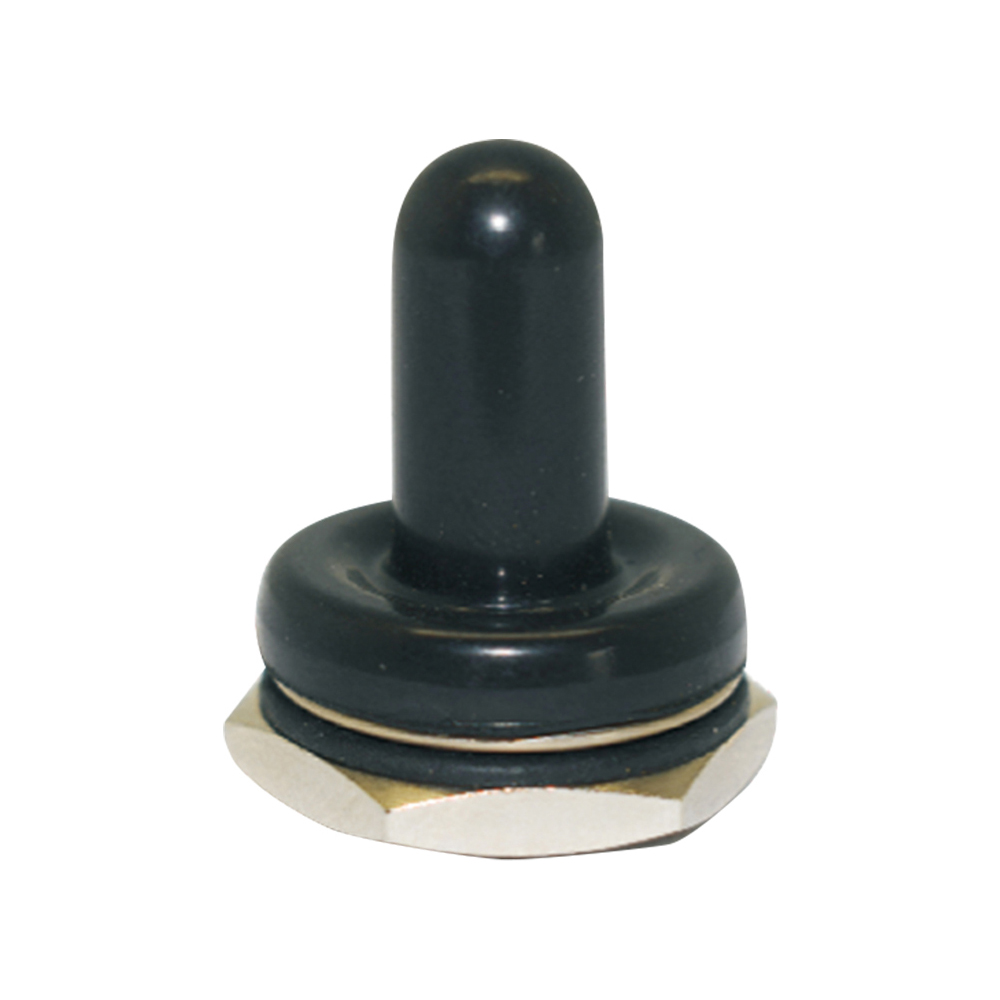

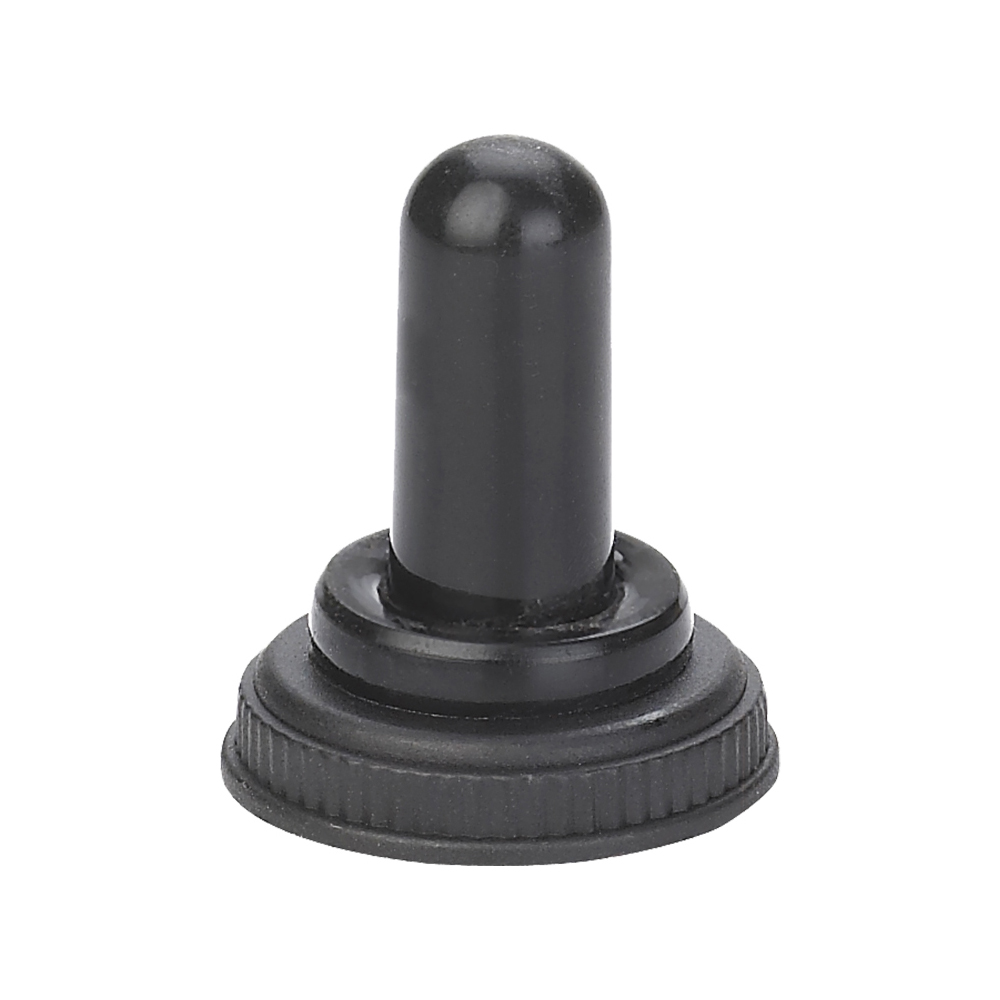

Optional Protective Cap

Optional protective cap improves resistance against dust, oil, and environmental contamination.
Standard Panel Mounting

Threaded mounting design allows easy installation on control panels and equipment enclosures.
Long Mechanical Service Life

Designed for more than 500,000 mechanical operations and 100,000 electrical operations.
Reliable Electrical Performance

Low contact resistance and high insulation resistance ensure stable signal transmission and dependable switching operation.
Durable Thermoplastic Housing

Constructed from high-strength thermoplastic material for excellent durability and long service life.
Multiple Terminal Options

Available with quick connect terminals, screw terminals, and solder terminals for convenient installation and wiring.
Maintained and Momentary Operation

Provides both maintained-position and automatic return versions to meet various equipment control and safety applications.
Flexible Switching Functions

Supports ON-OFF, ON-ON, and ON-OFF-ON switching actions for diverse control requirements.
Multiple Pole Configurations

Available in single-pole, double-pole, triple-pole, and four-pole versions to support a wide range of circuit designs.
Extensive Model Selection

Offers dozens of model combinations covering different poles, contact functions, terminal styles, and operating modes.
Heavy Duty Current Capacity

Available in 15A and 25A ratings for industrial equipment, machinery, and power control applications.

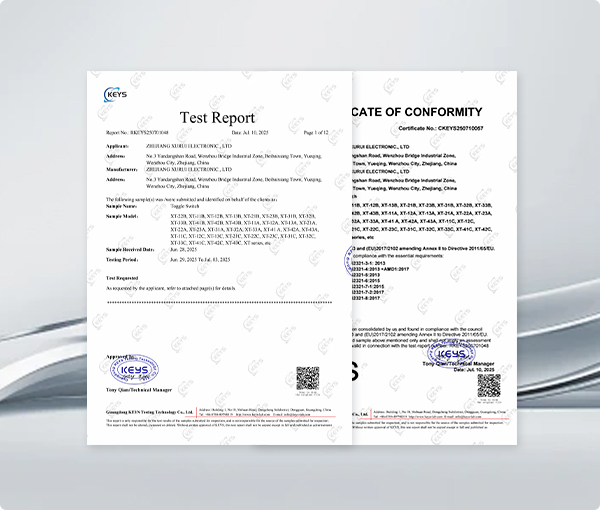

Product Certification

01Certification for the Chinese market

Compliant with GB national standards, with CCC and CQC certification for domestic sales and bidding compliance.
02EU Market Certification

Comply with CE, RoHS, REACH and EN standards, approved by TÜV & VDE, and support ATEX certification for explosive hazardous areas.
03North American Market Certification

UL, CUL and CSA certified, conforming to North American electrical safety specifications for US and Canada market access.
04Japanese, Korean, and Asian markets

Adapt to Japanese PSE and Korean KC certification, follow JIS and KS local standards to meet market access regulations of Japan and South Korea.

Product Introduction & Process

1

Raw Material Inspection

Brass, copper alloys, steel frames, silver-alloy contacts, engineering plastics, springs, balls, plungers, toggle levers, bushings, terminals, seals, and mounting hardware are inspected before production.

2

Metal Component Stamping

Frames, contact carriers, terminal plates, support brackets, and conductive components are manufactured using precision stamping dies. Dimensions, bending angles, hole positions, and flatness are monitored.

3

Lever and Bushing Machining

Toggle levers, threaded bushings, shafts, and mounting components are machined to the required dimensions. Thread accuracy, lever straightness, surface finish, and component fit are verified.

4

Surface Treatment

Metal components undergo nickel plating, chrome plating, zinc plating, tin plating, silver plating, or another specified surface treatment. The coating improves corrosion resistance, solderability, conductivity, and appearance.

5

Contact Riveting

Silver-alloy contact points are riveted or welded onto the fixed terminals and movable contact bridges. Contact position, bonding strength, height, and surface condition are inspected.

6

Insulating Base Injection Molding

The insulating base, cover, terminal support, and internal spacers are precision injection molded. Critical dimensions, terminal slots, insulation walls, and assembly interfaces are checked.

7

Toggle Mechanism Assembly

The lever, bushing, shaft, spring, ball, plunger, rocker, and positioning components are assembled. The mechanism is configured for two-position, three-position, momentary, or maintained operation according to the model.

8

Contact Bridge Assembly

The movable contact bridge and return mechanism are installed into the insulating base. Contact pressure, alignment, gap, wiping action, and switching sequence are adjusted.

9

Terminal and Circuit Assembly

Terminals are inserted and secured in the insulating base. SPST, SPDT, DPST, DPDT, or multi-pole contact arrangements are assembled according to the required circuit configuration.

10

Housing Closing and Crimping

The metal frame or housing is joined to the insulating base through precision crimping, riveting, screws, or another model-specific process. The housing must securely retain the internal mechanism without restricting movement.

11

Sealing Component Installation

For sealed models, O-rings, panel seals, lever boots, epoxy terminal seals, or protective covers are installed. Sealing material is cured under controlled conditions where applicable.

12

Mechanical Parameter Testing

Lever angle, operating torque, detent force, return force, position retention, movement consistency, and momentary-return function are measured.

13

Electrical Performance Testing

Each switch is tested for contact continuity, circuit configuration, contact resistance, insulation resistance, dielectric strength, terminal strength, and switching sequence.

14

Endurance and Environmental Verification

Sample units undergo mechanical life, electrical load life, solderability, terminal pull, vibration, impact, temperature, humidity, and ingress protection tests according to the applicable requirements.

15

Final Inspection and Packaging

Lever type, circuit code, terminal style, thread size, mounting hardware, waterproof boot, markings, appearance, and operating function are inspected. Approved products are batch-coded and packaged to protect the lever and terminals during transportation.

Customization & Delivery

We support the following types of customization

Electrical Parameter Customization :

Custom voltage & current, AC/DC type, zero-cross or random trigger.
Mounting Structure Customization :

Custom mounting, terminals and non-standard dimensions.
Heat Dissipation & Protection Customization :

Custom heat dissipation, high isolation, potting and anti-corrosion protection.
Function Upgrade Customization :

Overheat/overcurrent protection, anti-interference, delay and soft start optional.
Appearance & Brand Customization

Custom logo, marking, OEM/ODM and personalized solution design.

Proofing Cycle

Regular customization: 3-7 working days
Complex Customization: 7-15 working days
Urgent Sampling: 24-72 hours
Proofing Cost ( $ )

2222 US dollars
MOQ

Conventional products have no minimum order quantity. Customized products can be consulted with customer service
Delivery Time

The delivery time usually varies depending on the quantity and model of the order, usually 3-5 days. For specific times, please consult us

Frequently Asked Questions

How can I get an accurate quotation?

Please provide the product model or drawing, application, voltage and current, actuator or terminal configuration, cable requirements, expected quantity, destination market and required certifications. The more complete the information, the faster we can recommend a suitable solution and prepare an accurate quotation.
What is not covered by the warranty?

The warranty does not cover damage caused by incorrect wiring, excessive electrical load, improper installation, unauthorized modification, misuse, normal wear or operation outside the product’s specified environmental conditions. Final warranty coverage is subject to the applicable product specification and sales agreement.
What does the product warranty cover?

The warranty covers verified defects in materials or manufacturing under the specified operating and installation conditions. Depending on the case, XURUI may provide technical analysis, replacement parts, repair or product replacement in accordance with the agreed warranty terms.
What is your standard production lead time?

Lead time depends on product type, order quantity, material availability and customization requirements. Standard products generally have shorter lead times, while customized products require additional time for approval, tooling or validation. The confirmed delivery schedule will be stated in the quotation.
Which certifications and compliance documents are available?

Certifications vary by product series and target market. Applicable certificates, test reports and material compliance documents can be provided for qualified models. Please confirm the exact product number and destination market before requesting documentation.
Can you support samples and small trial orders?

Yes. We support sample orders and small trial orders for most standard products. The minimum order quantity depends on the product series, specifications and packaging requirements. Please send us the part number or application details for confirmation.
What customization services do you offer?

We provide OEM and ODM support, including actuator structures, terminals, cables, connectors, electrical ratings, housing colors, labels and packaging. Each request is reviewed for technical feasibility, tooling requirements, testing and expected order volume.
How long does custom sample development take?

Sample lead time depends on the level of customization. Changes ivolving existing components are generally faster, while new molds, special materials or additional validation require more time. A confirmed schedule will be provided after reviewing your drawings and specifications.
How are custom sample costs calculated?

Sample costs may include materials, tooling, engineering, testing and certification-related expenses. We provide a detailed quotation before development begins. Any arrangement for refunding or crediting sample fees will be stated clearly in the quotation.
How do you ensure product traceability?

Key materials, production batches, assembly records and test results are controlled through lot identification. This allows us to trace products back to relevant materials, production dates and inspection records when required.
What quality inspections are performed?

Our quality process includes incoming material inspection, in-process control, functional testing and final inspection. Product-specific checks may include operating force and travel, contact resistance, insulation resistance, dielectric strength, sealing performance, temperature rise and endurance validation.

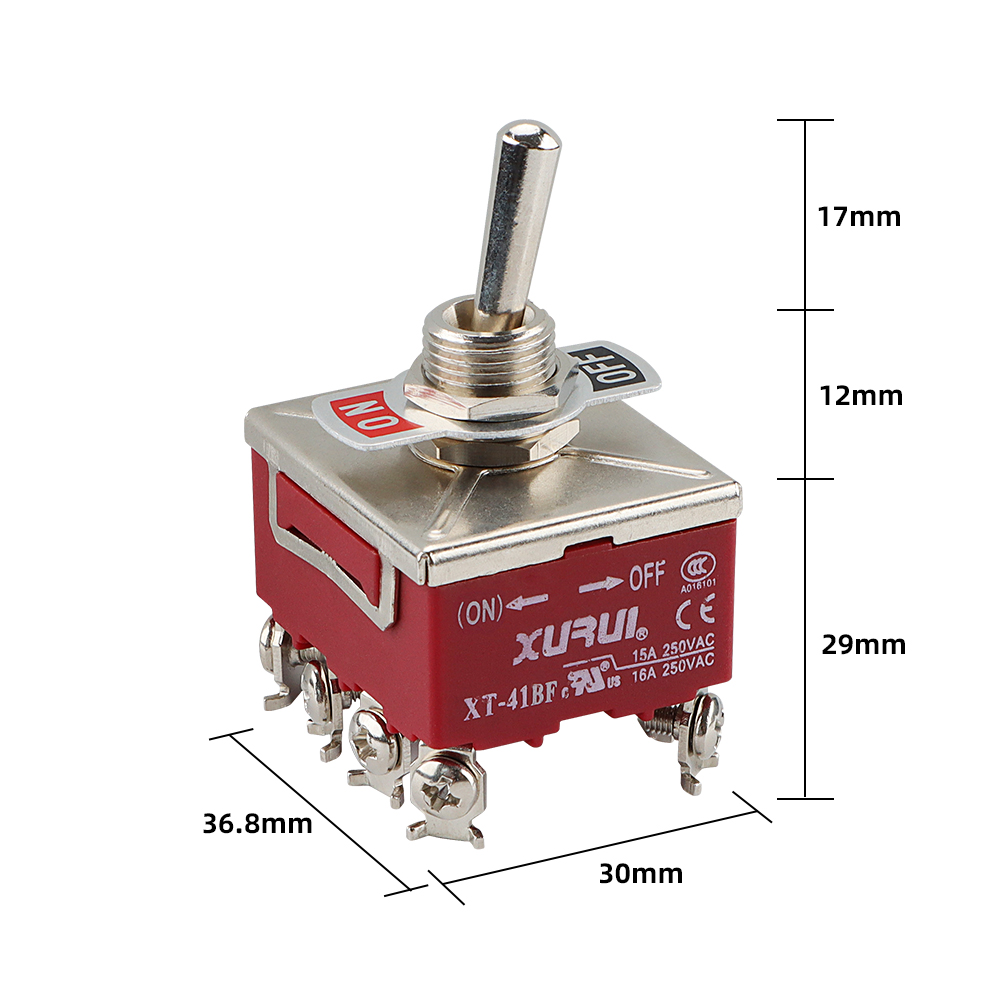

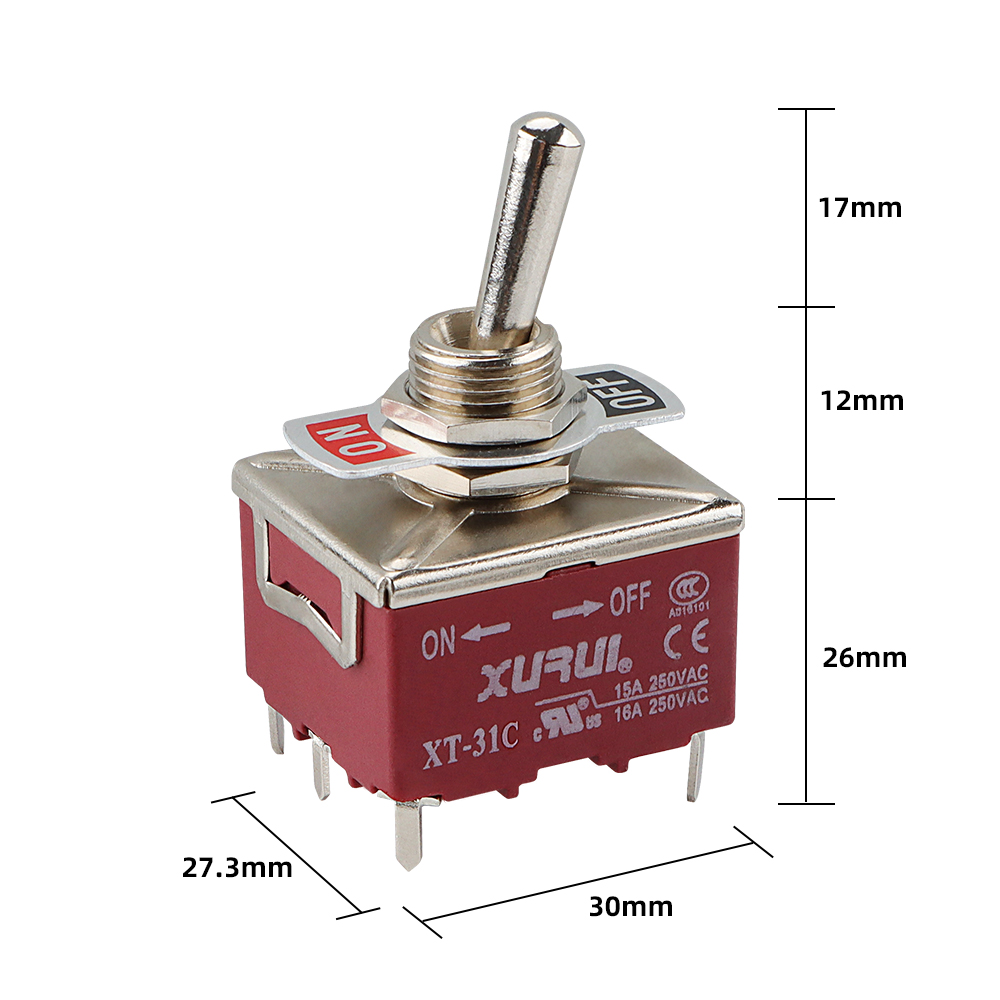

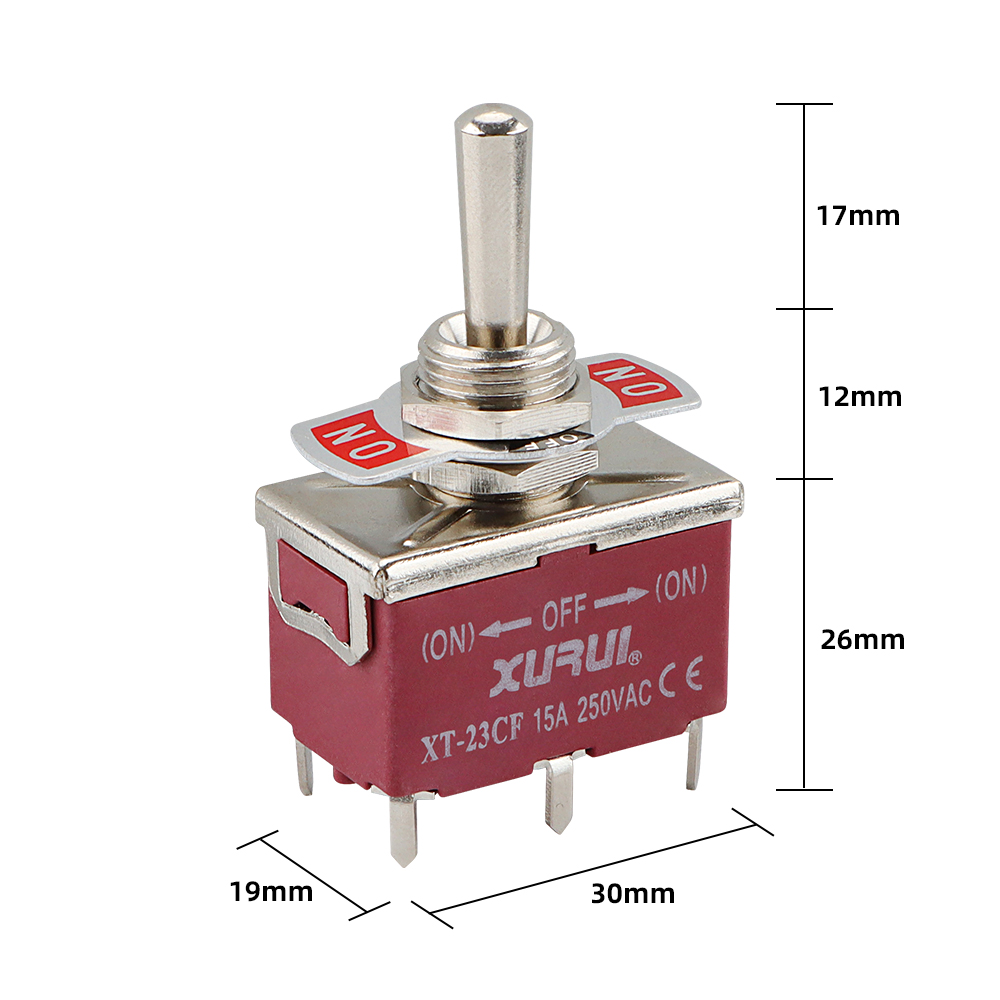

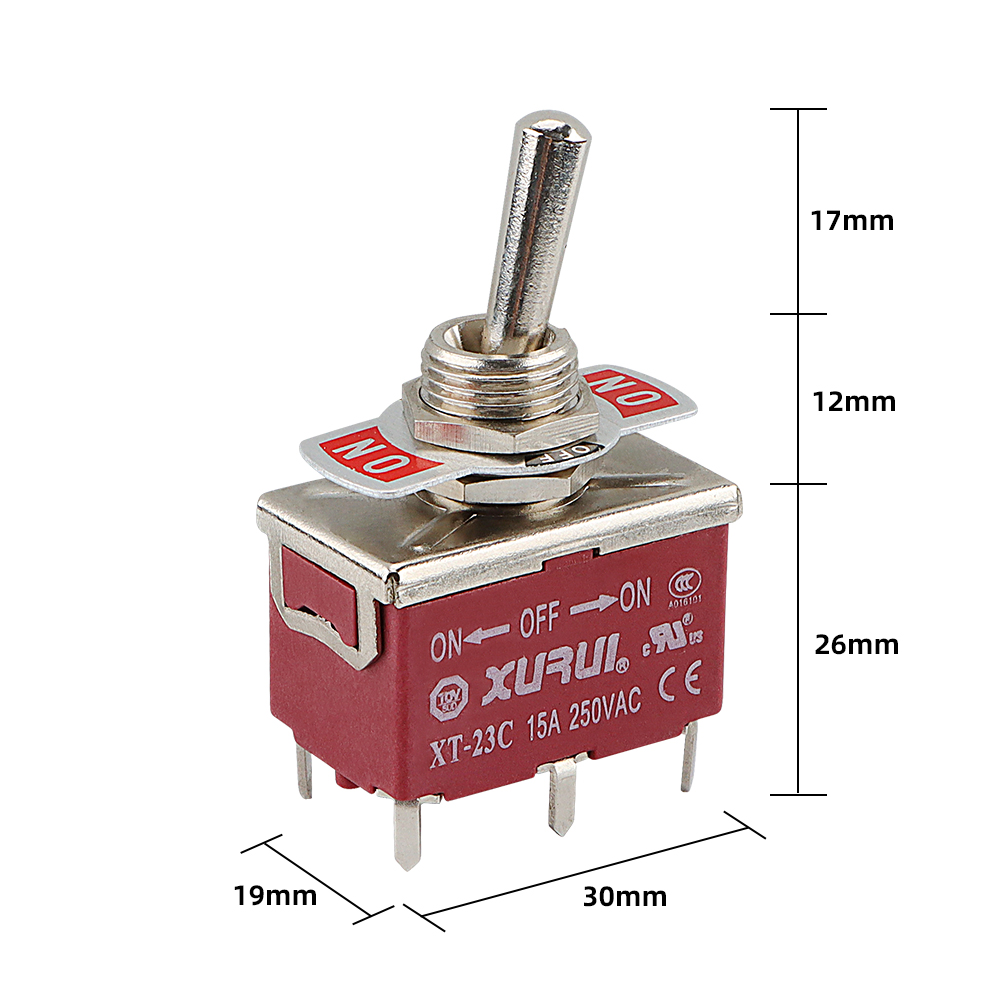

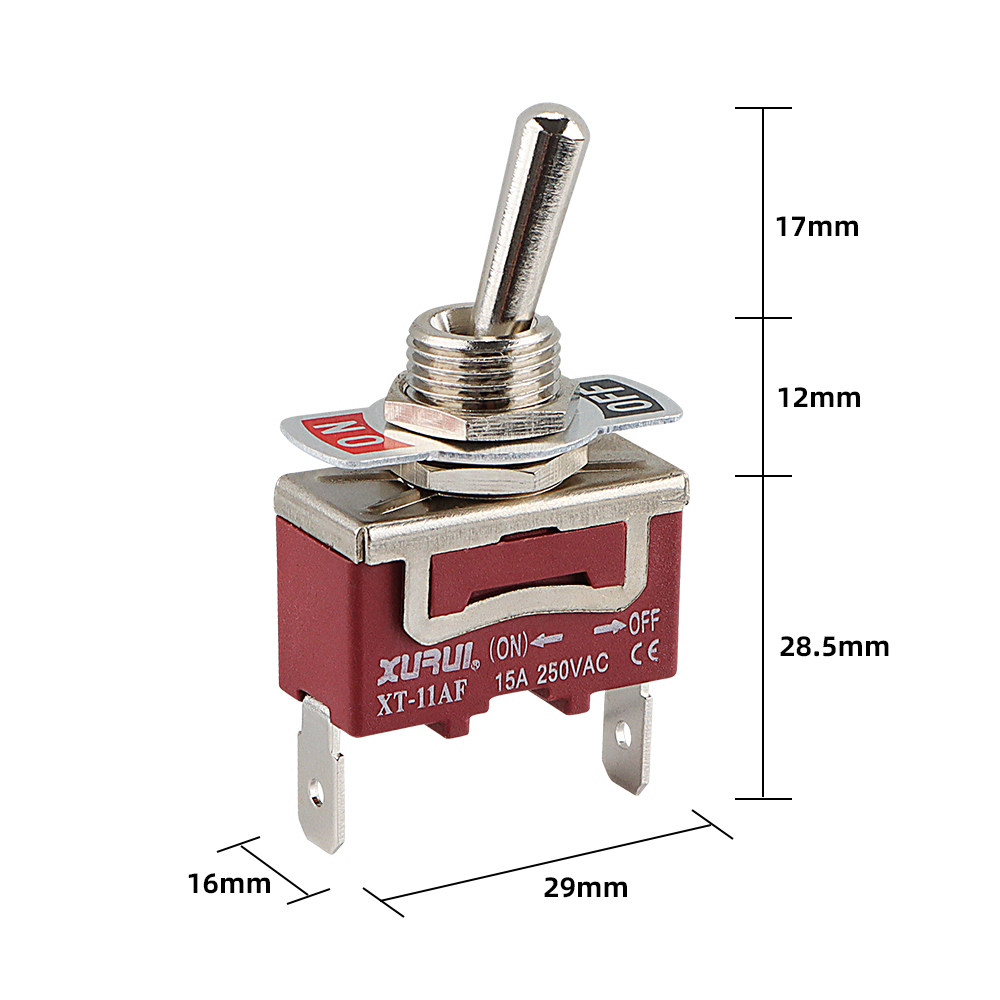

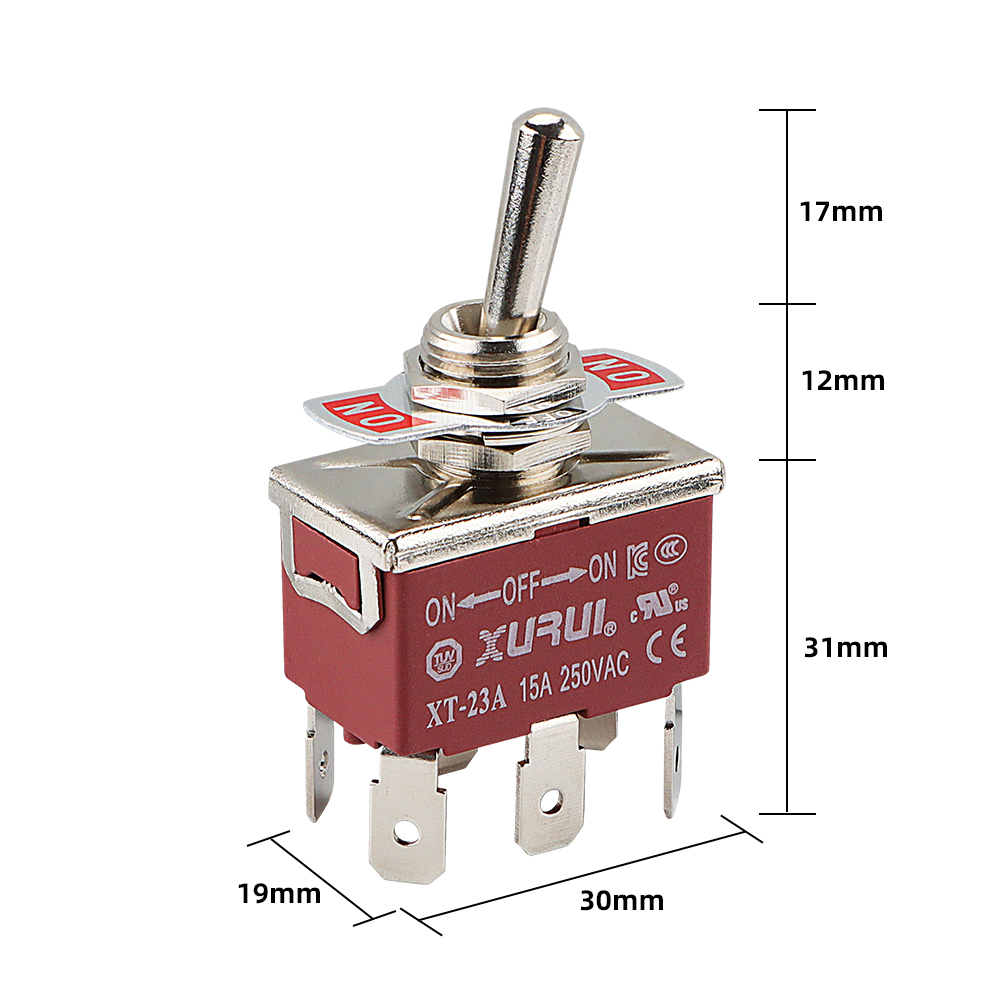

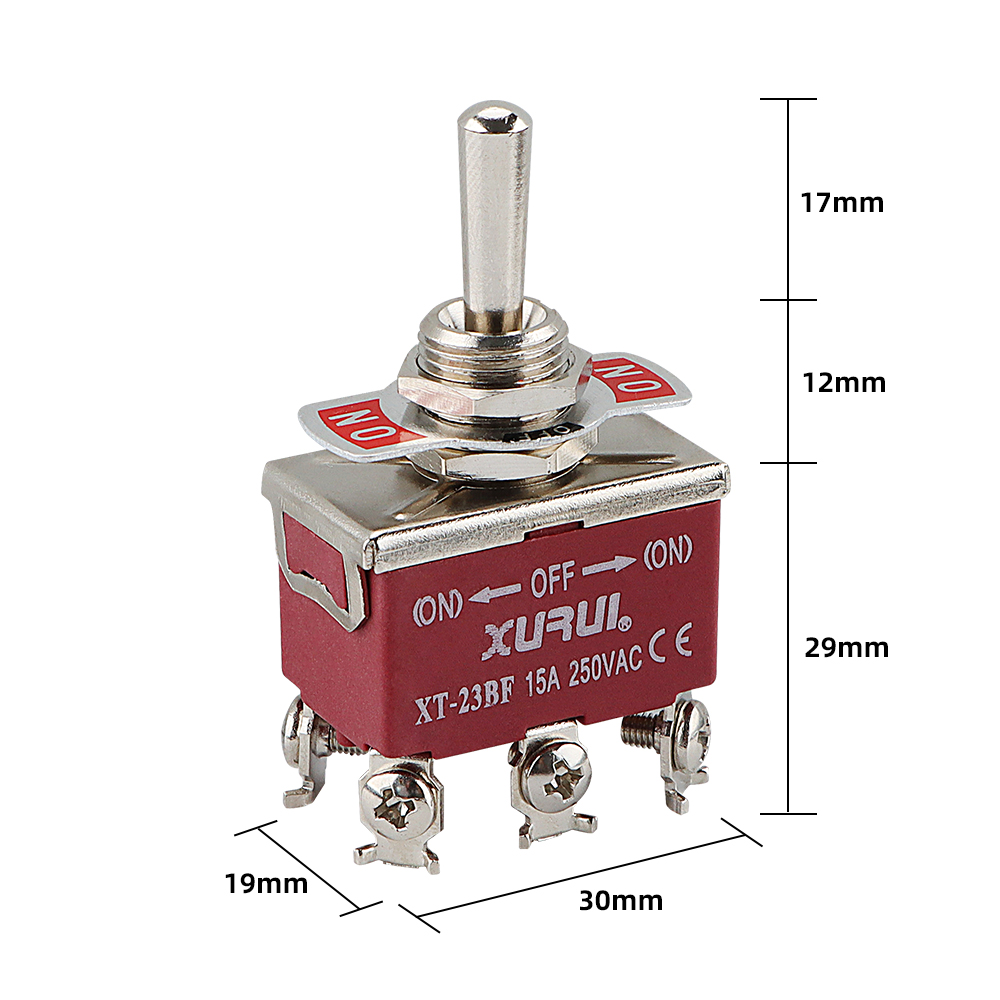

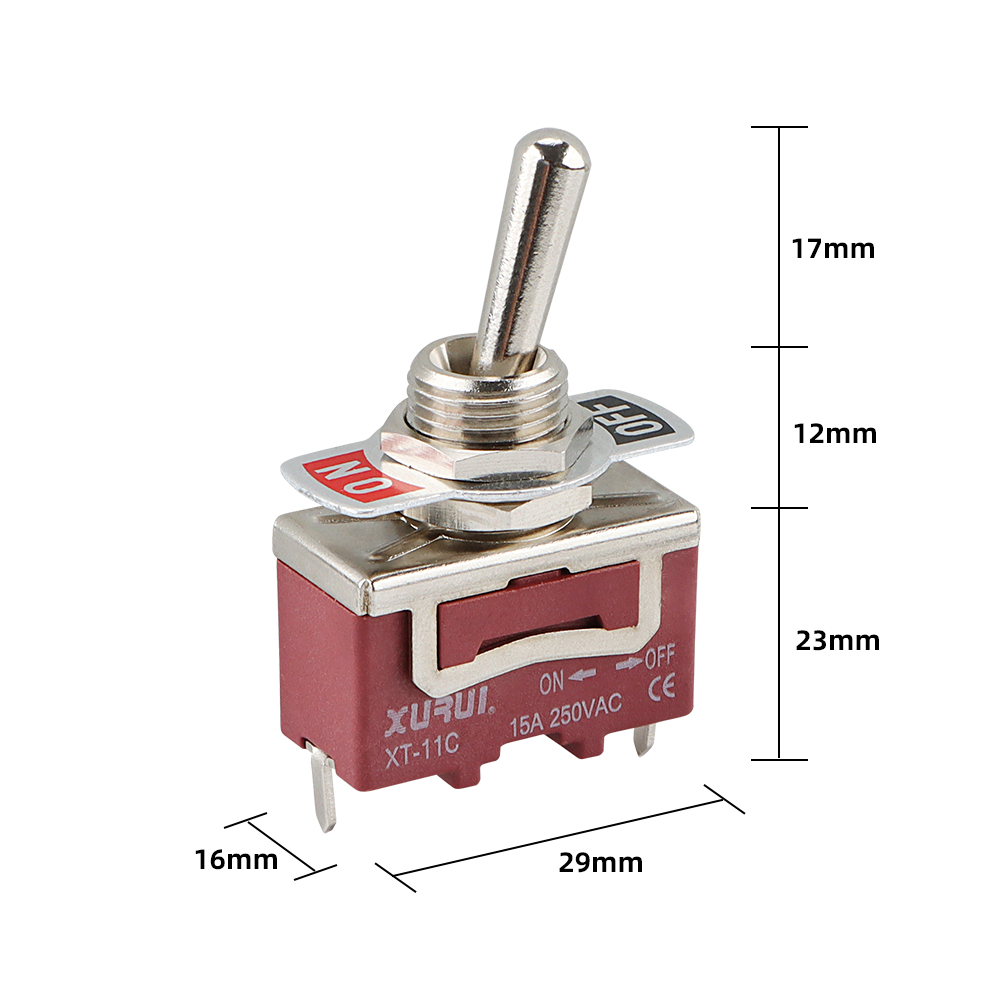

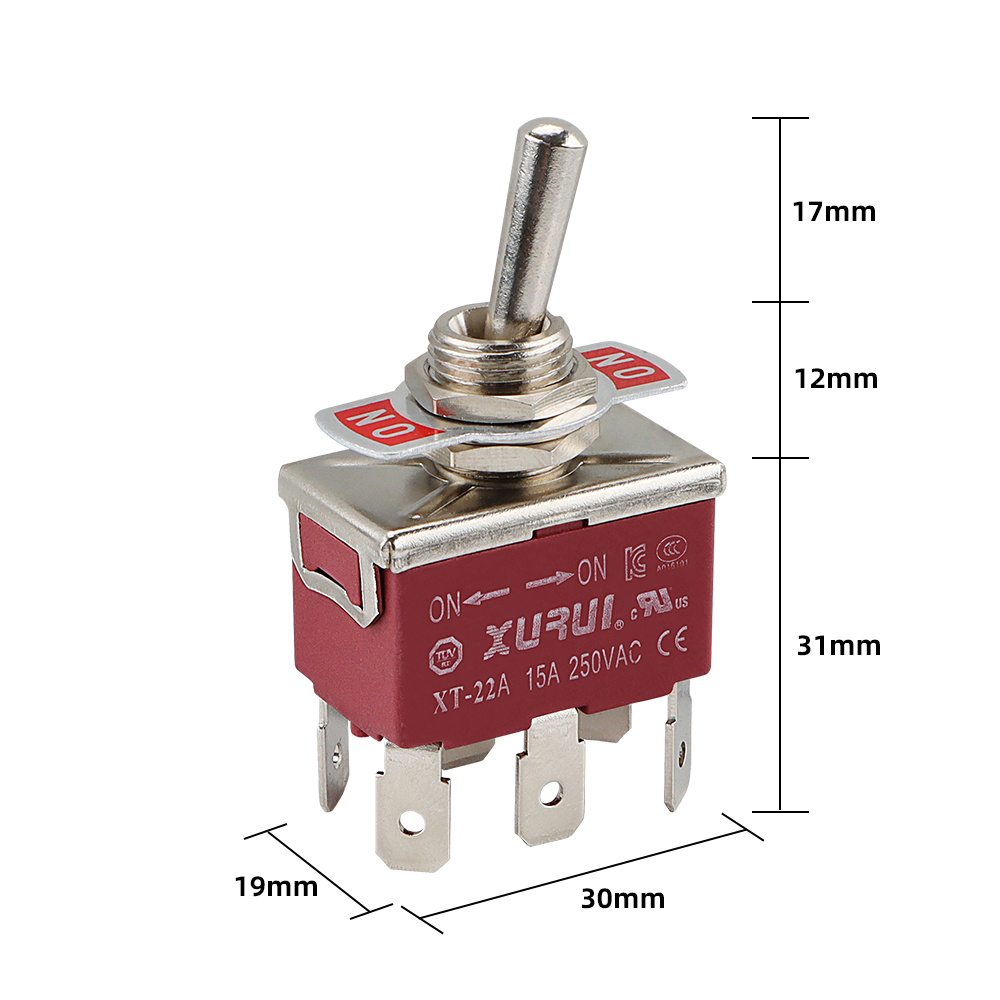

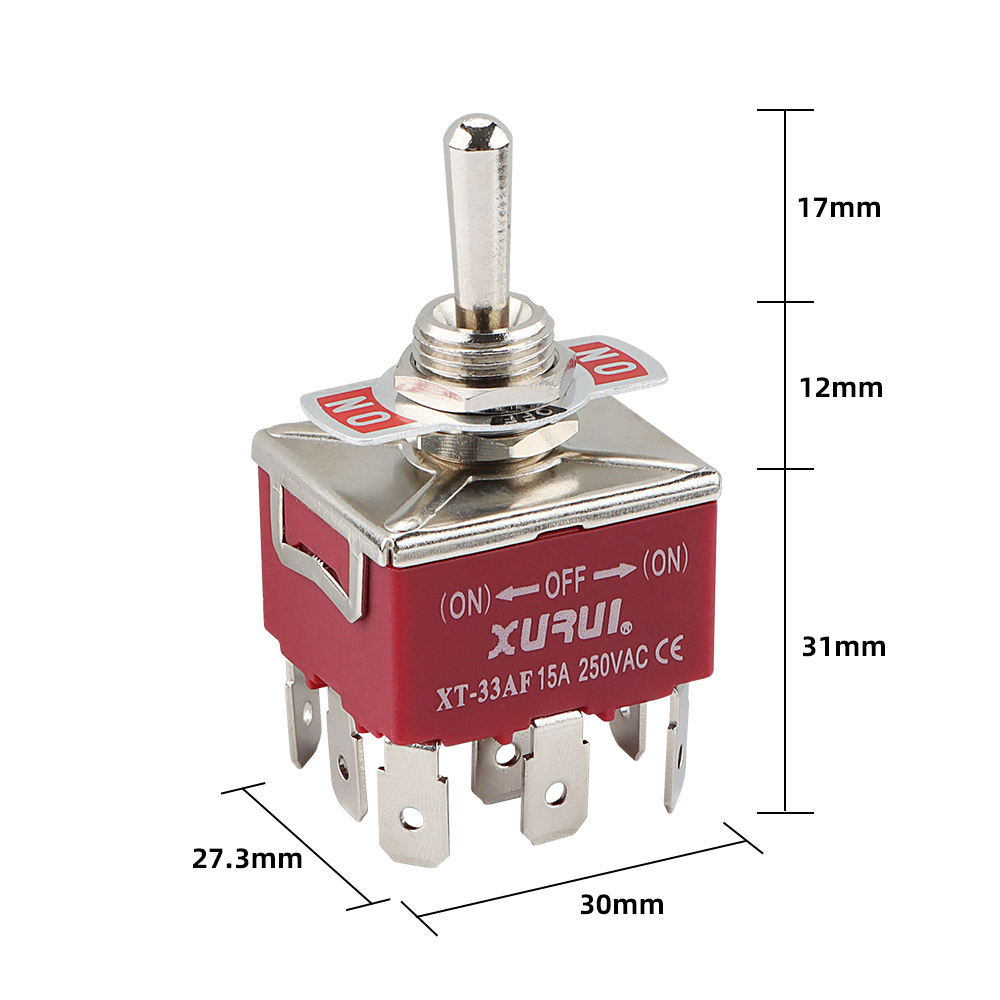

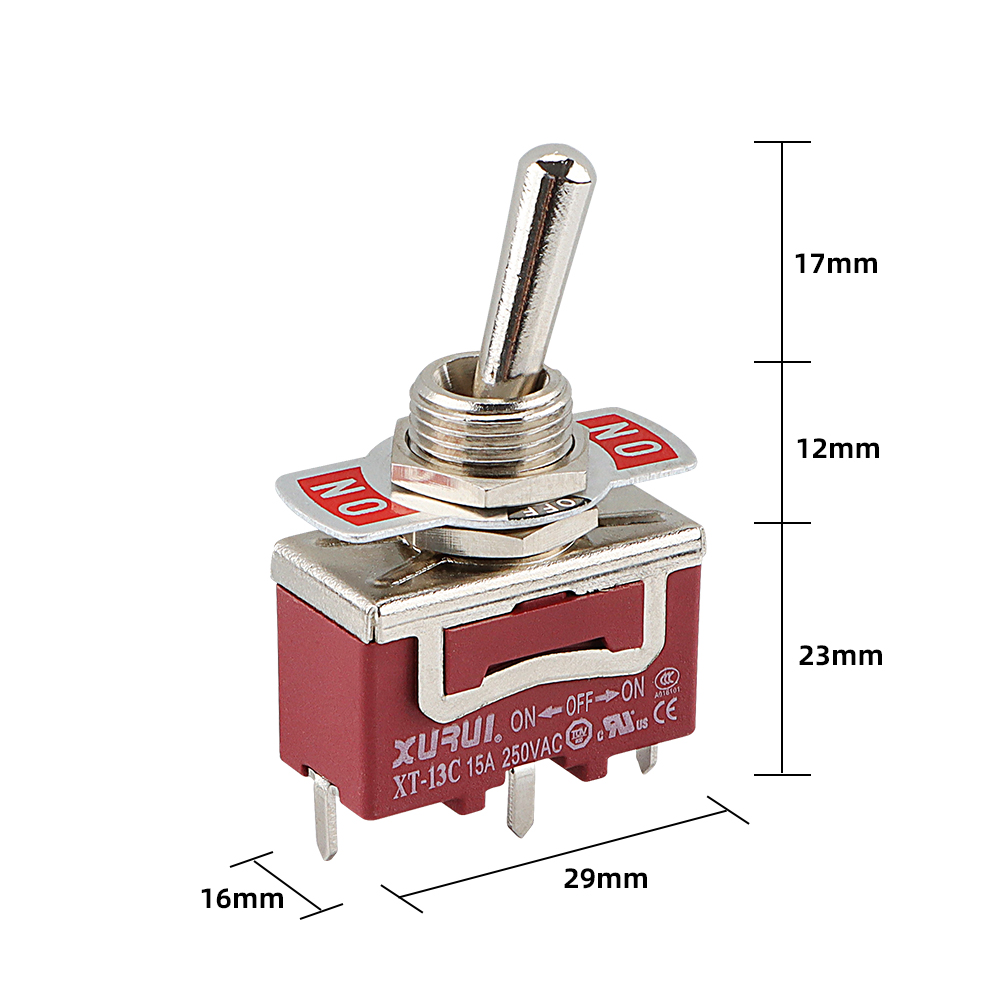

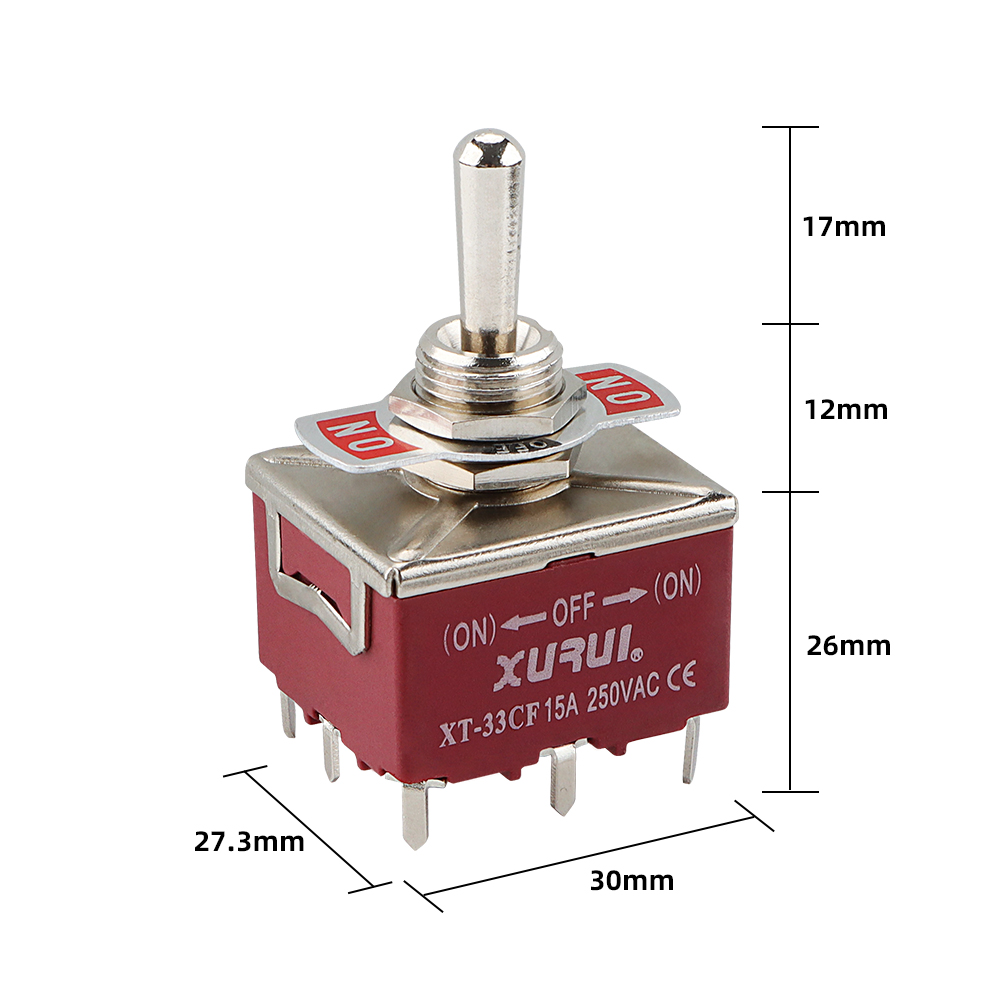

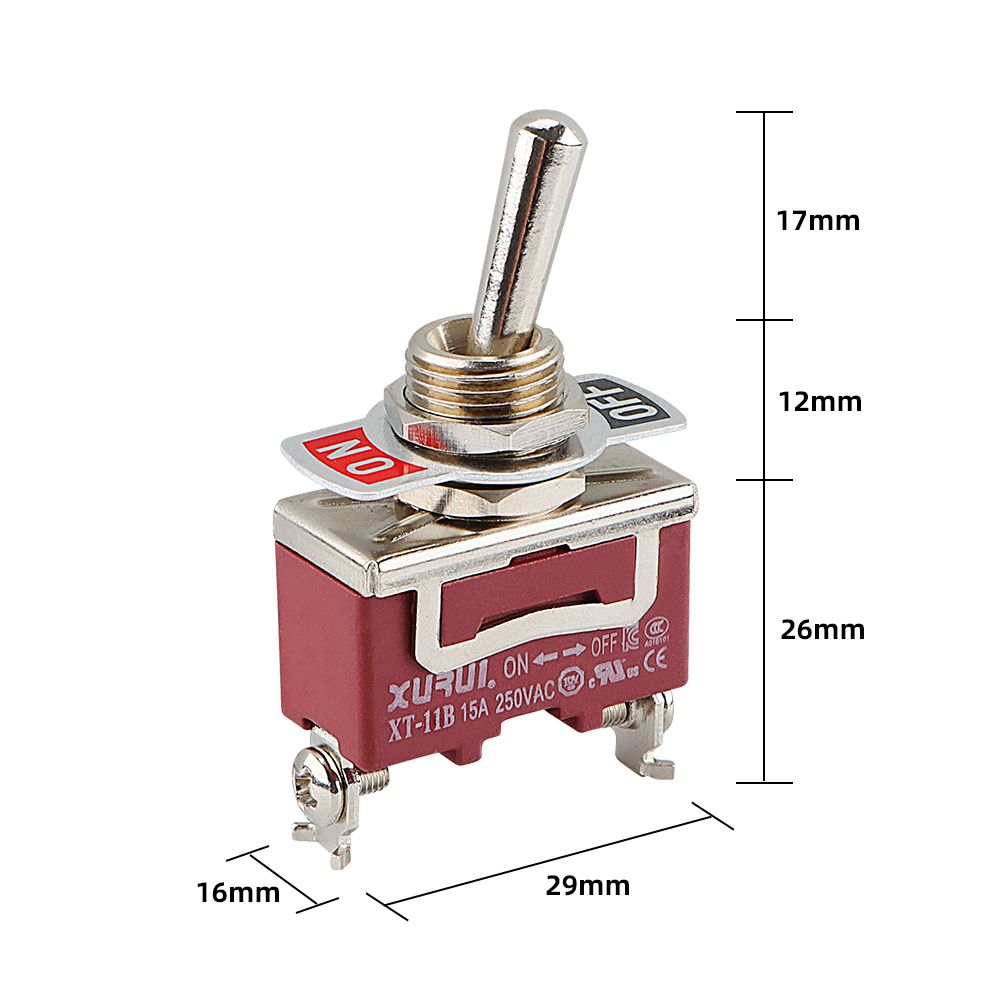

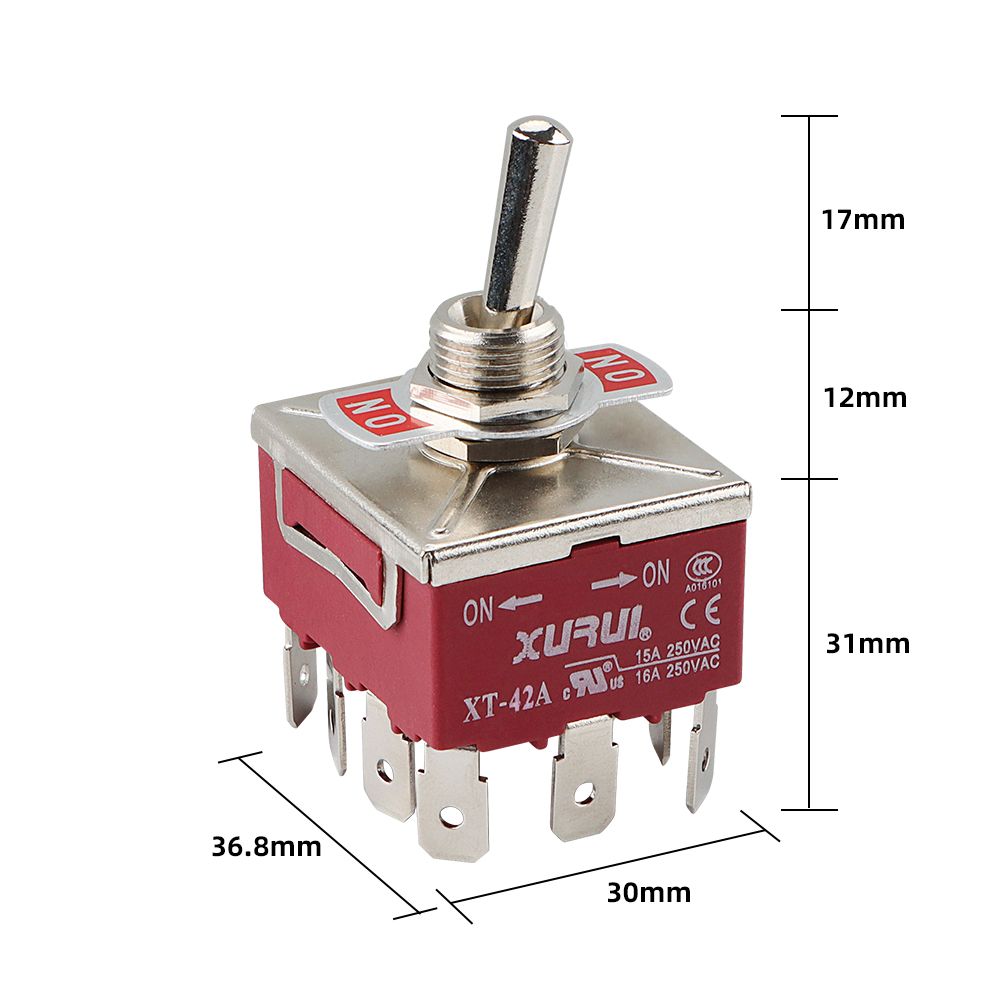

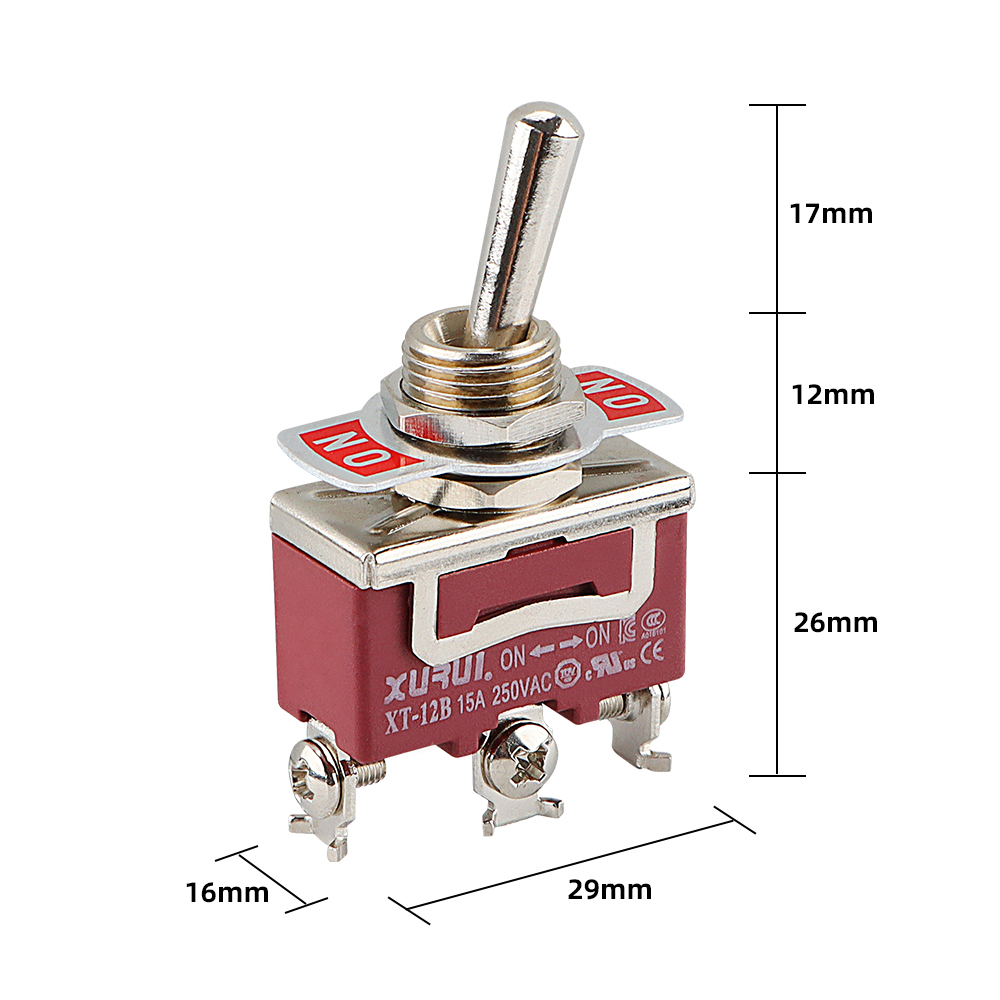

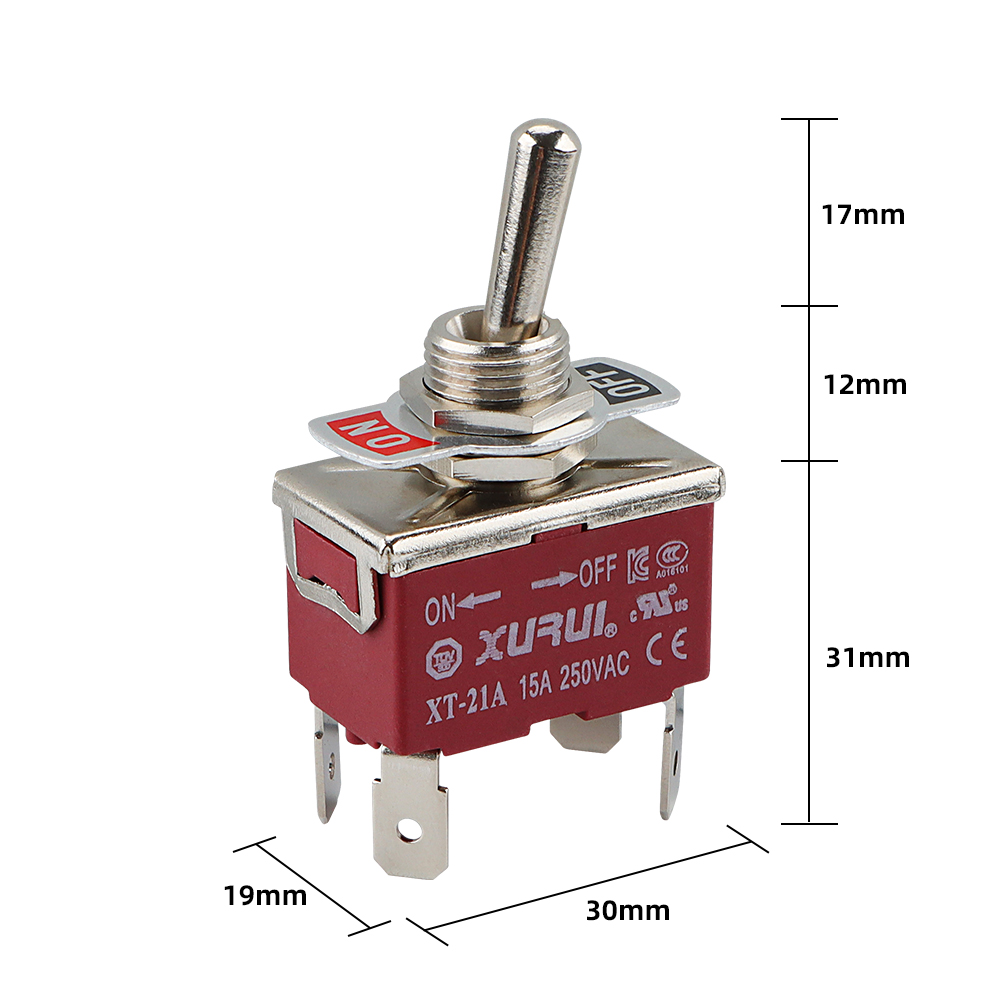

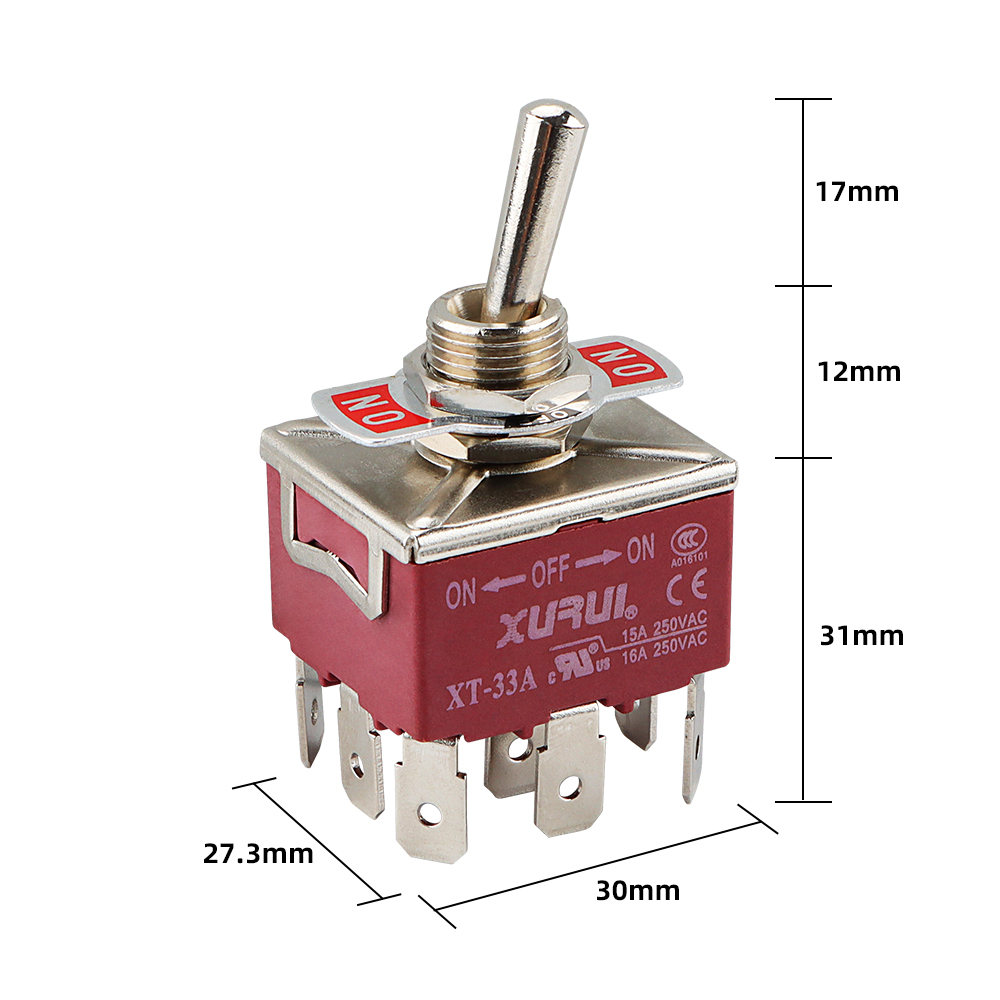

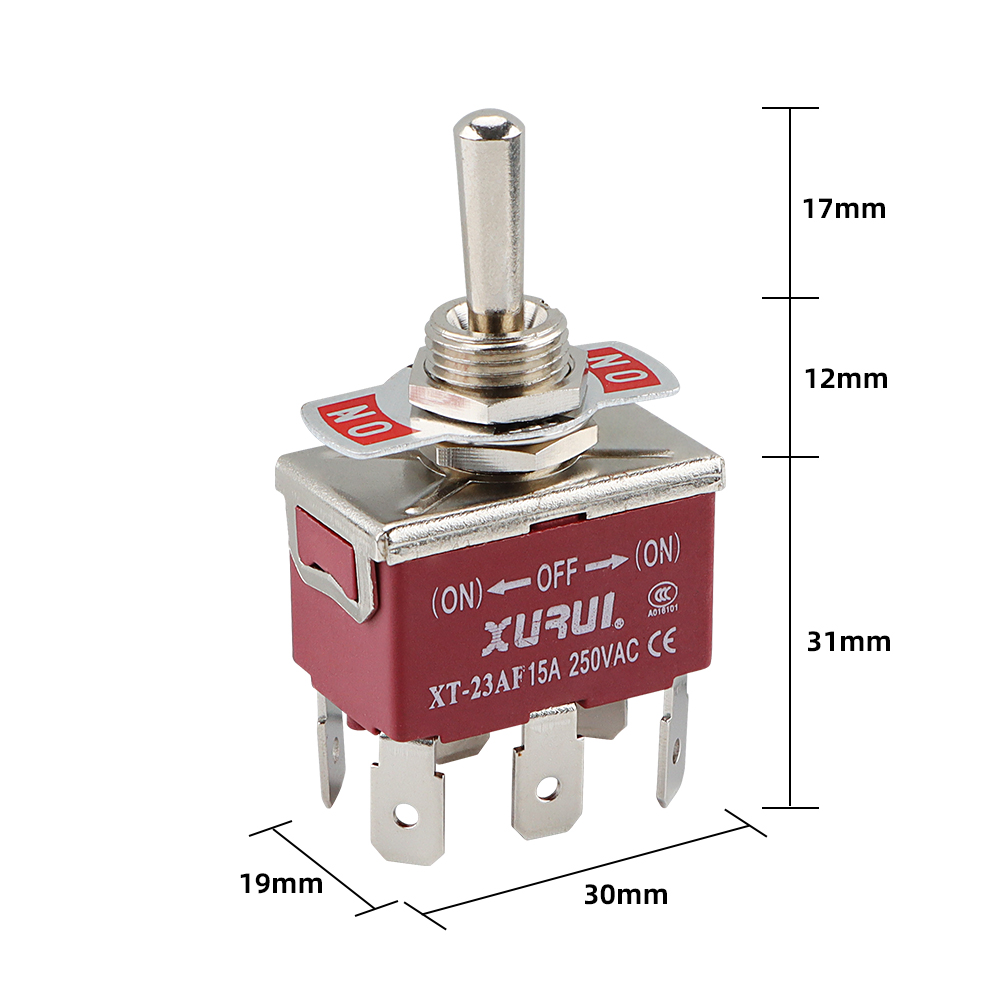

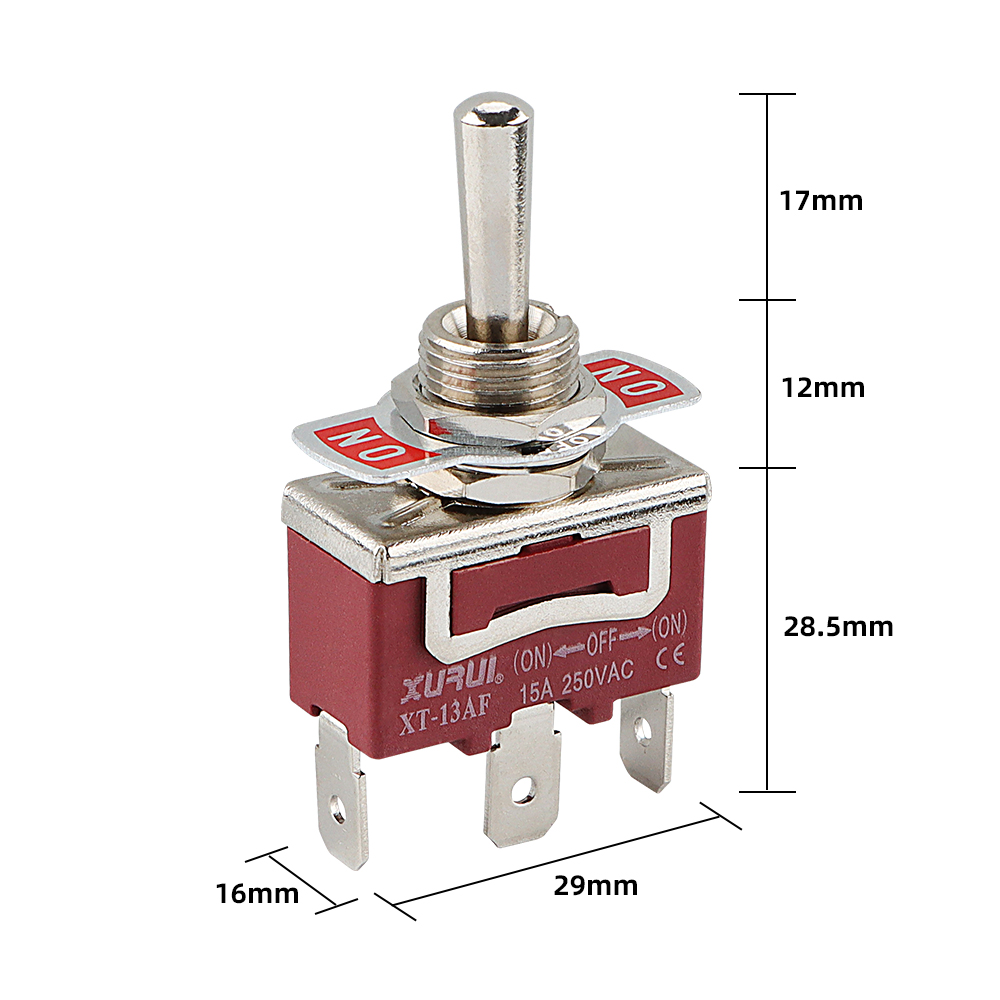

ltem		Data
Rating load		MTS:6A/125,250V
		XT:15A/250VAC,25A/250VAC
Operation frequency		30 Times/min
Insulation resistance		100MΩ Above DC500V
Contact resistance		25mΩ initial value
Withstand voltage	Non-connection wire	1000VAC
	Every terminal	1500VAC
Vibration	Misoperation	10-55Hz Amplitude 1.5mm
lmpact	Durable	1000m/s²
	Misoperation	300m/s²
Life	Electrical	100,000 Ops above
	Mechanical	500,000 Ops above
Protection degree		IP40
Operating temperature		-25~+80°C
Operating humidity		< 85%
