XGH-2Z | XURUI-Zhejiang XURUI Electronics Co., Ltd.

Reed Switch

XGH-2Z

The XGH Series Reed Switch is a compact magnetic sensing switch designed for non-contact position detection, proximity sensing, and signal switching applications. The reed contacts are hermetically sealed inside a glass tube filled with inert gas, protecting them from dust, moisture, oxidation, and other environmental contaminants.

Featuring fast response, low power consumption, excellent reliability, and long service life, the XGH Series is widely used in security systems, household appliances, communication equipment, automotive electronics, industrial automation, medical devices, measuring instruments, and magnetic sensing applications.

Available in multiple glass tube sizes, molded package designs, contact configurations, lead styles, and plating options, the XGH Series provides flexible solutions for OEM equipment requiring reliable, maintenance-free magnetic switching.

Contact Configuration : * Normally Open (1A) * Changeover (1C)

Available Sizes : * Φ2 × 10mm * Φ2 × 14mm * Φ2.5 × 14mm * Φ2.5 × 16mm * Φ2.5 × 20mm * Φ3.5 × 28mm * Φ5 × 50mm * Φ8 × 50mm * Molded Types

Contact Rating : 1VA – 30VA

Maximum Switching Voltage : Up to 220VDC

Maximum Switching Current : Up to 2A

Maximum Carry Current : Up to 4A

Insulation Resistance : ≥100MΩ

Contact Resistance : ≤150mΩ – 200mΩ

Maximum Operating Frequency : Up to 500Hz

Operating Temperature : -10°C to +85°C (Model Dependent)

Lead Style : * Round Leads * Flat Leads * Bent Leads * Molded Type

Lead Finish : * Gold-Plated Leads * Tin-Plated Leads

Get A Quote

Download

Product Features

Wide Range of Applications

Suitable for security systems, household appliances, industrial automation, communication equipment, automotive electronics, medical devices, measuring instruments, and magnetic sensing systems.
Easy System Integration

Can be easily combined with magnets, coils, and magnetic assemblies for a wide variety of sensing applications.
Long Service Life

Designed with no mechanical friction between actuator and contacts, ensuring exceptional durability and reliability.
Excellent Electrical Performance

Low contact resistance and high insulation resistance provide stable switching performance and dependable signal transmission.
Gold or Tin Plated Leads

Lead terminals are available with gold-plated or tin-plated finishes to meet different soldering processes and application environments.
Multiple Lead Styles

Supports round leads, flat leads, bent leads, and molded package configurations.
Multiple Contact Configurations

Available in Normally Open (1A) and Changeover (1C) contact forms.
Multiple Size Options

Available in various glass tube dimensions and molded package designs for different installation requirements.
Non-Contact Magnetic Actuation

Magnetic field operation eliminates mechanical wear and ensures long service life.
Fast Magnetic Switching

Provides rapid operate and release times for precise and reliable signal transmission.
Hermetically Sealed Reed Contacts

The reed contacts are enclosed in a glass tube filled with inert gas, preventing oxidation, moisture, dust, and contamination.

Product Certification

01Certification for the Chinese market

Compliant with GB national standards, with CCC and CQC certification for domestic sales and bidding compliance.
02EU Market Certification

Comply with CE, RoHS, REACH and EN standards, approved by TÜV & VDE, and support ATEX certification for explosive hazardous areas.
03North American Market Certification

UL, CUL and CSA certified, conforming to North American electrical safety specifications for US and Canada market access.
04Japanese, Korean, and Asian markets

Adapt to Japanese PSE and Korean KC certification, follow JIS and KS local standards to meet market access regulations of Japan and South Korea.

Product Introduction & Process

1

Magnetic Material Inspection

Nickel-iron alloy reed material, glass tubes, contact plating materials, protective gases, leads, epoxy compounds, cables, magnets, and sensor housings are inspected before production.

2

Reed Blade Stamping and Forming

Reed blades are precision stamped and formed from magnetic nickel-iron alloy strips. Blade dimensions, straightness, thickness, elasticity, and magnetic characteristics are strictly controlled.

3

Contact Surface Plating

The contact areas are plated with suitable contact materials, such as rhodium, ruthenium, gold, or other model-specific alloys. Plating thickness, uniformity, adhesion, and surface cleanliness are inspected.

4

Reed Alignment and Contact Gap Setting

Two reed blades are positioned inside the glass tube using precision assembly equipment. Blade overlap, alignment, and contact gap are adjusted to determine the required magnetic sensitivity and switching characteristics.

5

Protective Atmosphere Filling

The glass tube is evacuated or filled with a controlled inert gas atmosphere, depending on the product design. This process reduces contact oxidation and improves long-term switching stability.

6

Glass Sealing

Both ends of the glass tube are heated and hermetically sealed around the metal leads. Temperature, sealing time, glass shape, and thermal stress are carefully controlled to prevent cracks or leakage.

7

Annealing and Lead Forming

The sealed glass capsule undergoes controlled cooling or annealing to reduce internal stress. External leads are straightened, trimmed, bent, or formed according to the required mounting configuration.

8

Magnetic Sensitivity Calibration

The sealed glass capsule undergoes controlled cooling or annealing to reduce internal stress. External leads are straightened, trimmed, bent, or formed according to the required mounting configuration.

9

Electrical Performance Testing

Contact resistance, insulation resistance, dielectric strength, operate time, release time, contact bounce, leakage, and switching continuity are tested.

10

Hermeticity and Mechanical Inspection

The glass capsule is inspected for cracks, bubbles, deformation, sealing defects, and lead misalignment. Hermetic sealing performance is verified through the applicable leak or environmental test.

11

Sensor Module Assembly

For complete reed sensors, the glass reed switch is soldered or welded to cables or terminals and positioned inside a plastic or metal housing. The sensor may be encapsulated with epoxy resin to provide mechanical and environmental protection.

12

Magnet and Switching-Distance Verification

Complete sensor assemblies are tested with the specified magnet. Operating distance, release distance, installation direction, polarity response, and repeatability are verified.

13

Reliability Testing

Sample units undergo switching life, vibration, impact, temperature cycling, humidity, cable pull, and repeated magnetic actuation testing.

14

Final Sorting and Packaging

Products are sorted according to sensitivity, contact type, lead form, cable length, or operating distance. Fragile glass components are packed using protective trays or tubes to prevent mechanical damage.

Customization & Delivery

We support the following types of customization

Electrical Parameter Customization :

Custom voltage & current, AC/DC type, zero-cross or random trigger.
Mounting Structure Customization :

Custom mounting, terminals and non-standard dimensions.
Heat Dissipation & Protection Customization :

Custom heat dissipation, high isolation, potting and anti-corrosion protection.
Function Upgrade Customization :

Overheat/overcurrent protection, anti-interference, delay and soft start optional.
Appearance & Brand Customization

Custom logo, marking, OEM/ODM and personalized solution design.

Proofing Cycle

Regular customization: 3-7 working days
Complex Customization: 7-15 working days
Urgent Sampling: 24-72 hours
Proofing Cost ( $ )

2222 US dollars
MOQ

Conventional products have no minimum order quantity. Customized products can be consulted with customer service
Delivery Time

The delivery time usually varies depending on the quantity and model of the order, usually 3-5 days. For specific times, please consult us

Frequently Asked Questions

How can I get an accurate quotation?

Please provide the product model or drawing, application, voltage and current, actuator or terminal configuration, cable requirements, expected quantity, destination market and required certifications. The more complete the information, the faster we can recommend a suitable solution and prepare an accurate quotation.
What is not covered by the warranty?

The warranty does not cover damage caused by incorrect wiring, excessive electrical load, improper installation, unauthorized modification, misuse, normal wear or operation outside the product’s specified environmental conditions. Final warranty coverage is subject to the applicable product specification and sales agreement.
What does the product warranty cover?

The warranty covers verified defects in materials or manufacturing under the specified operating and installation conditions. Depending on the case, XURUI may provide technical analysis, replacement parts, repair or product replacement in accordance with the agreed warranty terms.
What is your standard production lead time?

Lead time depends on product type, order quantity, material availability and customization requirements. Standard products generally have shorter lead times, while customized products require additional time for approval, tooling or validation. The confirmed delivery schedule will be stated in the quotation.
Which certifications and compliance documents are available?

Certifications vary by product series and target market. Applicable certificates, test reports and material compliance documents can be provided for qualified models. Please confirm the exact product number and destination market before requesting documentation.
Can you support samples and small trial orders?

Yes. We support sample orders and small trial orders for most standard products. The minimum order quantity depends on the product series, specifications and packaging requirements. Please send us the part number or application details for confirmation.
What customization services do you offer?

We provide OEM and ODM support, including actuator structures, terminals, cables, connectors, electrical ratings, housing colors, labels and packaging. Each request is reviewed for technical feasibility, tooling requirements, testing and expected order volume.
How long does custom sample development take?

Sample lead time depends on the level of customization. Changes ivolving existing components are generally faster, while new molds, special materials or additional validation require more time. A confirmed schedule will be provided after reviewing your drawings and specifications.
How are custom sample costs calculated?

Sample costs may include materials, tooling, engineering, testing and certification-related expenses. We provide a detailed quotation before development begins. Any arrangement for refunding or crediting sample fees will be stated clearly in the quotation.
How do you ensure product traceability?

Key materials, production batches, assembly records and test results are controlled through lot identification. This allows us to trace products back to relevant materials, production dates and inspection records when required.
What quality inspections are performed?

Our quality process includes incoming material inspection, in-process control, functional testing and final inspection. Product-specific checks may include operating force and travel, contact resistance, insulation resistance, dielectric strength, sealing performance, temperature rise and endurance validation.

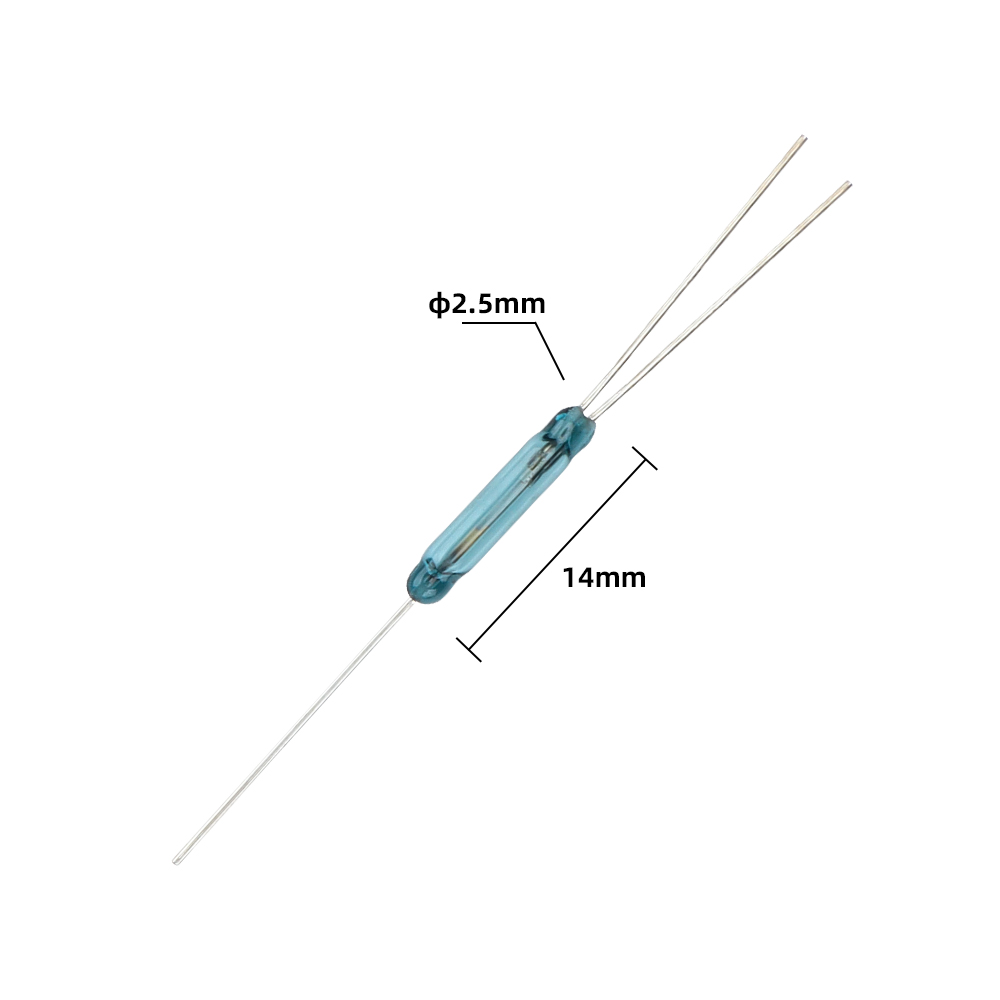

Dimensions	Ф2.5 x 14mm
Contact Type	1C
Contact Rating	1.0VA
Pull in Value(Pl)	7-25AT
Drop Out Value(DO)	≥5AT
Contact Resistance	≤200m Ω
breakover Voltage	≥100V DC
Insulation Resistance	≥100m Ω
Electrostatic Capacitance	0.2pF
Maximum Switching Voltage	24V DC
Maximum Switching Current	0.05A
Maximum Carry Current	0.1A
Operate Time	≤0.6mS
Bounce Time	≤0.4ms
Release Time	≤0.1ms
Maximum Operating Frequency	100Hz
OperatingTemperature	-10-60°C
