Micro Switch XSS-5T XSS-5GL14T
● Adopt thermosetting plastic or thermoplastic;
● Small contact gap,snap action,high sensitivity and small operating travel;
● Variety of levers;
● Widely used in appliance,electronic equipment,automatic machine,communication equipment,car electric,apparatus and instrument,electro motion tool etc.
◆ Model & Meanings
◆Contact Forms
◆Product Structure
◆Specification
| Item | Data | |
| Rating load | 5A 125VAC/250VAC | |
| Operating speed | 0.1mm-1m/s | |
| Operating frequency | Mechanical | 60times/min |
| Electrical | 20times/min | |
| Insulation resistance | 100MΩ(Above)DC500V | |
| Contact resistance | 30MΩ(initial value) | |
| Withstand voltage | Non-connection wire | 1000VAC |
| Every terminal | 1500VAC | |
| Vibration | Misoperation | 10-55Hz Amplitude 1.5mm |
| Impact | Durable | 1000m/s2 |
| Misoperation | 300m/s2 | |
| Life | Electrical | 100,000above |
| Mechanical | 1,000,000above | |
| Protection degree | IP40 | |
| Operating temperature | -25~+80℃ | |
| Operating humidity | ＜85% | |

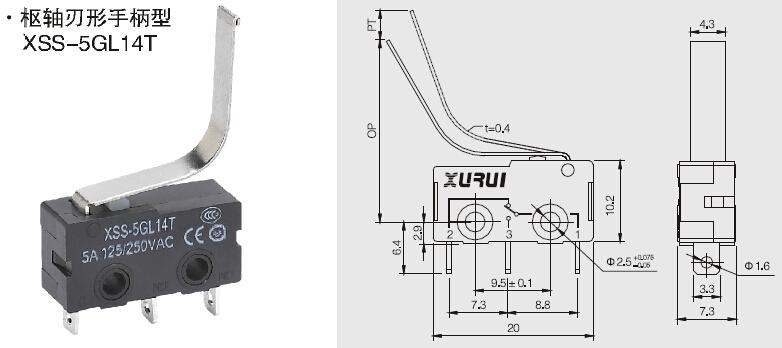

◆Dimensions/Operating Characteristics
| OF max. | 70g(0.7N) |
| RF min. | 10g(0.1N) |
| PT max. | 2.8mm |
| OT min. | 0.8mm |
| MD max. | 0.8mm |
| OP | 22.8±1mm |
