Foot Switch XF-1D
● Kinds of shell’s material for choice,such as engineering plastic,steel panel,aluminium alloy,etc;
● Metal shell use the stregenthening to reast the surfase,bears the impact,the wearability,thermostable;
● Cable lock-in jacket is made for the cable coming out and it is waterproof,grease proofing;
● Switch bottom is equipped with the rubber pad,for skidproof;
● Widely used for control in industrial automation equipments,transport,pressing,medical treatment,test and etc.
◆ Model & Meanings
◆Basic parameters
| Contact resistance | 25mΩ(initial value) |
| Insulation resistance | 100MΩ(Above)DC500V |
| Withstand voltage | ≥2000VAC |
| Mechanical Life | 1,000,000above |
| Electrical Life | 100,000above |
| Operating temperature | -20~+70℃ |
| Operating Humidity | ≤85% |
◆Contact Forms
◆Application attentions
● According to the difference of load and current value,rated load should be taken note.Current value of this serise is 10A and 15A;
● When transporting and moving,pls take note of the short circuit or open circuit may happen in internal wiring;
● Please take note of the level of protection when used in water,oil and bug dust.This series has protective type and unprotective type;
● The immediate cause for broken is stress and attack,please pay attention;
● Warning mark’Danger! High Voltage!’ and ’Take note!’ remind us pay attention to personnel safety and correctly operation.

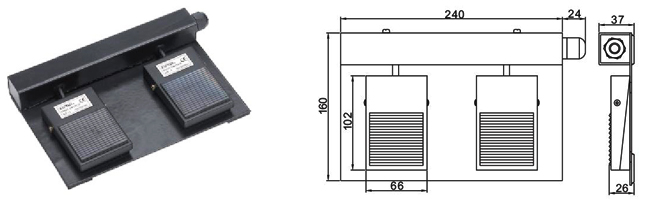

◆Dimensions/Specification
| Material | Steel |
| Inner Switch | XV-15-1C25 |
| Rating Load | 10A/250VAC |
| Contact Form | 1A×2 |
| Outgoing Cable | 0.5mm2×4(Wire)×0.25m |
| Protection Degree | IP54 |
